NEW Product 7 inch IIC/USB CTP Touch Screen Panel

Short Description:

  • Min.Order Quantity: 1 Piece/Pieces ( just for sample order )
  • Supply chain: at least 3~5 years
  • Payments: VISA,Pay Latre,L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal/cash payments etc.
  • Shipping: Support Express/Sea freight/Land freight/Air freight
  • Customization: Customized Shape/logo/packaging, etc
  • Product Detail

    Product Tags

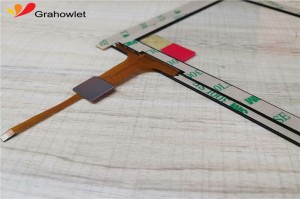

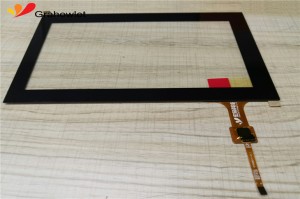

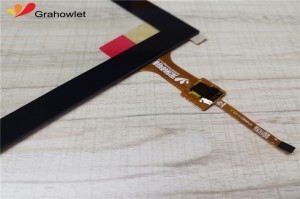

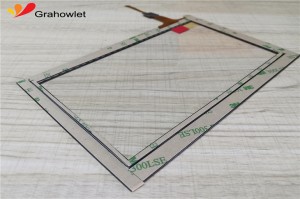

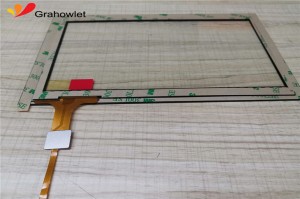

    7 inch capacitive touch screen panel with cypress touch controller ic can support glove function, water-based function and thick cover function, mainly used in outdoor equipment, pure industrial equipment, medical equipment and smart home appliances equipment, can support depth customization, including structural parts and surface special treatment;

    This 7-inch capacitive touch screen panel product is a standard product launched by our company for customers in the industrial field. It can support some special functions and has excellent anti-interference performance. It has black screen printing around and the interface is IIC. It can also directly export the USB interface through the IIC----USB board to achieve free drive, saving the early development cycle.It can basically match the 800*480/1024*600 resolution display products of various brands.which can be compatible with various common Operation systems, it can be equipped with drive board and cable, which is more suitable for flat assemble module structure installation products.

    Model NumberHX0701837
    Size7.0 inch
    Interface TypeIIC/USB
    Controller ICCypress
    Touch Points10 points
    Surface Hardness≥6H
    Operating Environment-20℃ ~ 70℃,≤85% RH
    Storage Environment-30℃ ~ 80℃,≤85% RH
    Power Supply Voltage2.8V ~ 3.3V

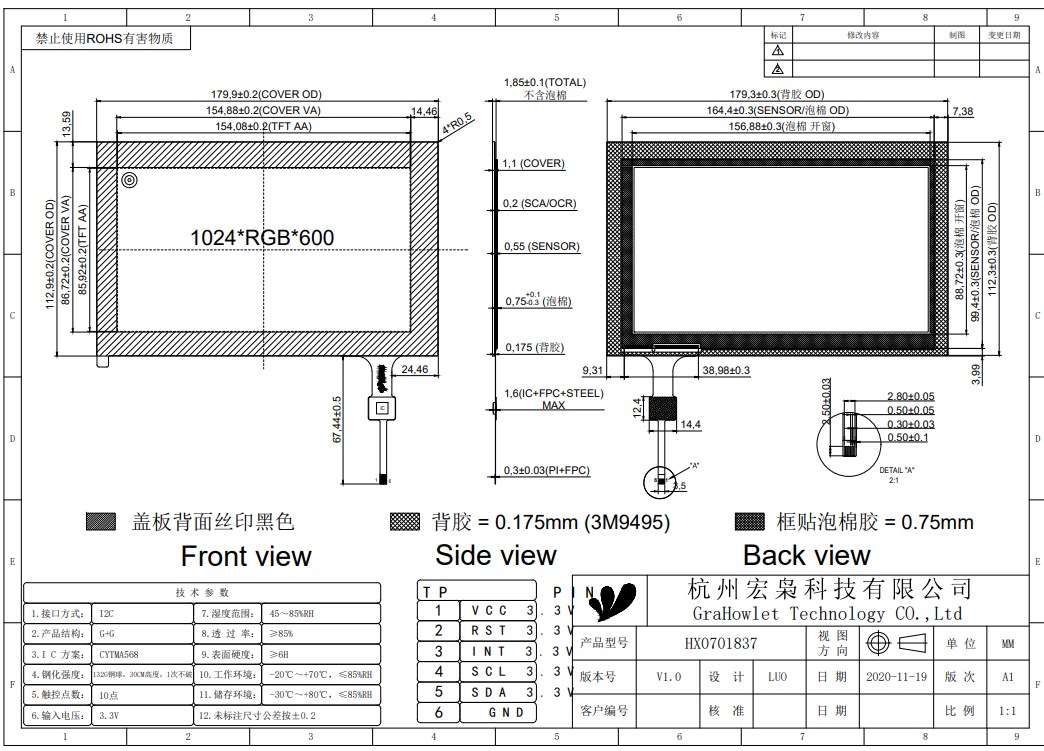

    Outline Dimension179.90(W)x112.90(H)x1.85(D) mm
    Viewing Area154.88(W)x86.72(H) mm
    Support SystemsWindows/Android/Linux etc.
    Warranty1 year


    Our Service

    programe evsluation
    1 to 2 morking days
    2 to 3 working days
    Customized products
    3 to 4 weeks(after drawings confirmed)
    Mass Production delivery
    4.3 to 5 weeks
    Software debugging
    100K per month(10.1 inches as a reference)
    Process capability
    G+G/G+F+F/G+F/P+F Structure,shielding process, overall module joint process(Optical Bonding/Air Bonding) ,Cover glass surface treatment AR, AG, AF etc
    Technical support
    Engineers to provide door-to-door or remote access service within 24 hours
    Stable supply chain for at least 3~5 years guarantee
    One year warranty time for all of our products
