Custom Ability
For example the thickness,color,screen-printing,company logo and shape etc
Touch Sensor
For example the material,dimension,shape and thickness etc.
FPC of PCAP touch
Like its position,shape and color options...
TFT/LCD display
Like its brightness,interface,and working temperature
PCAP/CTP/Capacitive touch IC solution options
Including Cypress,Ilitek,Atmel,EETI,Goodix and FocalTech
PCBs
Can be produced accoridng to your design,or we will design for you according to your actual requirements
Cables
Like the length,type and color
Installation Metal Frame
We could design and produce it according to your installation method

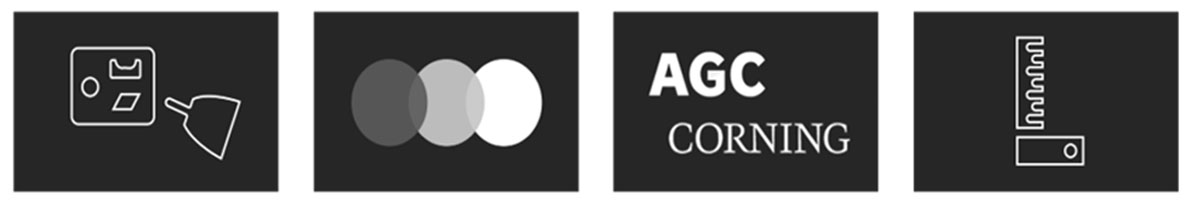

Cover Glass
shape
Support for special-cut, drill hole(minimum aperture 0.8 mm)
Color
Different colors of silkprint and LOGO screen print(UV-proof ink optional)
Brand
Options: AGC,Corning, CG etc.
Thickness
Thickness option: 0.55， 0.7，1.0，1.1，1.8，2.0，3.0，4.0 ，5.0，6.0mm etc.

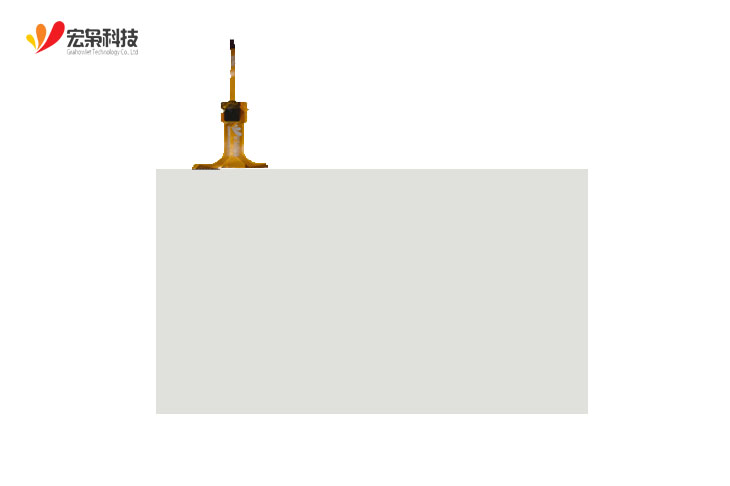

Sensor Features
Materials:Glass,fiilm,film+film
Thickness:0.005mm,0.125mm,0.4mm,0.55mm,0.7mm,1.1mm
FPC:shape design optional
IC:Cypress,Ilitek,Atmel,Focaltech,Goodix,EETI,etc
Interface:IIC,USB,SPI,RS232
Display
Partners: BOE, AUO, LNNOLux, TianMa, IVO, etc.
Category: TFT-LCD, OLED
Optical Bonding:OCA,OCR
Frame Adhension
Reference
PCAP/CTP/TP/capacitive
touchscreen and cover glass without touch sensor Black boarder width and color can be tailored as per your require Thickness with 0.55, 0.7, 1.0, 1.1, 1.8, 2.0, 3.0, 4.0mm(up to 20mm). Can up to IK10 impact resistance grade,guaranteeing durability and protection against high-energy impact

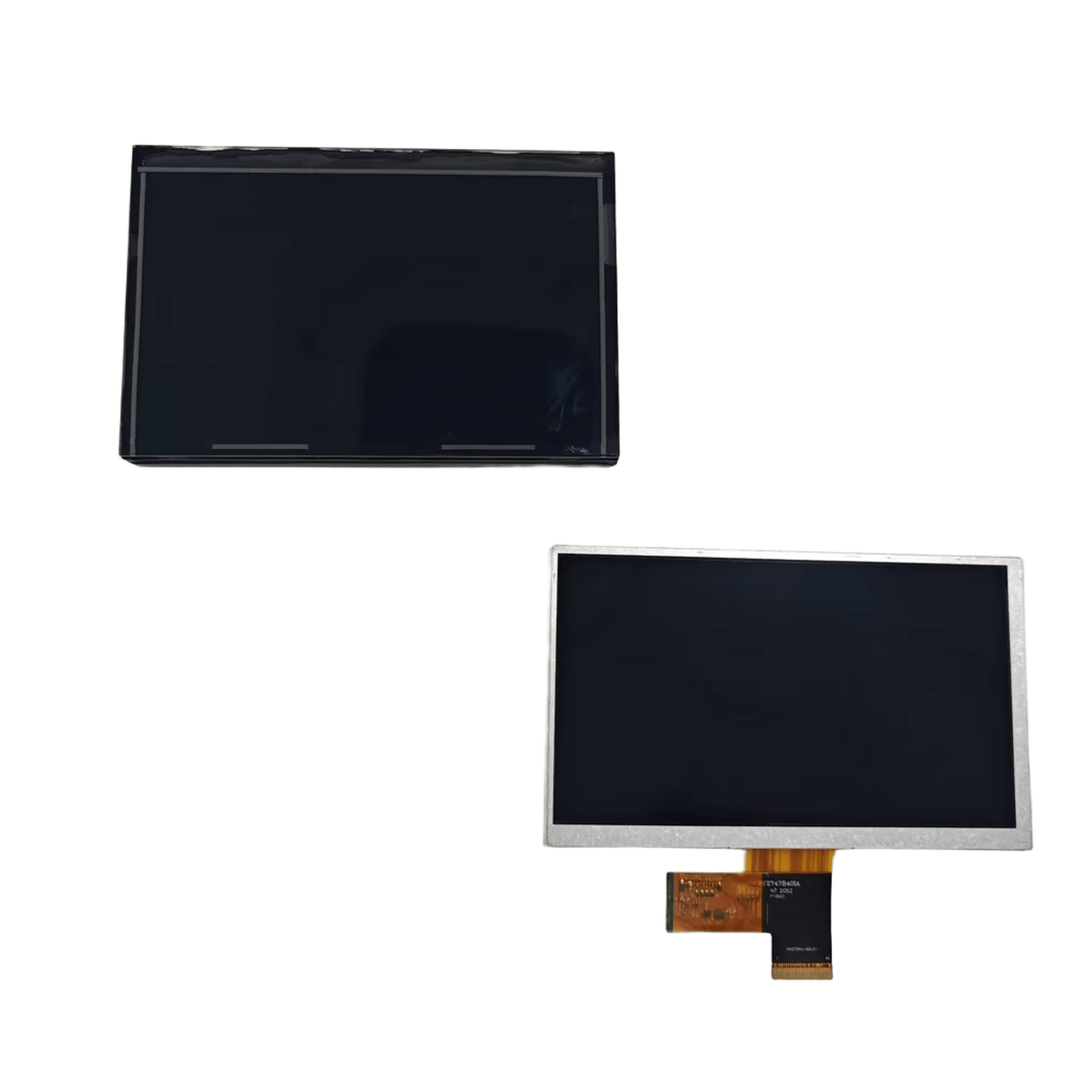

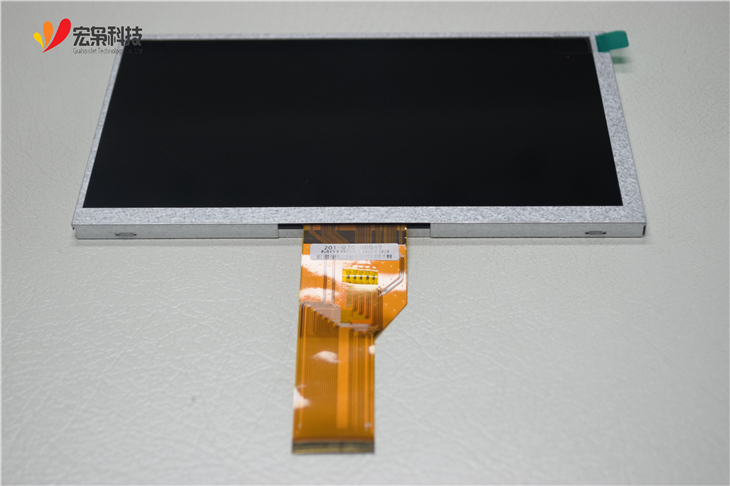

TFT/LCD display
Brand including BOE,Innolux,AUO,IVO..... Display resolution,Interface/port,Brightness and Working temperature can be customized according to the need of your application.

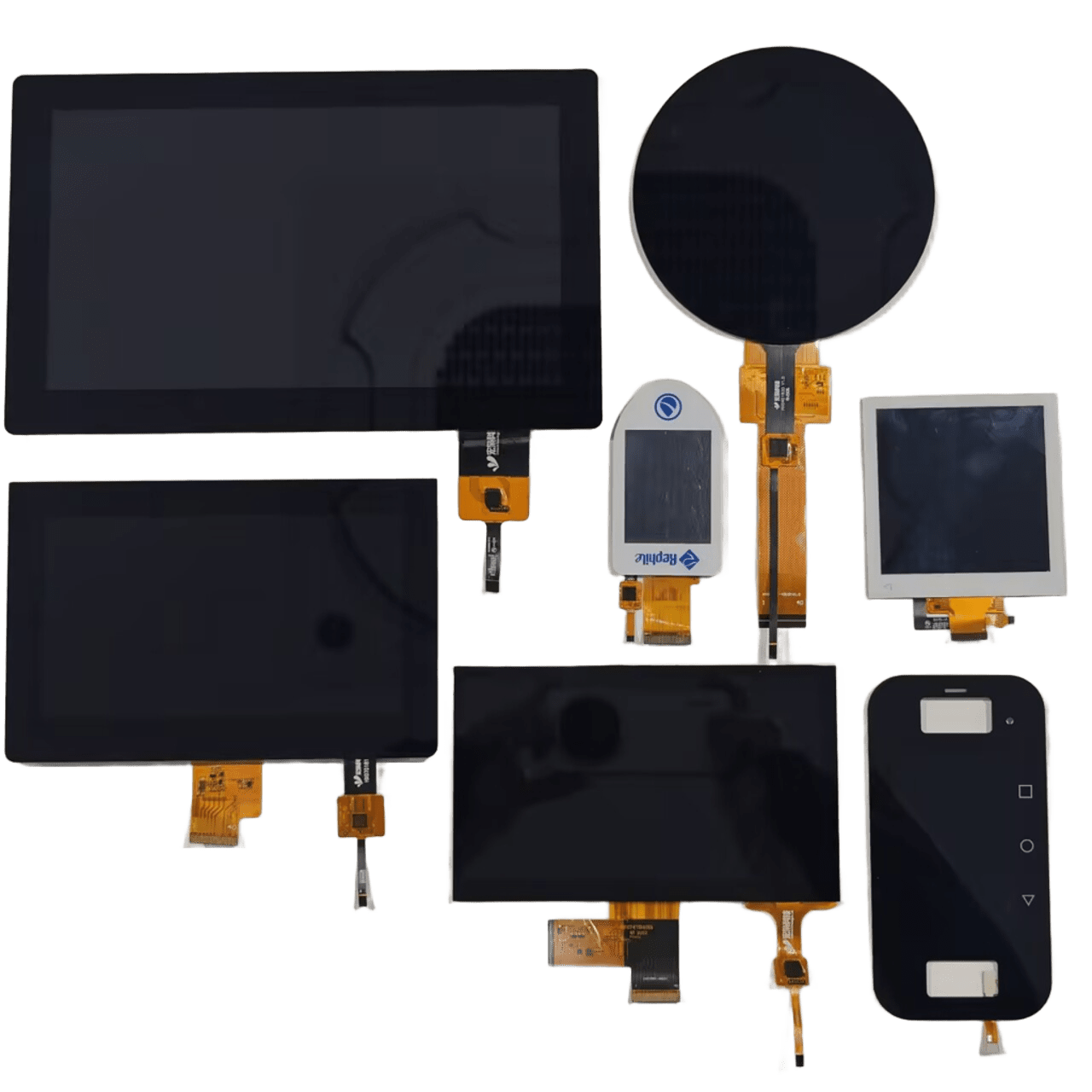

PCAP touch display module/HMI/Display monitor
The capacitive touch and lcd display are well laminated Airbonding and Optical bonding(OCA or OCR) options Directly glass+TFT laminated be achievable

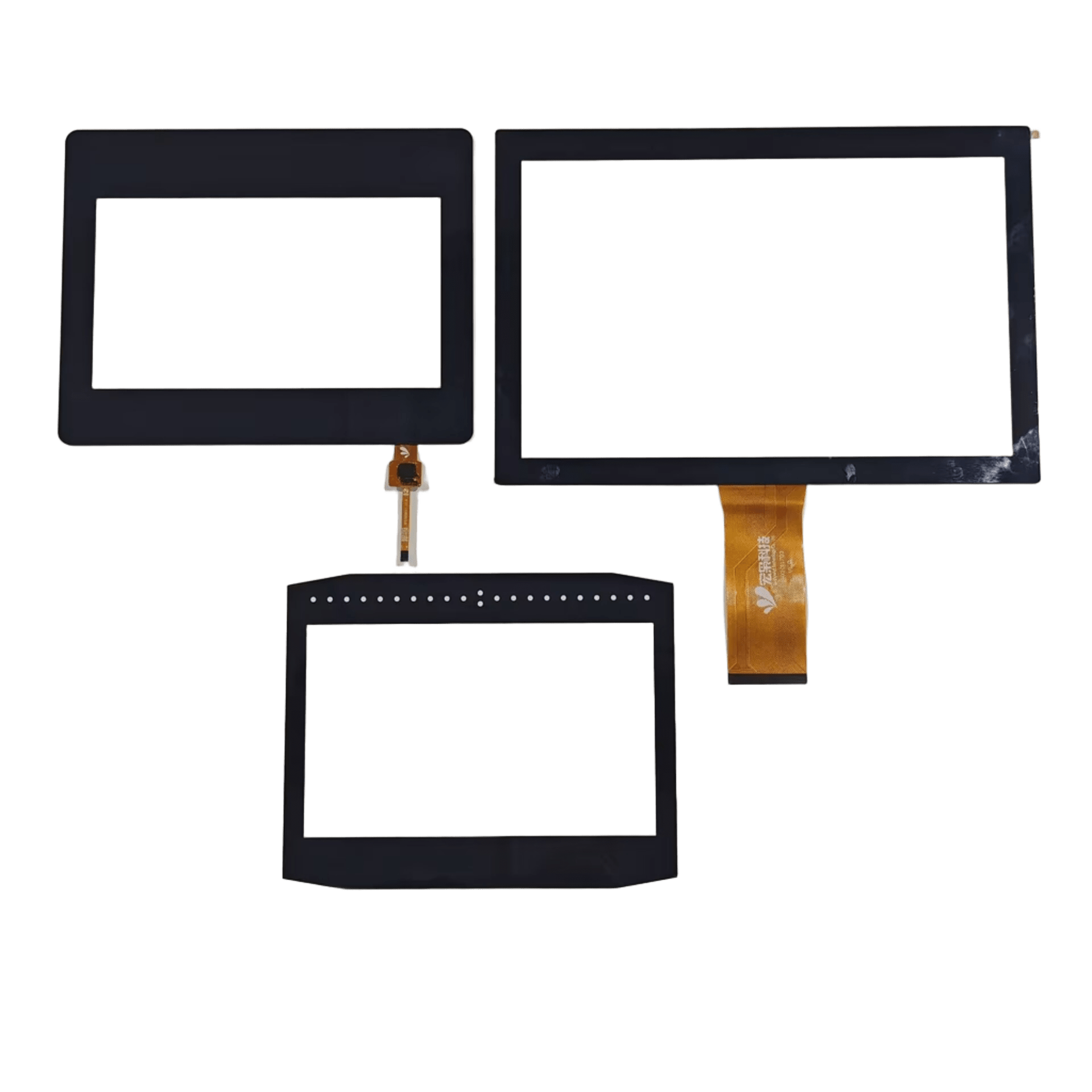

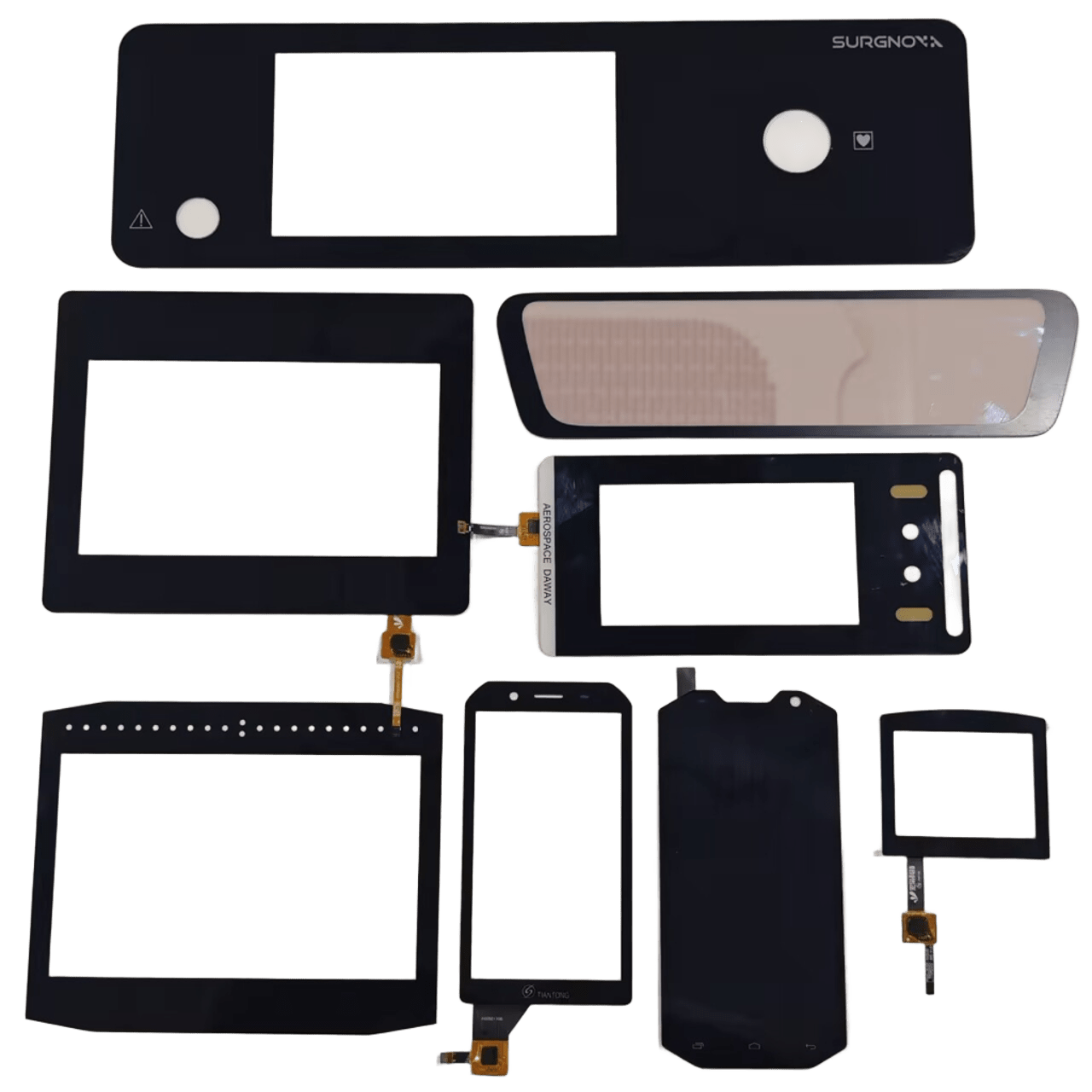

Special shape touchscreen/touch panel
The shape,color and any logo can be tailored according to your preference. Size range:from 1.3-65 inch Can manufacture and provide the solo cover glass as per your design

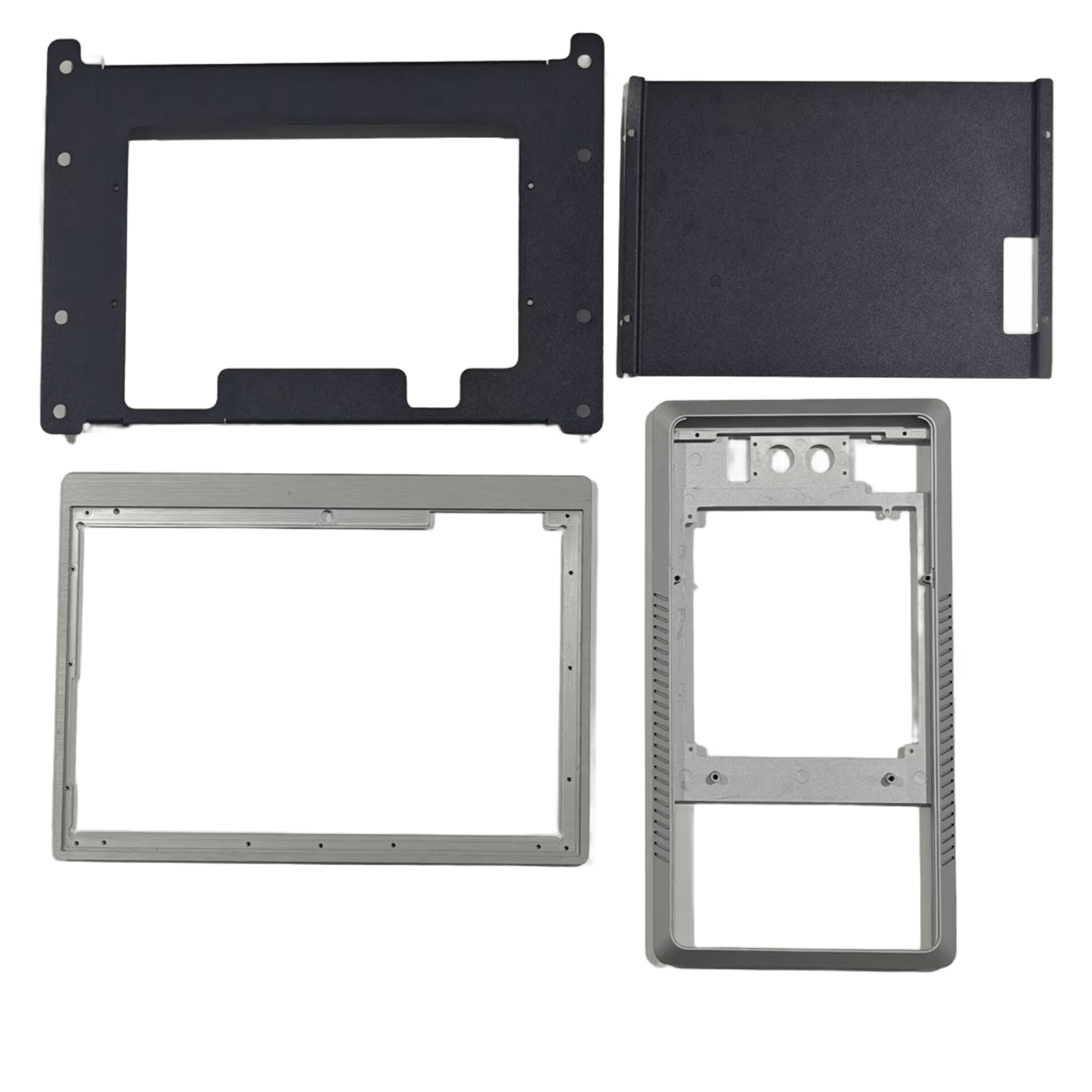

Metal Frame/Fixation frame
The material,color can be produced according to your demand. Structure design should be combine with your installation method and casing design.

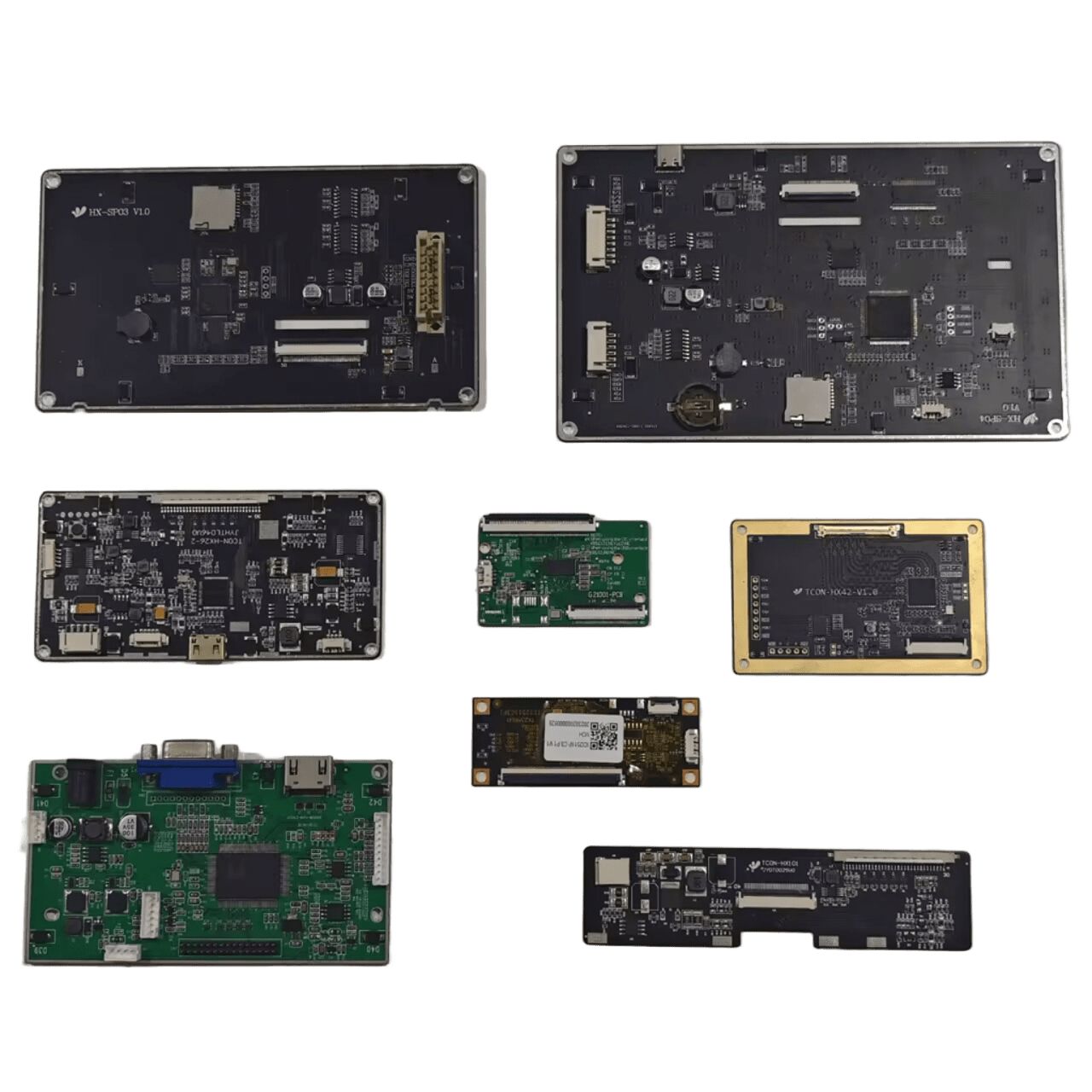

PCBs/Driver PCB Board
Touch pcb board and TFT driver board can be upgraded as per the specific design. The PCB board driver ic be options. Industrial grade raw material with more sturdy and the better anti-interference capability can be handled.
Product Features
GLOVE FUNCTION
Support gloves made of various materials such as nylon,latex, cotton,plush and leather and of different thickness,6mm the thickest
WATER FUNCTION
Support touch with water,oil, oil-water mixture and brine
THICKNESS
Support normal touch with thick cover like tempered glass,15mmm the thickest
Cover glass surface treatment--AG, AR, AF

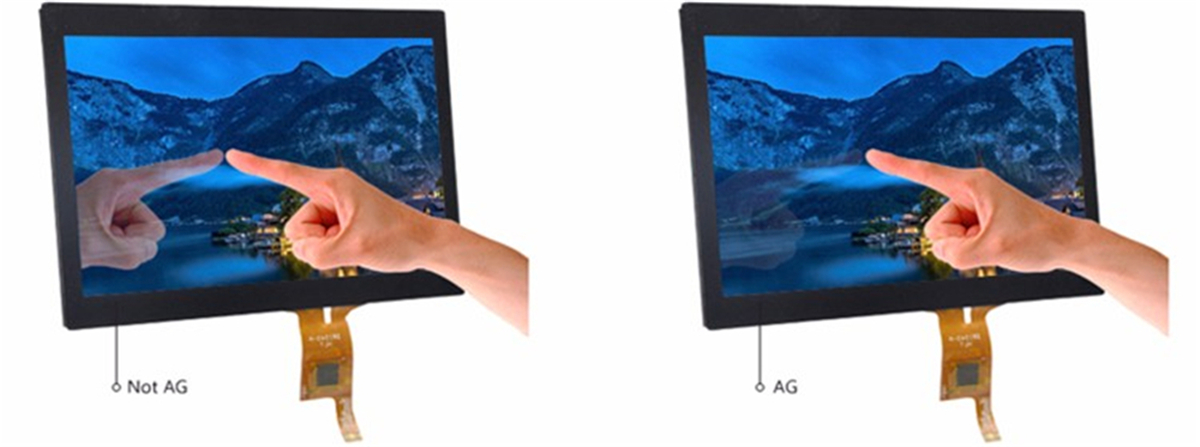

Anti Glare (AG) processing could eliminate screen surface mirror problem through converting direct light to diffuse light on the touch screen.

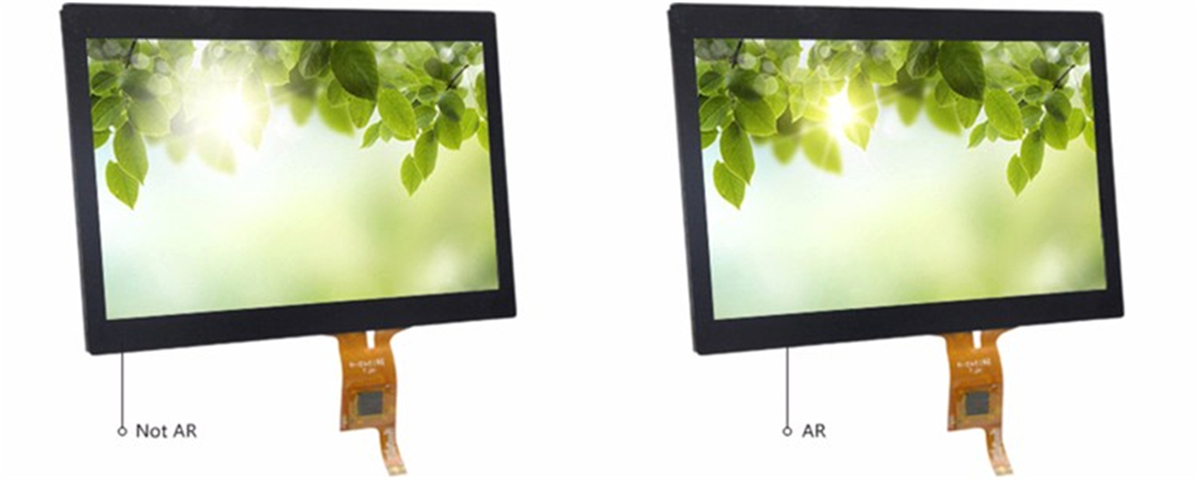

AR processing means adding a type of coating that could reduce reflected light on the cover glass,which dereases screen reflection and increases visual effects significantly in the sun.

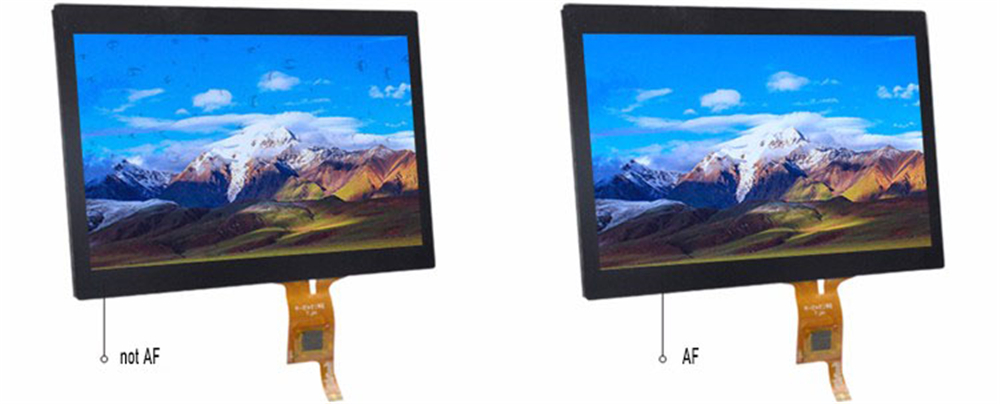

AF processing is adding on the cover glass a king of coating that could increases surface smoothness, reduces surface sliding resistance , residual water and fingerprints on the surface significantly and improves feeling and clarity.
Module Assemble
CTP/TP/PCAP touch+TFT+Optical bonding(OCR/OCA)
Cover Glass+TFT/LCD display(No touch function and just protection purpose for the lcd display)
