7 inch capacitive touch screen
gtag('config', 'AW-615648100');gtag('config', 'UA-180192430-1');// ]]> The 7 inch capacitive touch screen with cypress touch controller ic, support touch with gloves, water and 10mm tempered glass onside; good anti-interference performance, mainly used in industry, smart home appliances, outdoor portable terminal, medical electronics and other fields. support customization of various structures, surface treatment AG AR AF and other special effects processing, capacitive touch screen iic/ USB interface is optional;
The 7 inch capacitive touch screen is the standard product of our company,It can basically match the 800*480 or 1024*600 resolution display products,. It adopts GG structure solution and has very stable performance, suitable for various application environments, and the display structure is basically 1:1 design, suitable for embedded structure installation.
| Model Number | HX0701601 V2.0 |
| Brand | Grahowlet |
| Size | 7.0 inch |
| Interface Type | IIC/USB |
| Structure | G+G |
| Controller IC | Cypress |
| Touch Points | 10 points |
| Transparency | ≥85% |
| Surface Hardness | ≥6H |
| Operating Environment | -20℃ ～ 70℃,≤85% RH |
| Storage Environment | -30℃ ～ 80℃,≤85% RH |
| Power Supply Voltage | 2.8V ～ 3.3V |

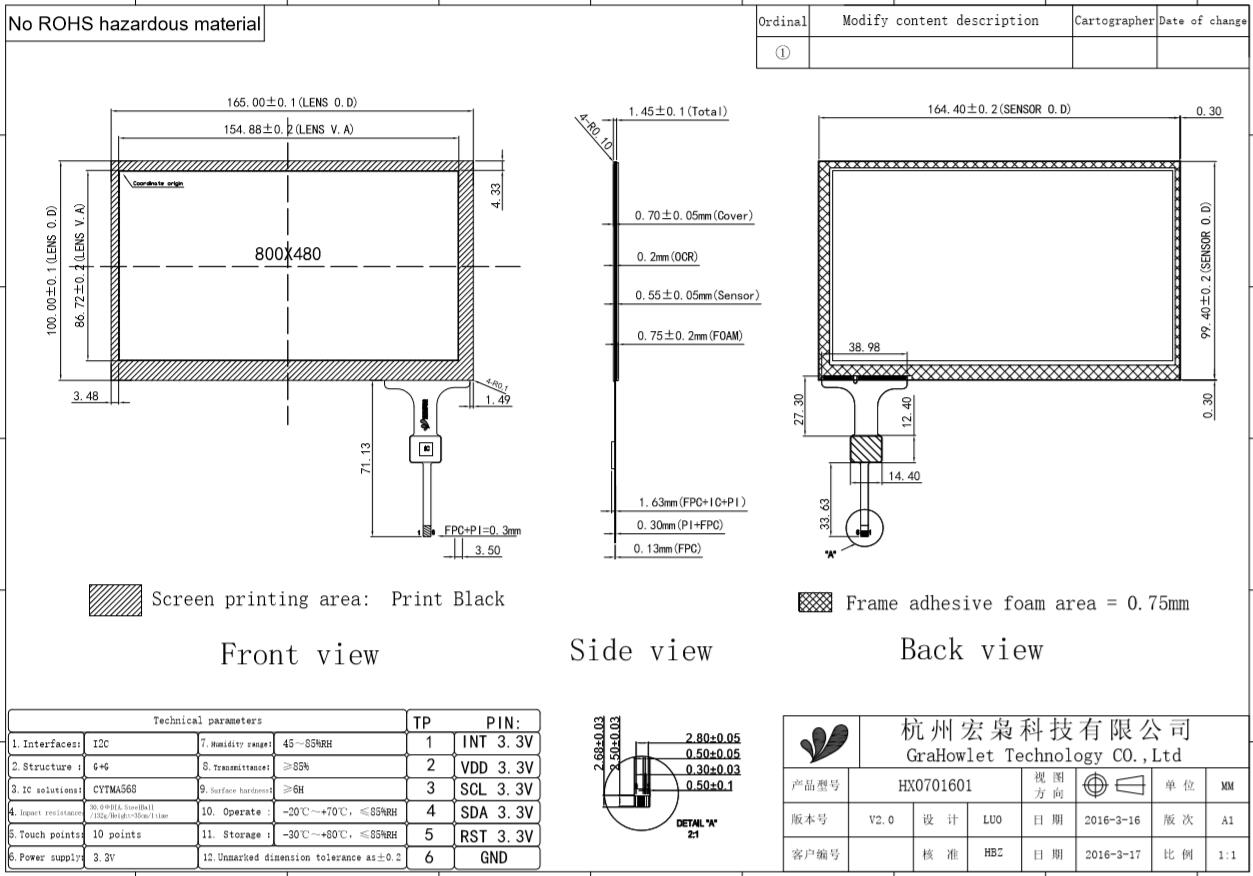

| Outline Dimension | 165.00(W)x100.00(H)x1.45(D) mm |
| Viewing Area | 154.88(W)x86.72(H) mm |
| Support Systems | Windows/Android/Linux etc. |
| Warranty | 1 year |
