7 inch touch screen panel for Window Linux Android system
gtag('config', 'AW-615648100');gtag('config', 'UA-180192430-1');// ]]> The 7 inch windows 7 touch screen, support touch with water, gloves and 10 mm tempered glass; good anti-interference performance. mainly used in industry, smart home appliances, outdoor portable terminal, medical electronics and other fields, support customization of structures and surface treatment AG AR AF and other special effects. capacitive touch screen iic/ USB interface optional;
| Model Number | HX0701804 V2.0 |
| Brand | Grahowlet |
| Size | 7 inch |
| Interface Type | IIC/USB |
| Structure | G+G |
| Controller IC | CYPRESS |
| Touch Points | 10 points |
| Transparency | ≥85% |
| Surface Hardness | ≥6H |
| Operating Environment | -20℃ ~ 70℃,≤85% RH |
| Storage Environment | -30℃ ~ 80℃,≤85% RH |
| Power Supply Voltage | 2.8V~3.3V |

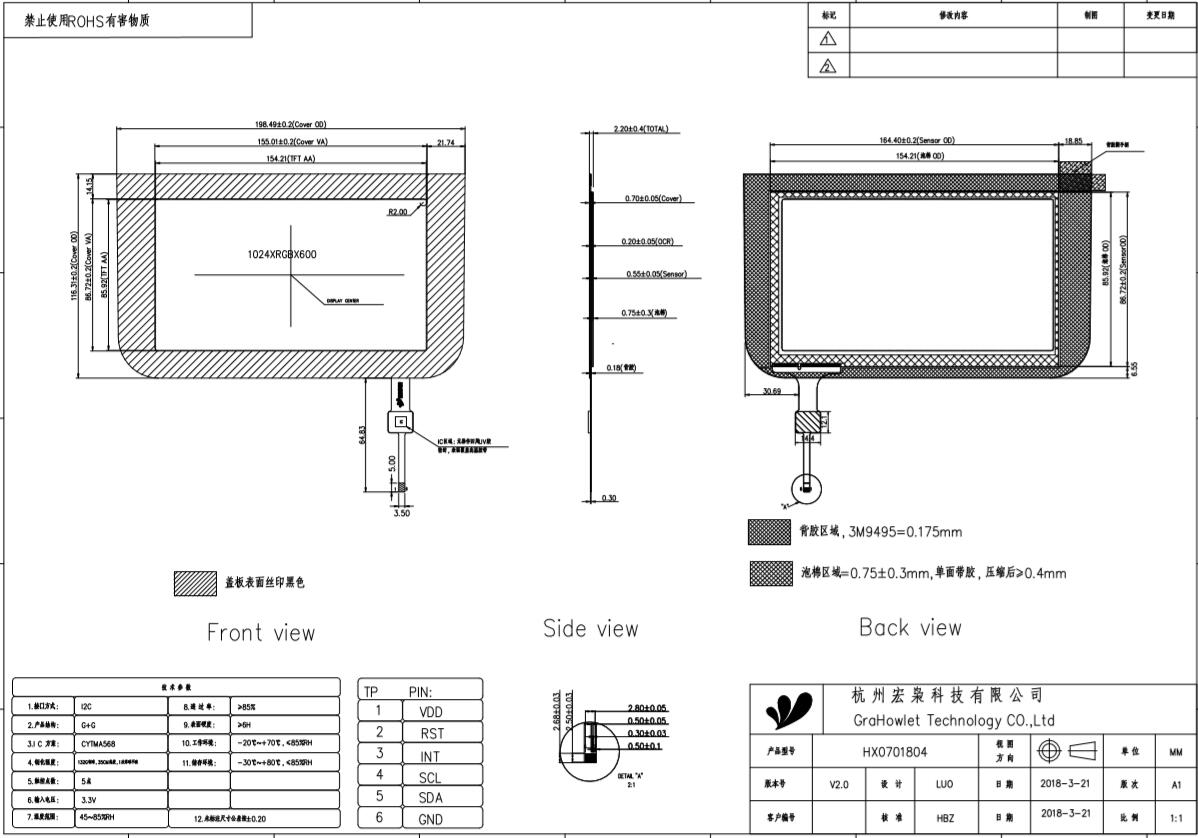

| Outline Dimension | 198.49(W)*116.31(H)*2.20(D) mm |
| Viewing Area | 155.01(W)*86.72(H) mm |
| Support Systems | Windows/Android/Linux etc. |
| Warranty | 1 year |
