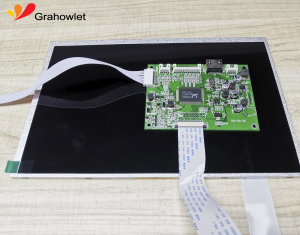

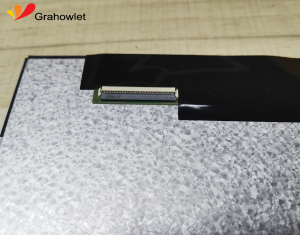

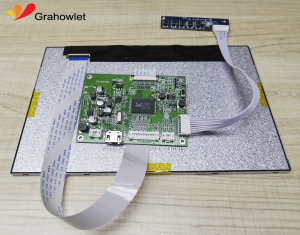

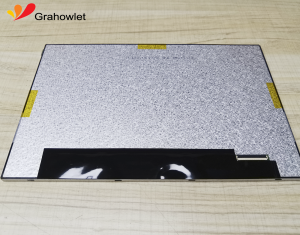

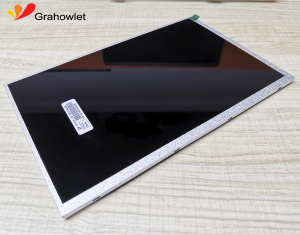

IPS lcd panel 10.1 inch 1280×800 tft lcd display module
Product Description
| Model Number | HX101IA01D-40A |
| Brand | Grahowlet |
| Size | 10.1 inch |
| Operating Temperature | -20℃ ～ 70℃ |
| Storage Temperature | -30℃ ～ 80℃ |
| Outline Dimension | 229.46mm(W) ×149.10mm(H) ×4.80 mm(D) |
| Active Area | 216.96(W) × 135.60(H) mm |
| Dot pitch(mm) | 0.0565(W) × 0.1695(H) mm |
| Surface treatment | Anti-Glare |
| Display Mode | Normally Black, Transmissive,IPS |
| Color Depth | 16.7M |
| Contrast Ratio | 800:1 (Typ) |
| Response Time (ms) | 25ms (OFF+ON TYP) |
| Backlight | WLED |
| Resolution | 1280x800 |
| Interface Type | LVDS(40PINS)/HDMI/VGA |
| Luminance | 450 cd/m² |
| Viewing Angle | ALL |
| Support Systems | Windows/Android/Linux etc. |
| Warranty | 1 year |
Our Company
Hangzhou Grahowlet Technology is a comprehensive service provider of capacitive touch screen module and TFT LCD display for various industries. In order to meet different requirements of worldwide customers, Hongxiao supply all kinds of product structures such as G + G, G + F (G + F + F ),P + G, etc. and various technical support programs such as Cypress , Atmel, EETI, FocalTech, Goodix etc. according to different application environments. We provides solutions that match all customers’ touch screen needs and create products based on multiple technologies. We are committed to supply global customers with first-class products and professional technical services in the touch industries. Our products are of high stability and anti-interference performance and used in various industries with complicated and difficult conditions.
Technical Q&A
Q: Can you tell us about your company's main products, process and size range?
A: Our main products include: special glass cover, capacitive touch screen, LCD screen, capacitive touch screen module, supporting driving board;
Technical process: G+G structure, P+G structure and GFF structure, including flexible touch screen,
Bonding process: Air bonding & Optical bonding.
Size range from 1.3 inch to 65 inch, and there are no projects in batch production with size above 65 inch at the moment.
Q:Can you provide OEM service?
A:yes, we can provide both OEM and ODM service,can customize products according to the drawings you supply.
Q: How can I trust your product quality?
A:We have more than 10 years experience in touch screen industry. From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by ROHS.
Q:What is the minimum order?
A:our company mainly deals with wholesale deals,but if you insist buying one set,welcome to take a sample for you check quality and function.
once sample is confirmed, we could allow for a small mount of orders(no quantity limitation) to be put into production and once this is confirmed, MOQ is required.
