HX0701852 PCAP+TFT 7 inch touch screen for raspberry pi

Short Description:

  • Min.Order Quantity: 1 Piece/Pieces ( just for sample order )
  • Supply chain: at least 3~5 years
  • Payments: VISA,Pay Latre,L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal/cash payments etc.
  • Shipping: Support Express/Sea freight/Land freight/Air freight
  • Customization: Customized Shape/logo/packaging, etc
  • Product Detail

    Product Tags

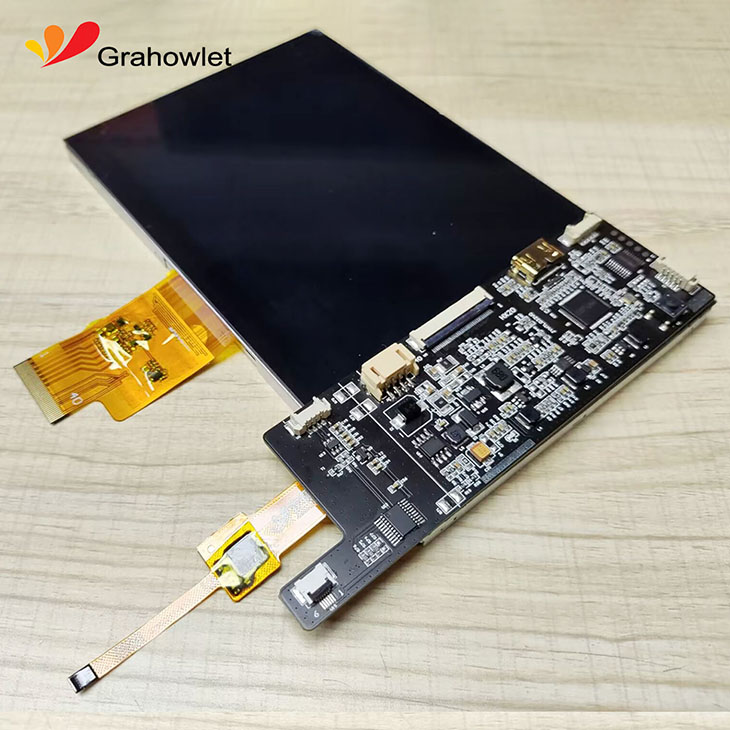

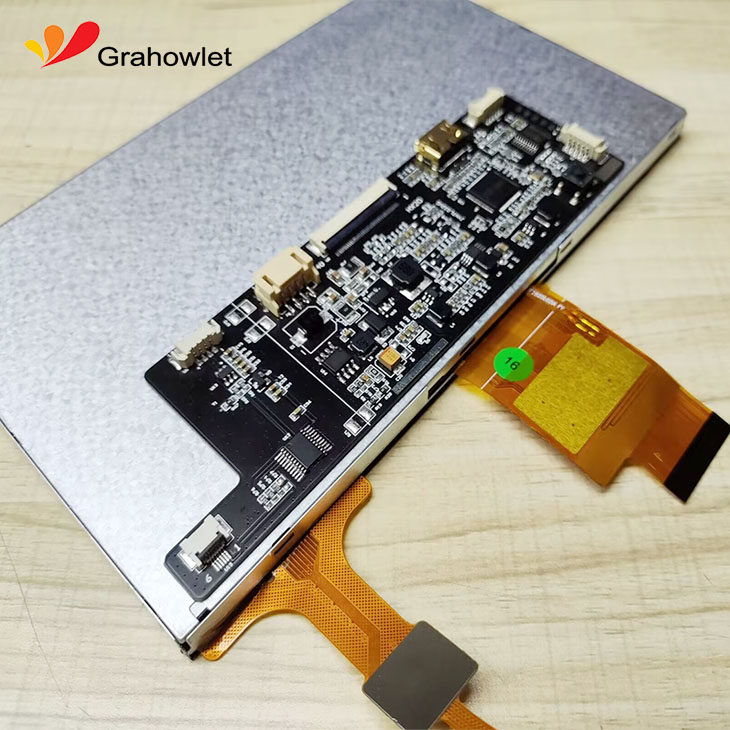

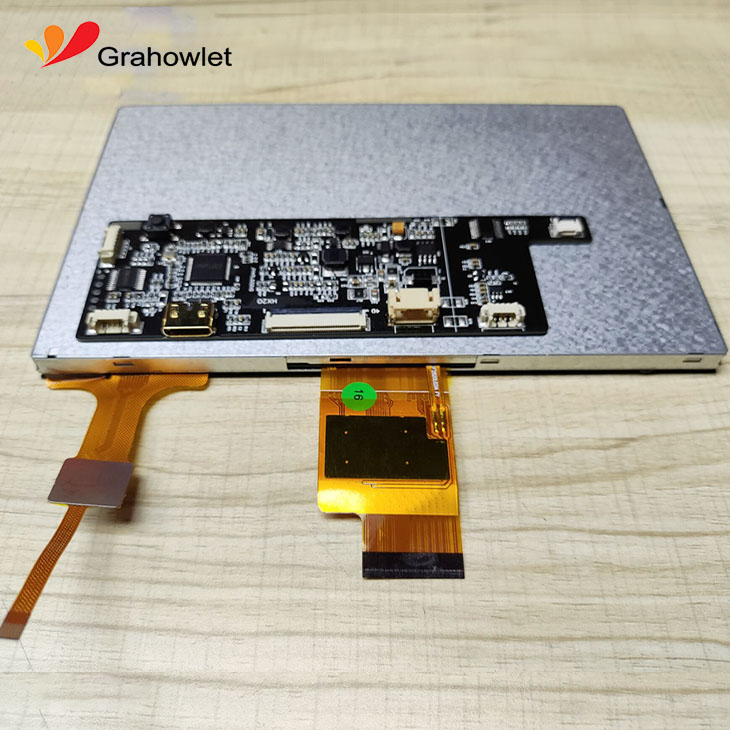

    HX0701852 PCAP+TFT 7 inch touch screen for  raspberry pi:The 7 inch capacitive touch panel with cypress touch controller ic,uses 6pins I2C interface,and the tft lcd screen with 1024x600 resolution,40PINS LVDS interface.We can provide "IIC TO USB " and "lvds to hdmi" driver board.

    How to connect the 7-inch capacitive touch screen to the Raspberry Pi?

    To connect a 7-inch capacitive touch screen to a Raspberry Pi, you will need to follow the steps below:

    1. Ensure that your Raspberry Pi has the latest version of Raspbian installed.
    2. Connect the screen to the Raspberry Pi using the HDMI cable that came with the screen.
    3. Connect the USB cable from the screen to the USB port on the Raspberry Pi.
    4. Power on the Raspberry Pi and the touch screen should turn on automatically.
    5. Check that the touch screen is working by tapping on it with your finger or a stylus.

    Note: Depending on the specific touch screen and Raspberry Pi model you are using, additional steps may be required, such as installing drivers or configuring settings.

    Product Description

    Model NumberHX0701852
    Size7.0 inch
    Operating Temperature-20℃ ~ 70℃
    Storage Temperature-30℃ ~ 80℃
    Bonding workmanshipAir/Optical Bonding
    Outline Dimension165.00(W)x100.00(H)x7.79(D) mm
    Viewing Area154.88(W)x86.72(H) mm
    Active Area154.21(W)x85.92(H) mm
    Support SystemsWindows/Android/Linux etc.
    Warranty1 year
    PCAP Interface TypeI2C/USB
    Controller ICCypress
    Touch Points10 points
    Surface Hardness≥6H
    Surface treatment/
    PCAP Power Supply Voltage2.8V ~ 3.3V
    Interface TypeLVDS/HDMI/VGA
    Luminance1000 cd/m²
    Viewing AngleALL
