PCAP 8 inch display module for arduino

Short Description:

Min.Order Quantity: 1 Piece/Pieces ( just for sample order )

Supply chain: at least 3~5 years

Payments: VISA,Pay Latre,L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal/cash payments etc.

Shipping: Support Express/Sea freight/Land freight/Air freight

Customization: Customized Shape/logo/packaging, etc

Get a Free Quote Download as PDF

Product Detail

Product Tags

The PCAP 8 inch display module for arduino，Industrial application, strong anti-interference and impact performance, can support touch with gloves, water or thick tempered glass or PC onside, mainly used in industrial, smart home appliances, medical electronics, automotive and other fields, support customization of various structures, surface treatment AG AR AF and other special effects; brightness can be customized , Capacitive touch screen Iic/usb interface optional, display can match different interface conversion Board according to customer demand;

TPM	Model Number	HX0801807
	Brand	Grahowlet
	Size	8.0 inch
	Operating Temperature	-20℃ ～ 70℃
	Storage Temperature	-30℃ ～ 80℃

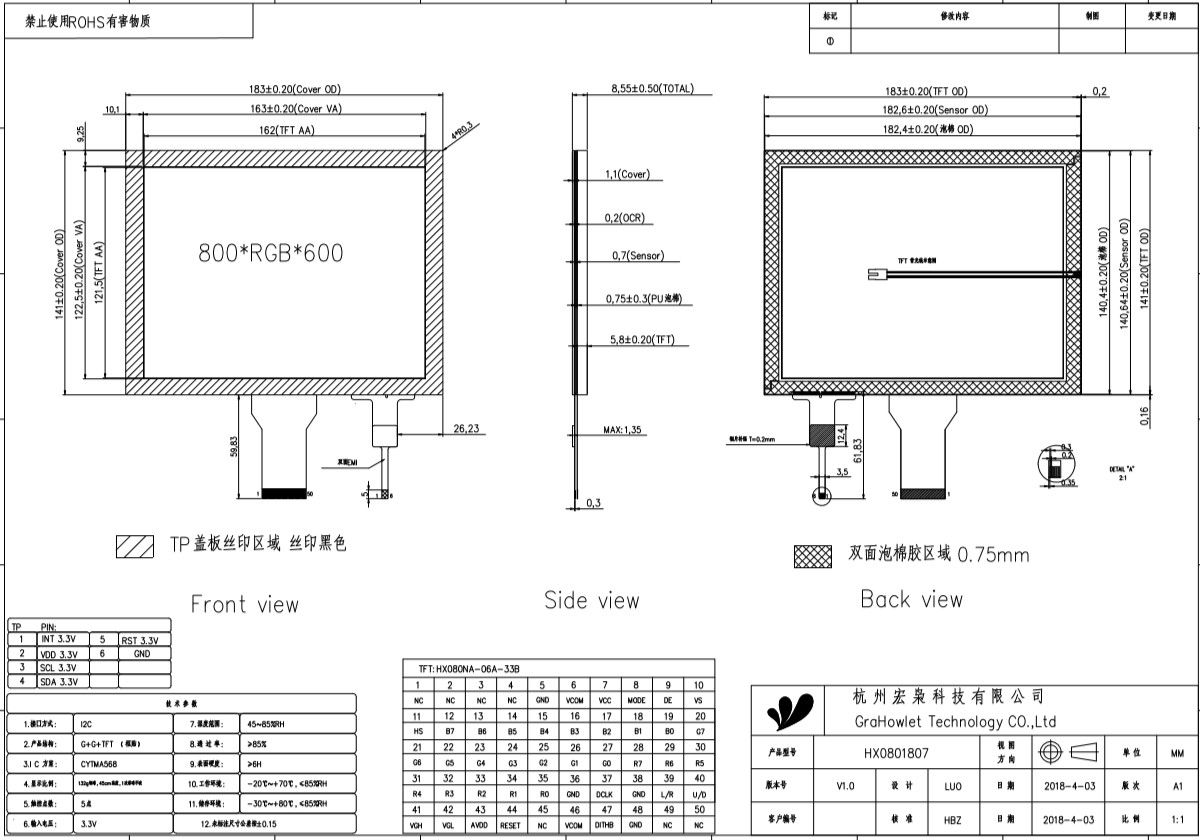

	Outline Dimension	183.00(W)x141.00(H)x8.55(D) mm
	Viewing Area	163.00(W)x122.50(H) mm
	Active Area	162.00(W)x121.50(H) mm
	Support Systems	Windows/Android/Linux etc.
	Warranty	1 year
CTP	Interface Type	IIC/USB
	Structure	G+G
	Controller IC	Cypress
	Touch Points	10 points
	Transparency	≥85%
	Surface Hardness	≥6H
	Power Supply Voltage	2.8V ～ 3.3V
TFT	Resolution	800x600
	Interface Type	RGB/HDMI/VGA
	Luminance	300 cd/m²
	Viewing Angle	70/70/50/70
