8 inch 800×600 touch display module with RGB interface
8 inch 800x600 touch display module with RGB interface uses cypress touch controller ic, support operation with gloves, water , and working well with additional 10mm thick tempered glass on the top. Mainly used in industrial, home appliances, medical, outdoor terminals and other fields. Deep customization service supported and a variety of interface converting & drive boards available, which is convenient for customers to use.
The 8 inch 800x600 touch display module with RGB interface and independent back light supply, the module adopts the air bonding process, the capacitive touch screen interface is IIC, adopts the Cypress solution, It has excellent anti-interference performance. it is more suitable for some applications with complex application environment, and the application surface is very wide
| Model Number | HX0801706 |
| Brand | Grahowlet |
| Size | 8.0 inch |
| Operating Temperature | -20℃ ～ 70℃ |
| Storage Temperature | -30℃ ～ 80℃ |

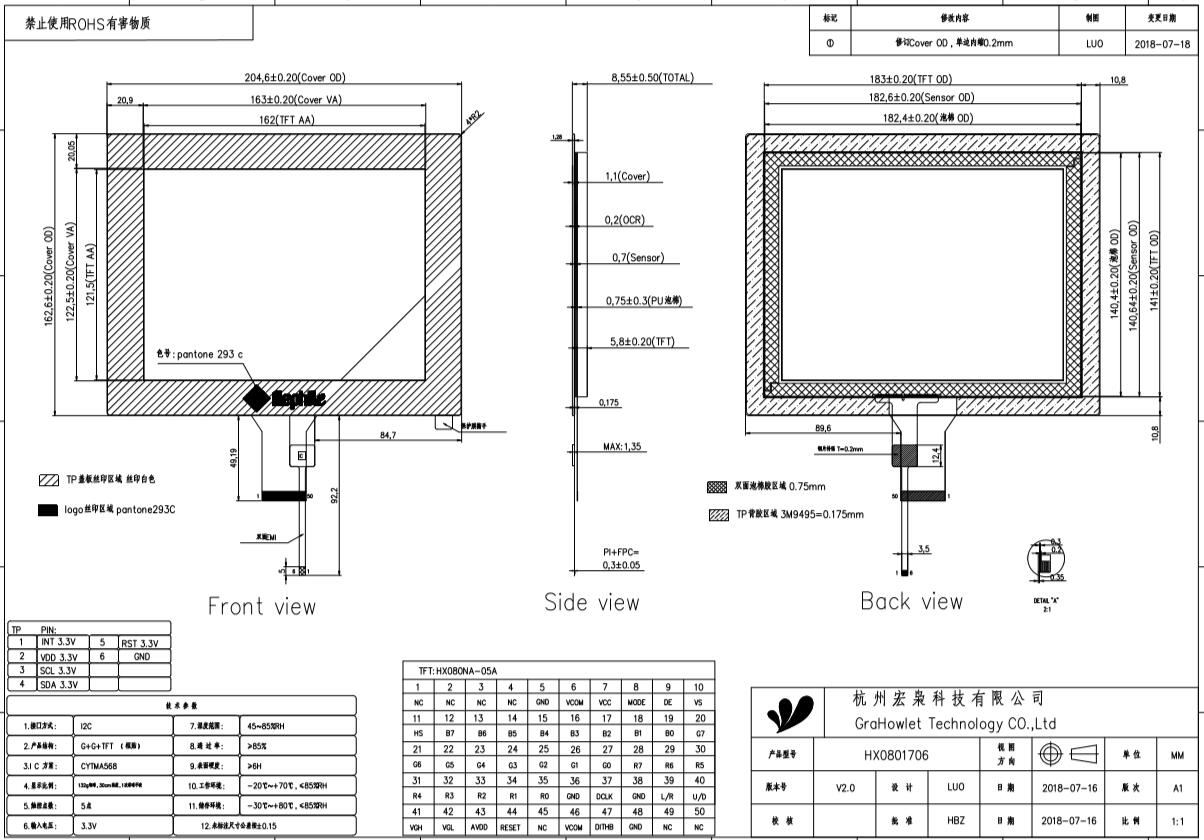

| Outline Dimension | 205.00(W)x163.00(H)x8.55(D) mm |
| Viewing Area | 163.00(W)x122.50(H) mm |
| Active Area | 162.00(W)x121.50(H) mm |
| Support Systems | Windows/Android/Linux etc. |
| Warranty | 1 year |
| Interface Type | IIC/USB |
| Structure | G+G |
| Controller IC | Cypress |
| Touch Points | 10 points |
| Transparency | ≥85% |
| Surface Hardness | ≥6H |
| Power Supply Voltage | 2.8V ～ 3.3V |
| Resolution | 800x600 |
| Interface Type | RGB/HDMI/VGA |
| Luminance | 300 cd/m² |
| Viewing Angle | 70/70/50/70 |
