8 inch 1024X768 industrial touch screen with RGB interface

Short Description:

  • Min.Order Quantity: 1 Piece/Pieces ( just for sample order )
  • Supply chain: at least 3~5 years
  • Payments: VISA,Pay Latre,L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal/cash payments etc.
  • Shipping: Support Express/Sea freight/Land freight/Air freight
  • Customization: Customized Shape/logo/packaging, etc
  • Product Detail

    Product Tags

    The 8 inch 1024X768 industrial touch screen with RGB interface uses cypress touch controller ic ,can support operation with gloves, water , and thick tempered glass or PC on top of the cover glass, mainly used in medical, industrial, security, home appliances and other fields; Custom processing such as surface treatment --AG,AR,AF available, resolution and brightness optional, etc.

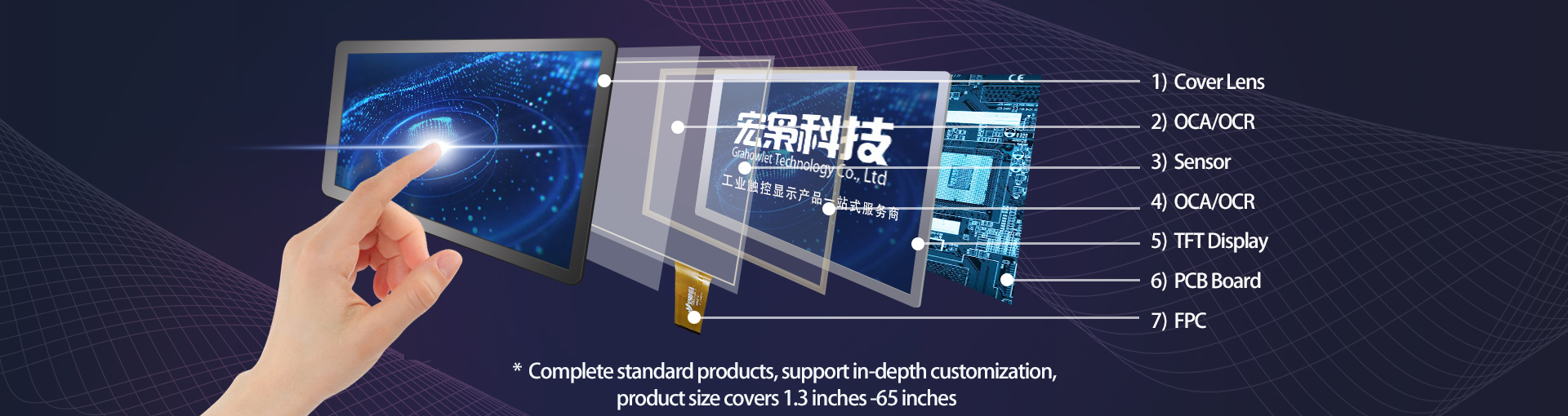

    The 8 inch 1024X768 industrial touch screen uses Glass+Glass structure,the LCD display glass is TN material and not suitable for the optical bonding process, it is more suitable for the product design of the embedded installation structure of resistance touch solution upgraded to capacitance touch screen. It has a wide range of applications.

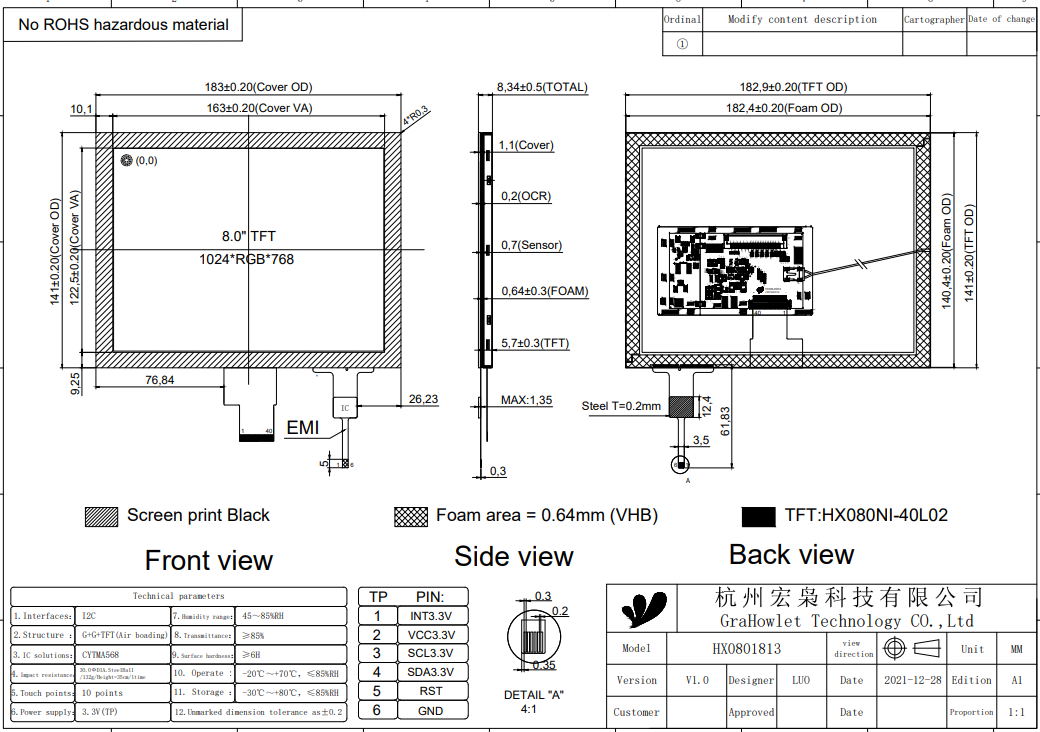

    Model NumberHX0801813
    Size8.0 inch
    Operating Temperature-20℃ ~ 70℃
    Storage Temperature-30℃ ~ 80℃
    Outline Dimension183.00(W)x141.00(H)x8.34(D) mm
    Viewing Area163.00(W)x122.50(H) mm
    Active Area162.05(W) 121.54(H) mm
    Support SystemsWindows/Android/Linux etc.
    Warranty1 year
    Interface TypeIIC/USB
    Controller ICCypress
    Touch Points10 points
    Surface Hardness≥6H
    Power Supply Voltage2.8V ~ 3.3V
    Interface TypeLVDS/HDMI/VGA
    Luminance400 cd/m²
    Viewing Angle85/85/85/85
