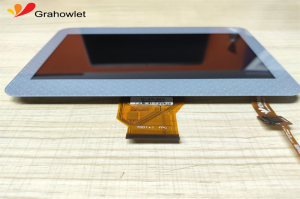

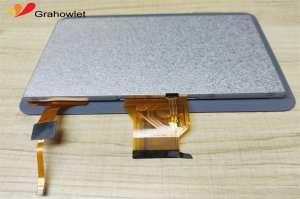

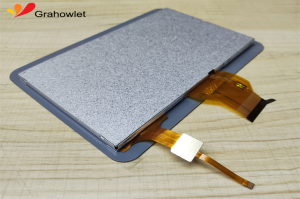

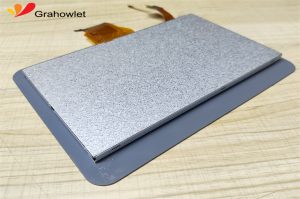

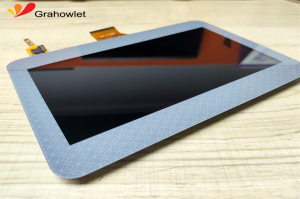

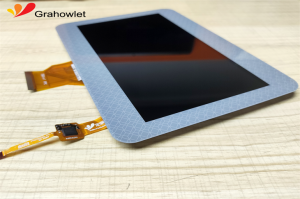

7 inch outdoor touch screen with FT5426 touch IC

Short Description:

  • Min.Order Quantity: 1 Piece/Pieces ( just for sample order )
  • Supply chain: at least 3~5 years
  • Payments: VISA,Pay Latre,L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal/cash payments etc.
  • Shipping: Support Express/Sea freight/Land freight/Air freight
  • Customization: Customized Shape/logo/packaging, etc
  • Product Detail

    Product Tags

    7 inch outdoor touch screen with FT5426 touch IC  ,uses projected capacitive touch screen panel with 6pins IIC interface ( we can provide "IIC TO USB" bridge board,USB interface supports drive free use),800X480 tft lcd screens.1000cd/m2 tft lcd screen with 800X480 RGB interface.

    Model NumberHX0701820CTP Interface Type6pins IIC/USB
    Size7.0 inchTouch Controller ICFT5426
    Operating Temperature-20℃ ~ 70℃Touch Points10 points
    Storage Temperature-30℃ ~ 80℃Transparency≥85%
    Bonding workmanshipAir Bonding Surface Hardness≥6H

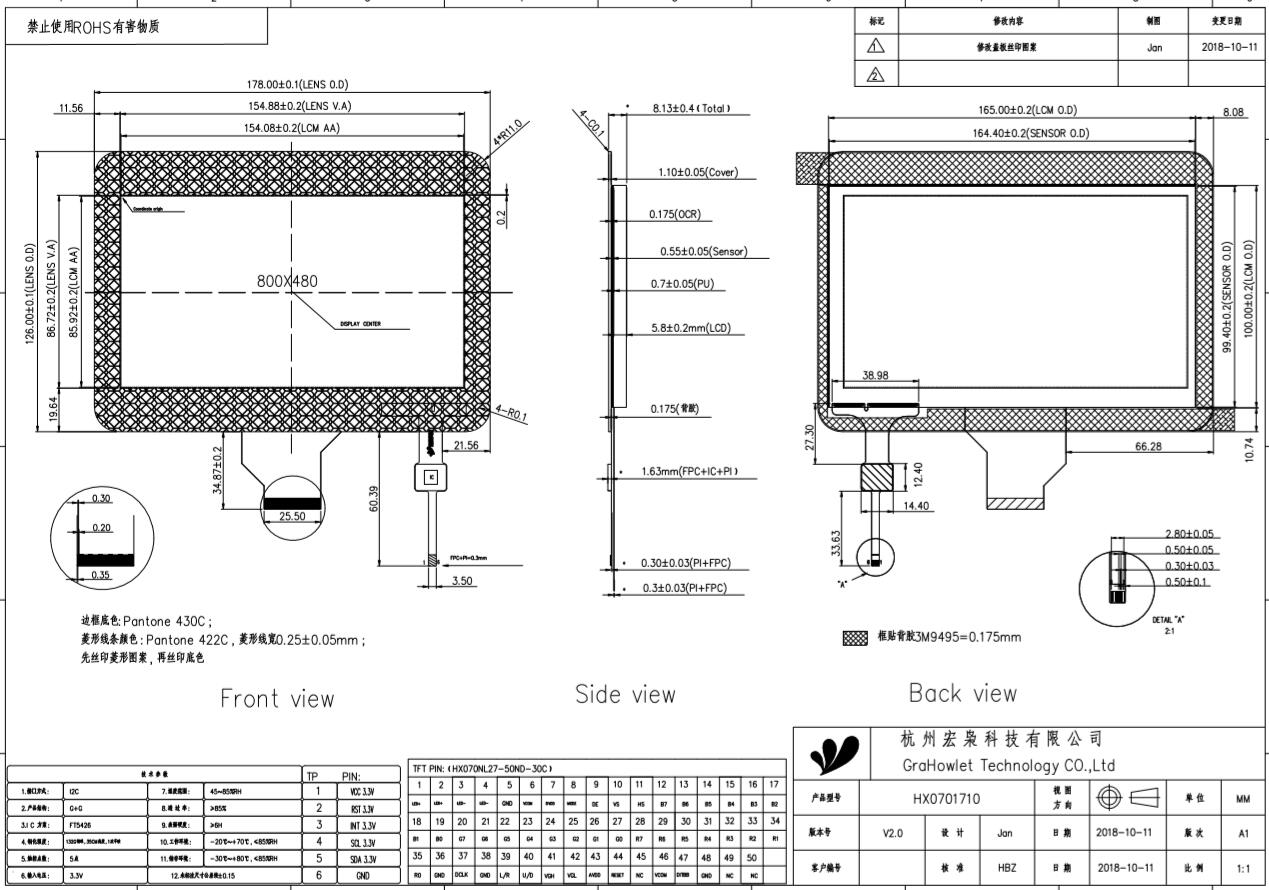

    Outline Dimension165.00(W)x100.00(H)x5.00(D) mm Power Supply Voltage2.8V ~ 3.3V
    Viewing Area154.88(W)x86.72(H) mm Resolution1024x600
    Active Area154.21(W)x85.92(H) mm TFT Interface TypeLVDS
    Support SystemsWindows/Android/Linux etc.Luminance350 cd/m²
    Warranty1 yearViewing AngleALL
