7.8 inch capacitive flexible touch screen
Product Description
The 7.8 inch capacitive flexible touch screen is bendable touch screen, I2C interface, MXT640U touch controller ic solution,FF+FPC structure, mainly used in medical, industrial, security, home appliances and other fields. Deep custom service available.
| Model Number | HX0781801 V1.0 |
| Brand | Grahowlet |
| Size | 7.8 inch |
| Interface Type | IIC/USB |
| Structure | FF+FPC |
| Controller IC | MXT640U |
| Touch Points | 10 points |
| Transparency | ≥85% |
| Surface Hardness | ≥2H |
| Operating Environment | -10℃ ～ 60℃,≤85% RH |
| Storage Environment | -20℃ ～ 70℃,≤85% RH |
| Power Supply Voltage | 2.8V ～ 3.3V |
| Outline Dimension | 206.00(W)x71.60(H)x0.725(D) mm |
| Viewing Area | 191.10(W)x60.40(H) mm |
| Support Systems | Windows/Android/Linux etc. |
| Warranty | 1 year |
Application
Custom Service

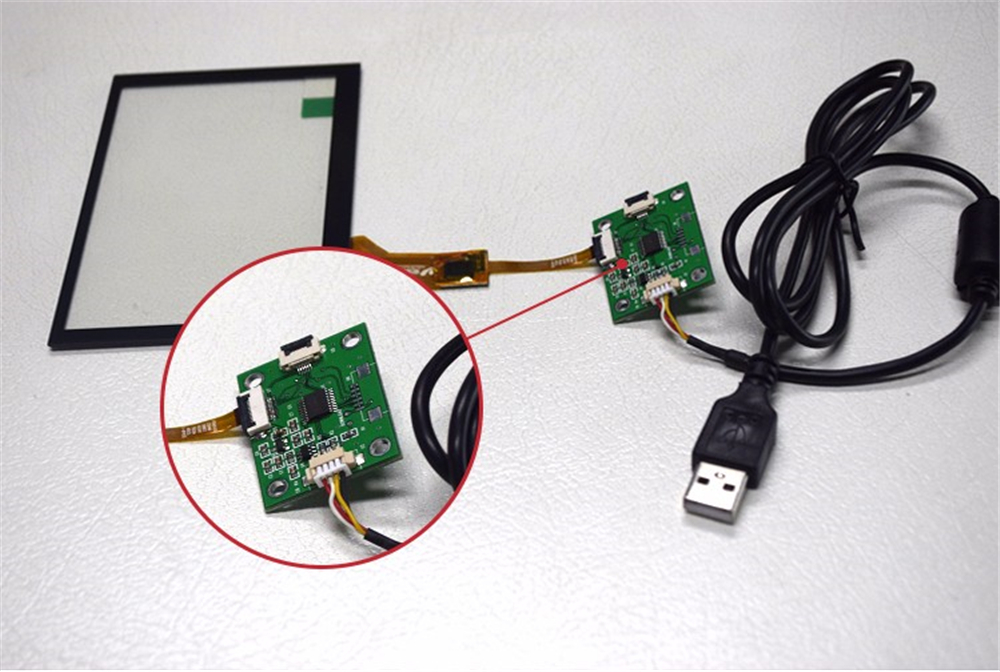

If you want USB interface, we can supply IIC to USB Bridgeboard
FAQ
Q:Can you provide OEM service?
A:yes, we can provide both OEM and ODM service，can customize products according to the drawings you supply.
Q: How can I trust your product quality?
A:We have more than 10 years experience in touch screen industry. From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by ROHS.
Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly by our professional and strong technical team.
Q:What is the minimum order?
A:our company mainly deals with wholesale deals,but if you insist buying one set,welcome to take a sample for you check quality and function.
once sample is confirmed, we could allow for a small mount of orders(no quantity limitation) to be put into production and once this is confirmed, MOQ is required.
