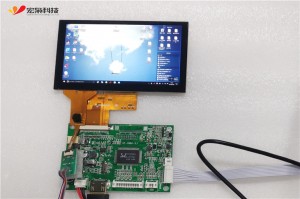

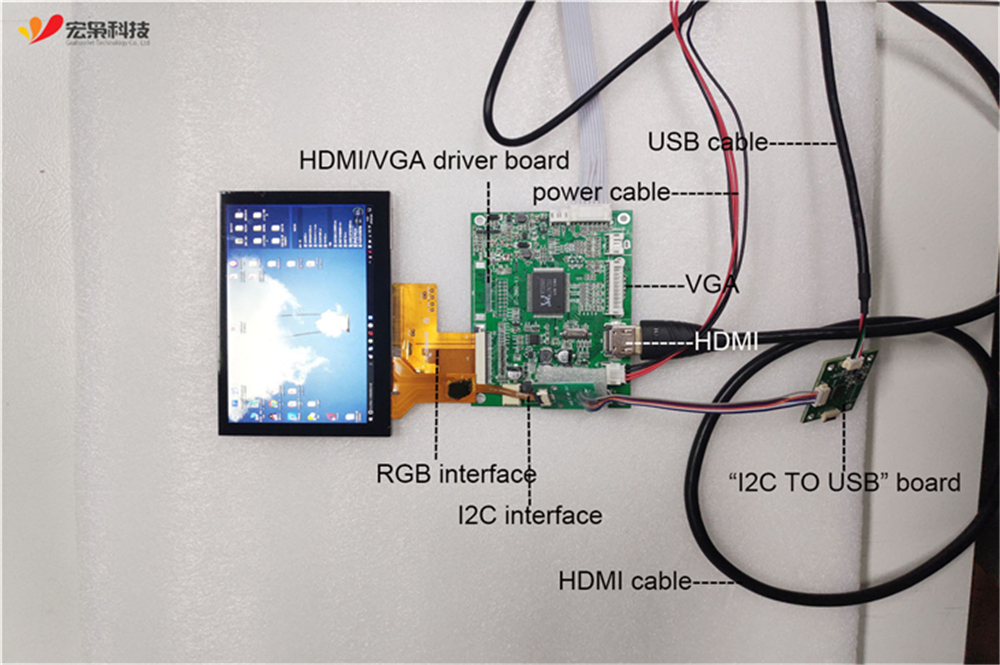

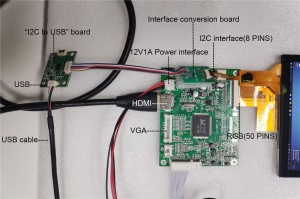

gtag('config', 'AW-615648100');gtag('config', 'UA-180192430-1');// ]]> The pcap of 5 inch best raspberry pi touchscreen is I2C interface , wo can provide " IIC TO USB" bridge board to connected to raspberry pi . The display is RGB interface ,in order to connect Raspberry Pi .Normally used in consumer electronics.
The 5 inch best raspberry pi touchscreen uses cytma568 touch controller IC , support operation with thick gloves ,thick tempered glass and thick PC on the top.Mainly used in intelligent security, mobile animal networking, portable medical electronics and other fields,. G+F+F structure, COB solution, support surface treatment AG AR AF and other special processing as well as structure customization;
TPM | Model Number | HX0501803 |
| Brand | Grahowlet | |
| Size | 5.0 inch | |
| Operating Temperature | -20℃ ~ 70℃ | |
| Storage Temperature | -30℃ ~ 80℃ | |
| Outline Dimension | 120.70(W)X76.30(H)X5.09(D)mm | |
| Viewing Area | 108.80(W)X65.60(H)mm | |
| Active Area | 108.00(W)X64.80(H) mm | |
| Support Systems | Windows/Android/Linux etc. | |
| Warranty | 1 year | |
CTP | Interface Type | IIC/USB |
| Material/Structure | G+G | |
| Controller IC | Cypress | |
| Touch Points | 10 points | |
| Transparency | ≥85% | |
| Surface Hardness | ≥6H | |
| Power Supply Voltage | 2.8V ~ 3.3V | |
TFT | Resolution | 800*480 |
| Interface Type | RGB/HDMI/VGA | |
| Luminance | 500 cd/m² | |
| Viewing Angle | ALL |
Function Feature:
1.Support Touch with glove of all materials and thickness with 6mm
2.Support Touch with water/brine

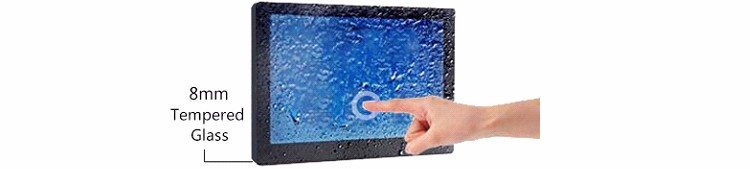

3.Cover glass Support -8mm thickness--explosion-proof
Our Service
■ Program evaluation : 1 to 2 working days
■ Drawings:2 to 3 working days
■ Customized products:3 to 4 weeks (after drawings confirmed)
■ Production delivery :3 to 5 weeks
■ Capacity: 100K per month (10.1 inches as a reference)
■ Process capability: G+G, G+F+F, shielding process, overall module joint process (Optical Bonding) (maximum 65 ) Cover glass surface treatment AR, AG, AF
■ Technical support: We have more than 10 years of experience in touch screen industry, with a professional technical team, can always provide technical support for you.
■ Stable supply chain for at least 3~5 years guarantee
■ One year warranty time for all of our product
Quality Assurance
Quality Control: Full-inspection of Function and Appearance by OQC
Efficient Customer Service : respond to quality complaint and returns in one day
Reliability Test: high and low temperature storage test, cold and hot shock test, ESD servo motor disturbance test, etc.
Technical Q & A
Q:According to our understanding, the amount of products used in industrial projects is generally not very large, and the project cycle is longer. How do you deal with this?
A: If you can ask such a question, it shows that you still have a certain understanding of the field of industrial capacitive screens, and the actual situation is indeed like this.
In view of the long lead time, we have special personnel to do the project training, and we will take into account the project cycle length and life cycle in the design of the pre-project. the recommended solution are basically industrial, which generally can ensure that the solution can be sustained in 3-5 years of mass production supply. even if one of the material shutdown, we also have alternative schemes for customers, which will not affect the structure of customer’s end products. The most we do is to help customers fine-tune some software without affecting the hardware part.
For the quantity issue, we have a complete system for customers in the industrial field. Generally, after the sample test is passed, we will add another small batch of trial production opportunities, during this time, the quantity is not limited, and just need to meet MOQ requirement after this. Actually we don’t have high MOQ requirements for industrial customers in combination with production and materials investment, the specific MOQ is related to sizes of the screen. Please contact our sales for more details.
