Hot Product

10.1 inch touch module with 1024×600 lcd screen

Short Description:


  • Min.Order Quantity: 1 Piece/Pieces ( just for sample order )
  • Supply chain: at least 3~5 years
  • Payments: VISA,Pay Latre,L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal/cash payments etc.
  • Shipping: Support Express/Sea freight/Land freight/Air freight
  • Customization: Customized Shape/logo/packaging, etc
  • Product Detail

    Product Tags

    Product Description

    Customize CTP/CTP+ LCD DISPLAY 1.3-65 inch
    Full range of standard product in stock (no need customization)

    海报图片-原图

    Model NumberHX1011832
    BrandGrahowlet
    Size10.1 inch
    Operating Temperature-20℃ ~ 70℃
    Storage Temperature-30℃ ~ 80℃

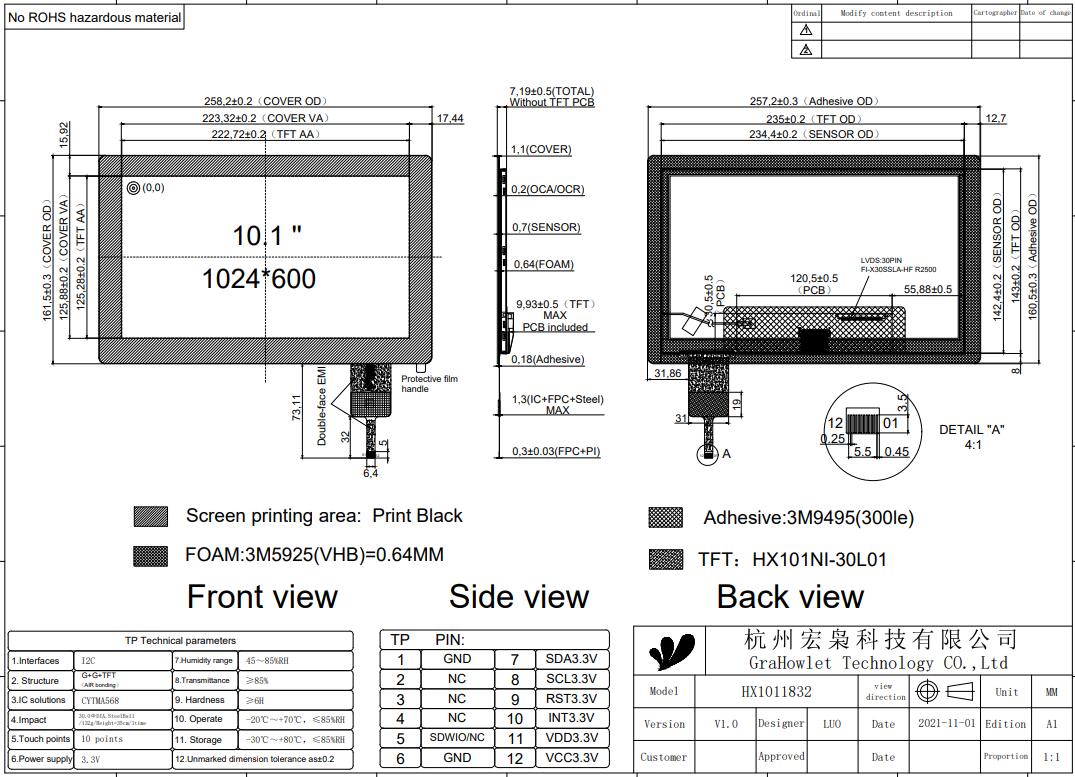

    Outline Dimension258.20(W)x161.50(H)x7.19(D) mm
    Viewing Area223.32(W)x125.88(H) mm
    Active Area222.72(W)x125.28(H) mm
    Support SystemsWindows/Android/Linux etc.
    Warranty1 year
    Interface TypeIIC/USB
    StructureG+G
    Controller ICCypress
    Touch Points10 points
    Transparency≥85%
    Surface Hardness≥6H
    Power Supply Voltage2.8V ~ 3.3V
    Resolution1024x600
    Interface TypeLVDS/HDMI/VGA
    Luminance350 cd/m²
    Viewing AngleALL

    HX1011832

    Our Company

    Hangzhou Hongxiao Technology is a comprehensive service provider of capacitive touch screen module and TFT LCD display for various industries. In order to meet different requirements of worldwide customers, Hongxiao supply all kinds of product structures such as G + G, G + F (G + F + F ),P + G, etc. and various technical support programs such as Cypress , Atmel, EETI, FocalTech, Goodix etc. according to different application environments. We provides solutions that match all customers’ touch screen needs and create products based on multiple technologies. We are committed to supply global customers with first-class products and professional technical services in the touch industries. Our products are of high stability and anti-interference performance and used in various industries with complicated and difficult conditions.
