Short Description:

     The 18.5 inch lcd touch screen module, mainly used in self-service terminal, educational multimedia terminal, advertising terminal and other fields, touch screen structure and surface AG AR AF Special effects can be customized according to customer demand, capacitive touch screen iic/usb/rs232 interface optional, display can match different interface conversion board based on customer needs.   TPM Model Number HX1851801 Brand Grahowlet Size 18.5 inch Operating Temperature 0...


Product Detail

Product Tags

Related Video

Feedback (2)

We depend on sturdy technical force and continually create sophisticated technologies to meet the demand of 8 Pcap Touch Panel , Industrial Touch Panel , Industrial Touch Screen Panel , "Making the Products of Large Quality" is definitely the everlasting purpose of our enterprise. We make unremitting endeavours to know the target of "We Will Always Hold in Pace along with the Time".
Wholesale Dealers of Mini Touch Screen - 18.5 inch lcd touch screen module – Grahowlet Detail:


     The 18.5 inch lcd touch screen module, mainly used in self-service terminal, educational multimedia terminal, advertising terminal and other fields, touch screen structure and surface AG AR AF Special effects can be customized according to customer demand, capacitive touch screen iic/usb/rs232 interface optional, display can match different interface conversion board based on customer needs.



TPM

Model Number HX1851801
Brand Grahowlet
Size 18.5 inch
Operating Temperature 0℃ ~ 50℃
Storage Temperature -20℃ ~ 60℃
Outline Dimension 460.00(W)x283.00(H)x14.75(D) mm
Viewing Area 410.80(W)x231.40(H) mm
Active Area 409.80(W)x230.40(H) mm
Support Systems Windows/Android/Linux etc.
Warranty 1 year

CTP

Interface Type IIC/USB
Structure G+G
Controller IC ILITEK
Touch Points 10 points
Transparency ≥85%
Surface Hardness ≥6H
Power Supply Voltage 5V

TFT

Resolution 1366×768
Interface Type LVDS
Luminance 250 cd/m²
Viewing Angle 45/45/25/40

18.5 inch lcd touch screen module
18.5 inch lcd touch screen module

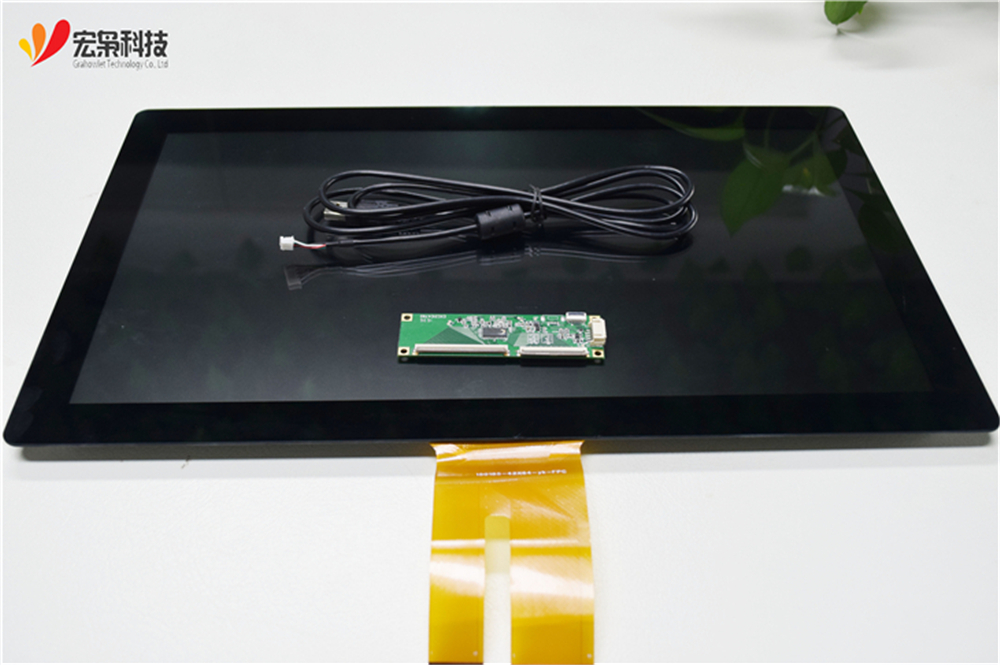

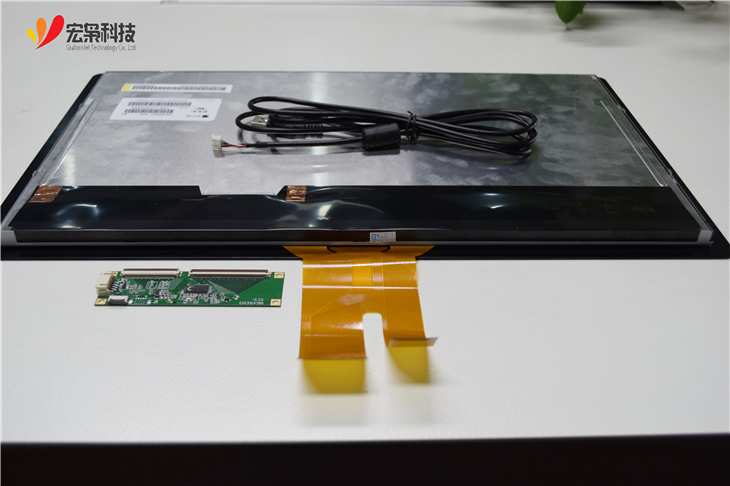

Product detail pictures:

Wholesale Dealers of Mini Touch Screen -
 18.5 inch lcd touch screen module – Grahowlet detail pictures

Wholesale Dealers of Mini Touch Screen -
 18.5 inch lcd touch screen module – Grahowlet detail pictures

Wholesale Dealers of Mini Touch Screen -
 18.5 inch lcd touch screen module – Grahowlet detail pictures

Wholesale Dealers of Mini Touch Screen -
 18.5 inch lcd touch screen module – Grahowlet detail pictures

Wholesale Dealers of Mini Touch Screen -
 18.5 inch lcd touch screen module – Grahowlet detail pictures
