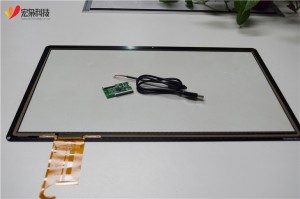

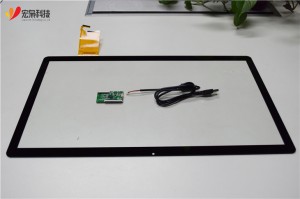

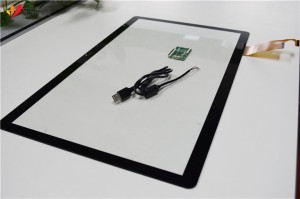

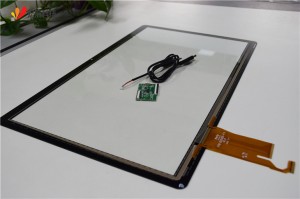

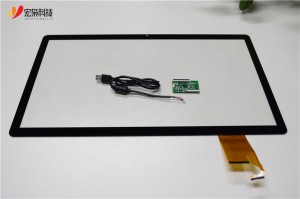

USB 21.5 inch projected capacitive touch screen panel with ILITEK controller IC

USB 21.5 inch projected capacitive touch screen panel with ILITEK controller IC

Short Description:

     The USB 21.5 inch projected capacitive touch screen panel with ILITEK controller IC can support operation with thick gloves ,thick tempered glass and thick PC on the top, mainly used in industrial, medical, outdoor advertising and other equipment. Deep customization including structural, surface treatment such as AG AR AF and other special effects are supported; All kinds if interface conversion Boards and drive Boards are provided to meet requirements from various customers. Model N...


  • Min.Order Quantity: 1 Piece/Pieces ( just for sample order )
  • Supply chain: at least 3~5 years
  • Payments: VISA,Pay Latre,L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal/cash payments etc.
  • Shipping: Support Express/Sea freight/Land freight/Air freight
  • Customization: Customized Shape/logo/packaging, etc
  • Product Detail

    Product Tags

         The USB 21.5 inch projected capacitive touch screen panel with ILITEK controller IC can support operation with thick gloves ,thick tempered glass and thick PC on the top, mainly used in industrial, medical, outdoor advertising and other equipment. Deep customization including structural, surface treatment such as AG AR AF and other special effects are supported; All kinds if interface conversion Boards and drive Boards are provided to meet requirements from various customers.

    Model Number HX2151801
    Brand Grahowlet
    Size 21.5 inch
    Interface Type USB/IIC
    Structure G+G
    Controller IC ILITEK
    Touch Points 10 points
    Transparency ≥85%
    Surface Hardness ≥6H
    Operating Environment -20℃ ~ 70℃,≤85% RH
    Storage Environment -30℃ ~ 80℃,≤85% RH
    Power Supply Voltage 5V
    Outline Dimension 510.84(W)x309.85(H)x2.70(D) mm
    Viewing Area 477.64(W)x269.11(H) mm
    Support Systems Windows/Android/Linux etc.
    Warranty 1 year

    USB 21.5 inch projected capacitive touch screen panel with ILITEK controller IC - drawing
