    gtag('config', 'AW-615648100');gtag('config', 'UA-180192430-1');// ]]>     The tft 5 lcd touch screen module，strong anti-interference and impact performance, Air bonding and optical bonding optional , works well with water onside and touch with gloves of all materials and thickness.  mainly used in industrial, automotive, medical electronics, smart home appliances and other fields, accept deep customization of the structure. Touch screen can match a variety of common operation systems;



    TPM

    		Model NumberHX0501704
    BrandGrahowlet
    Size5.0 inch
    Operating Temperature-20℃ ~ 60℃
    Storage Temperature-30℃ ~ 70℃
    Outline Dimension134.00(W)X88.00(H)X5.49(D)mm
    Viewing Area107.80(W)X64.60(H)mm
    Active Area108.00(W)X64.80(H) mm
    Support SystemsWindows/Android/Linux etc.
    Warranty1 year

    CTP

    		Interface TypeIIC/USB
    Material/StructureG+G
    Controller ICCypress
    Touch Points10 points
    Transparency≥85%
    Surface Hardness≥6H
    Power Supply Voltage2.8V ~ 3.3V

    TFT

    		Resolution800*480
    Interface TypeRGB
    Luminance200 cd/m²
    Viewing Angle50/70/70/70

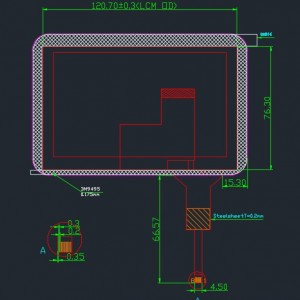

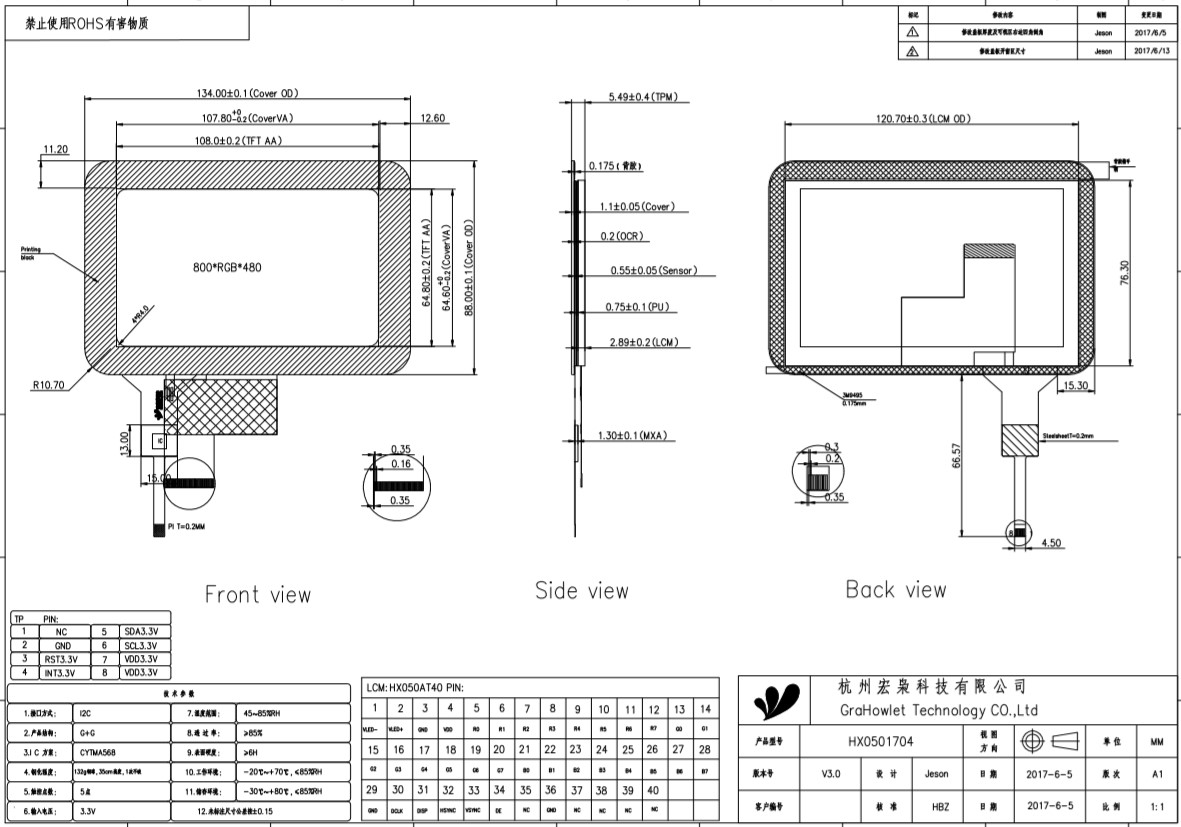

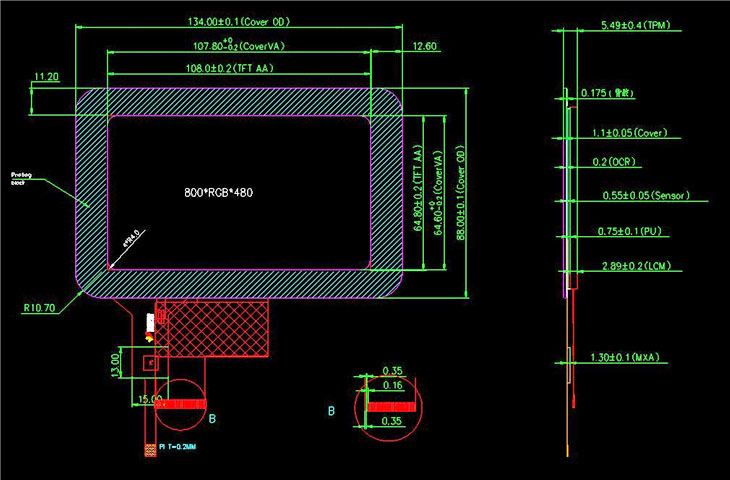

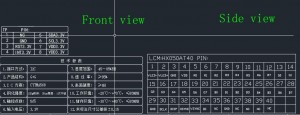

    0501704

    Product Features

     QQ截图20200304132045

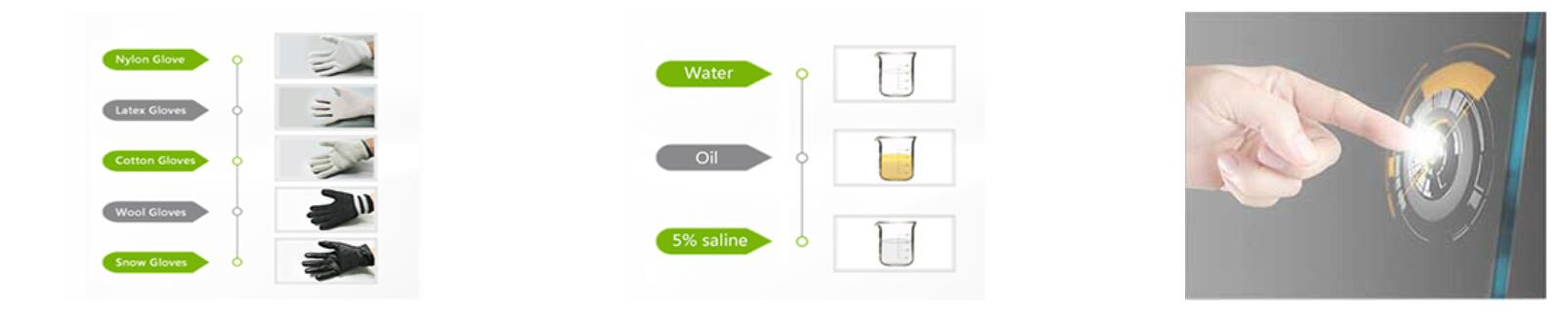

    GLOVE FUNCTION

    Support gloves made of various materials

    such as nylon,latex,cotton,plush and leather

    and of different thickness,6mm the thickest.

    		 WATER FUNCTION

     Support touch with water,oil,
     oil-water mixture and brine

       THICKNESS

     Support normal touch with thick

     cover like tempered glass,

     15mm the thickest

    Packing &Delivery

    物流与付款方式

    Technical Q & A

     Q: About the capacitive screen we are using now, the power supply interference problem is very serious. What should we do to eliminate the interference of the power supply? Apart from scanning frequency to avoid the noise frequency of the power supply, improve the signal-to-noise ratio of the screen? Is there any other way?

    A: Seeing from all current cases, power supply interference is mainly concentrated in large-size TP (7inch or above), and we have the following solutions:
    (1) Choose a quality power supply. This is very important and the most effective and fundamental way to solve power disturbances;

    (2) Frequency hopping. Use the spectrum analyzer to find the area where the common mode interference strength of the adapter is small, and then set the TX scan frequency to this area through software setting, which can effectively control the interference. If there is interference in the full frequency band, it is recommended to abandon the adapter;

    (3) Improve the signal to noise ratio. In the initial design of TP (7.0inch or above), consider using the low-impedance surface-rent material for the RX signal channel and using the design of the double-sided trace. Try to control all the channel resistances within 10K, which can effectively control the power supply interference. ;

    (4) It is also possible to change the charger, increase the algorithm filtering, and adopt Cypress, EETI, ILI schemes with strong anti-interference performance.
