TORUI Products

Custom Service

海报图

Cover Glass

未标题-8

shape
Support for special-cut,
drill hole(minimum
aperture 0.8 mm)

Color
Different colors of silkprint and LOGO screen print(UV-proof ink optional)

Brand
Options: AGC,Corning,
CG etc.

Thickness
Thickness option: 0.55,
0.7,1.0,1.1,1.8,2.0,3.0,4.0 ,5.0,6.0mm etc.

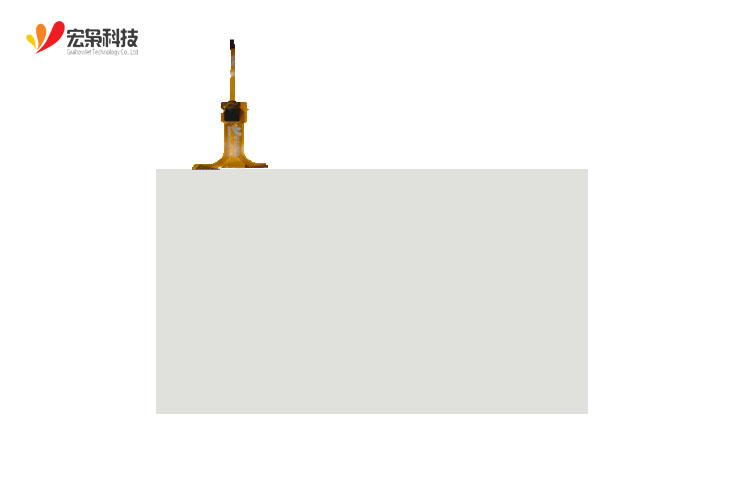

Sensor Features

Materials:Glass,fiilm,film+film

Thickness:0.005mm,0.125mm,0.4mm,0.55mm,0.7mm,1.1mm

FPC:shape design optional

IC:Cypress,Ilitek,Atmel,Focaltech,Goodix,EETI,etc

Interface:IIC,USB,SPI,RS232

Display

Partners: BOE, AUO, LNNOLux, TianMa, IVO, etc.
Category: TFT-LCD, OLED
Optical Bonding:OCA,OCR
Frame Adhension

Product Features

全球搜特殊功能图片

GLOVE FUNCTION
Support gloves made of various materials such as nylon,latex,
cotton,plush and leather and of different thickness,6mm the thickest

WATER FUNCTION
Support touch with water,oil,
oil-water mixture and brine

THICKNESS
Support normal touch with thick cover like tempered glass,15mmm the thickest

Cover glass surface treatment--AG, AR, AF

ag_副本



Anti Glare (AG) processing could eliminate screen surface mirror problem through converting
direct light to diffuse light on the touch screen.

ar_副本



AR processing means adding a type of coating that could reduce reflected light on the cover
glass,which dereases screen reflection and increases visual effects
significantly in the sun.

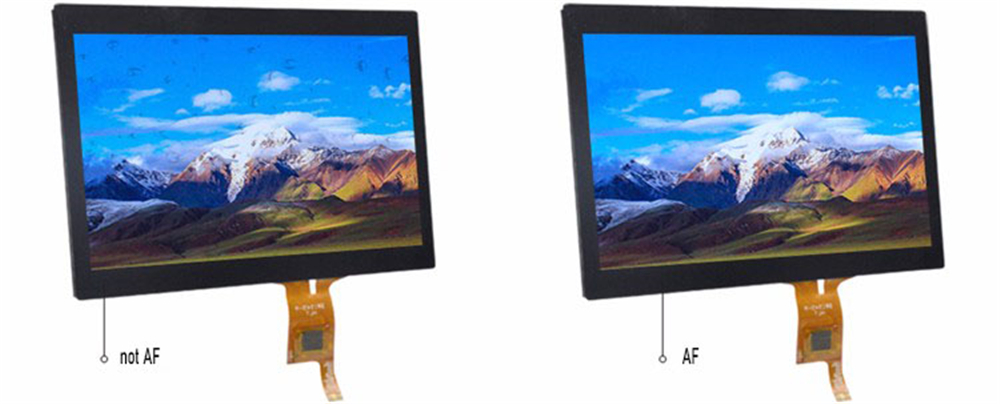

AF

AF processing is adding on the cover glass a king of coating that could increases surface smoothness,

reduces surface sliding resistance , residual water and fingerprints

on the surface significantly and improves feeling and clarity.

Module Assemble

Overall module joint processing
Spread the capacitance screen and display screen contact surface and use OCA or OCR to fit them into integrated module

ADVANTAGE

  • Strengthen visual effect in the sun and the overall impact resistant performance of the product.
  • Prolong the service life and broaden end product application environment
  • Increase shock resistance and reduce the damage rate

Frame adhesion assembly processing
Use 3M adhesive to Joint periphery of the capacitance screen frame and display screen iron frame into integral module.

ADVANTAGE

Improve the production yield and lower module assemble cast effectively

Reduce material loss and facilitate structure design and assembly
