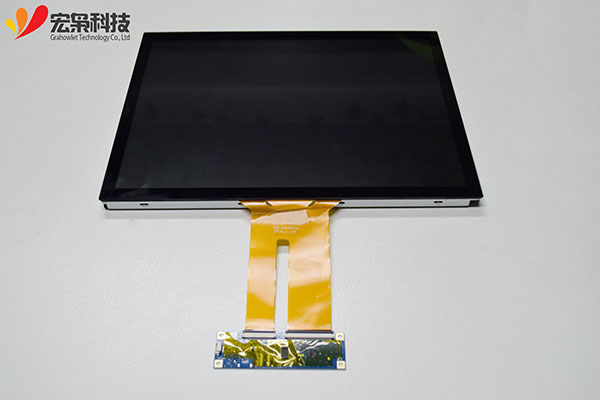

open frame 15 inch touch screen module

Short Description:


  • Min.Order Quantity: 1 Piece/Pieces ( just for sample order )
  • Supply chain: at least 3~5 years
  • Payments: VISA,Pay Latre,L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal/cash payments etc.
  • Shipping: Support Express/Sea freight/Land freight/Air freight
  • Customization: Customized Shape/logo/packaging, etc
  • Product Detail

    Product Tags

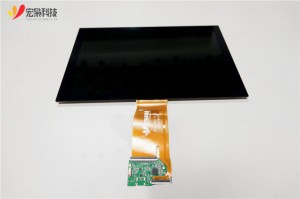

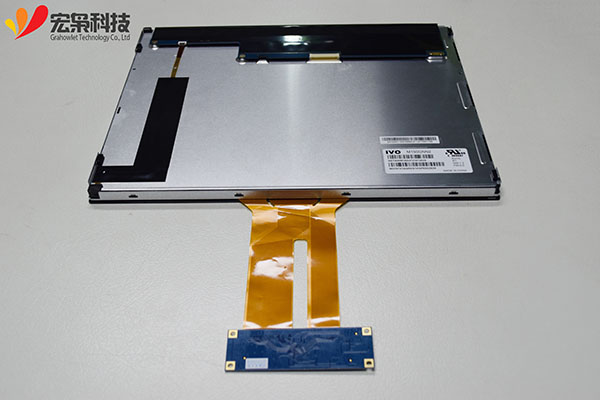

         The open frame 15 inch touch screen module with ILI2302M touch controller IC industrial application, strong impact resistance, support touch with gloves and thick tempered glass or PC material on the outside, mainly used in industry, smart home appliances, advertising terminals, medical electronics and other fields, support customization of structures, surface AG AR AF and other special effects; brightness can be customized, capacitive touch screen iic/usb/ RS232 interface optional, display can match the different interface conversion Board according to customer's requirement;

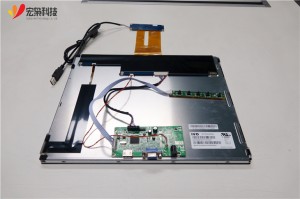

         This open frame 15 inch touch screen module is the standard product of our company. The display resolution of this capacitive touch screen module product is 1024*768. which can match the VGA or HDMI interface driver board, and the capacitive screen USB interface.It adopts GG structure solution and has very stable performance, suitable for various application environments, and the display structure is basically 1:1 design, suitable for embedded structure installation.



    TPM

    Model Number HX1501705 V1.0
    Brand Grahowlet
    Size 15 inch
    Operating Temperature -20℃ ~ 70℃
    Storage Temperature -30℃ ~ 80℃
    Outline Dimension 328.00(W)x255.00(H)x16.00(D) mm
    Viewing Area 305.00(W)x228.00(H) mm
    Active Area 304.13(W)x228.10(H) mm
    Support Systems Windows/Android/Linux etc.
    Warranty 1 year

    CTP

    Interface Type USB/IIC
    Material/Structure G+G
    Controller IC ILITEK
    Touch Points 10 points
    Transparency ≥85%
    Surface Hardness ≥6H
    Power Supply Voltage 5V

    TFT

    Resolution 1024x768
    Interface Type LVDS
    Luminance 420cd/m²
    Viewing Angle 80/80/80/80

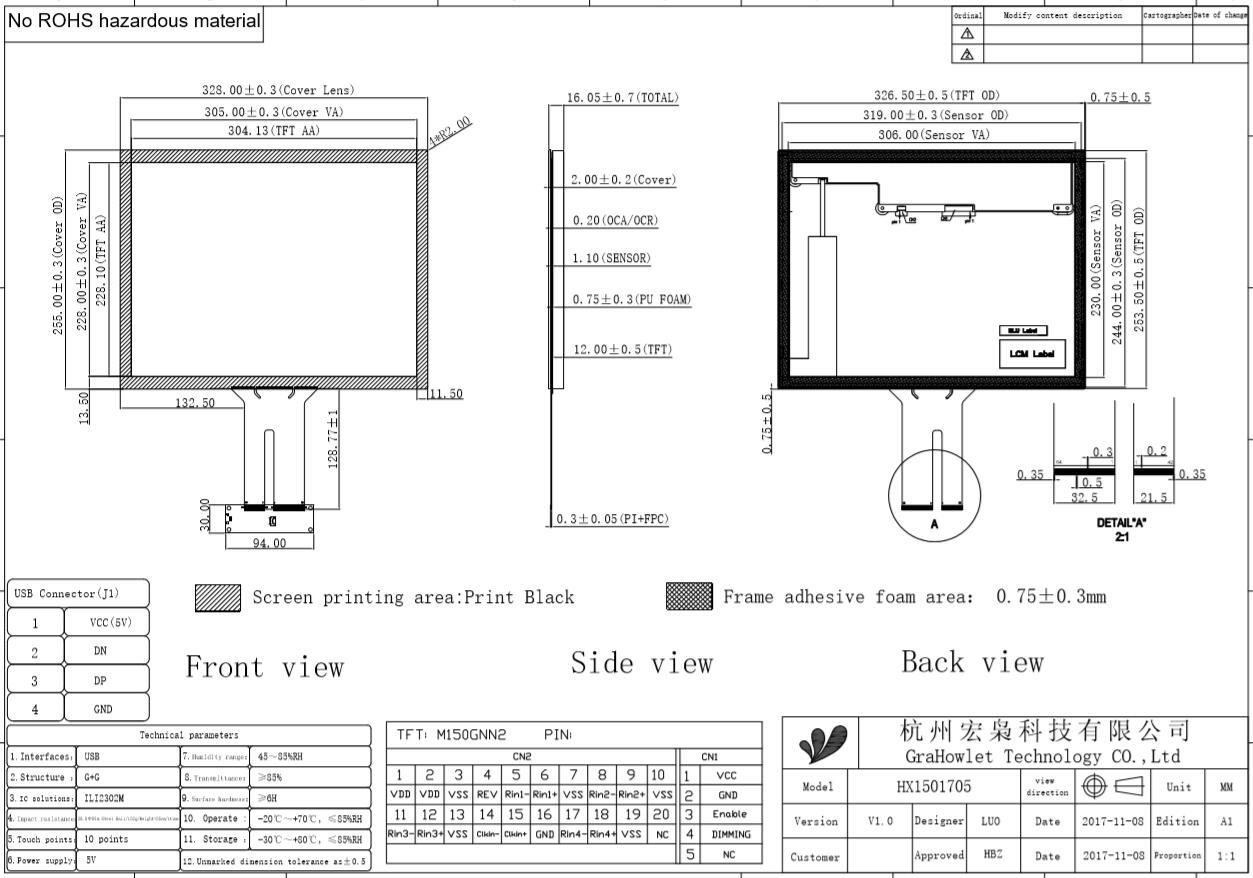

    open frame 15 inch touch screen module - drawing
