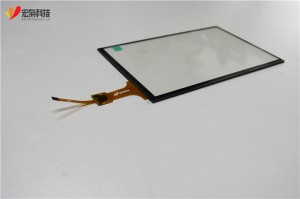

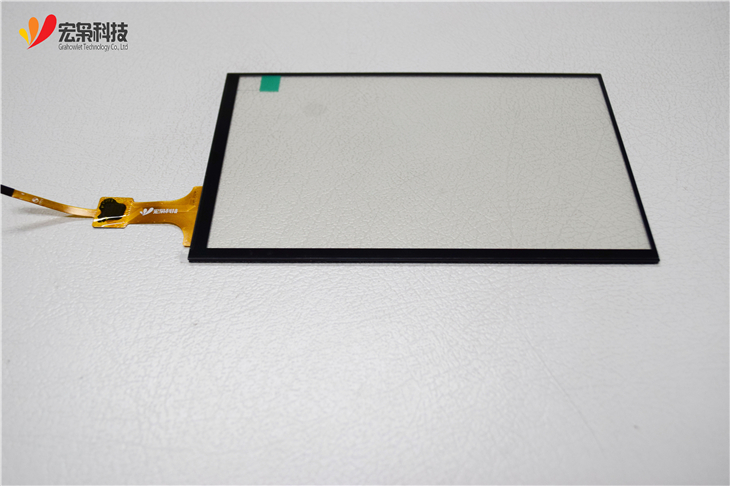

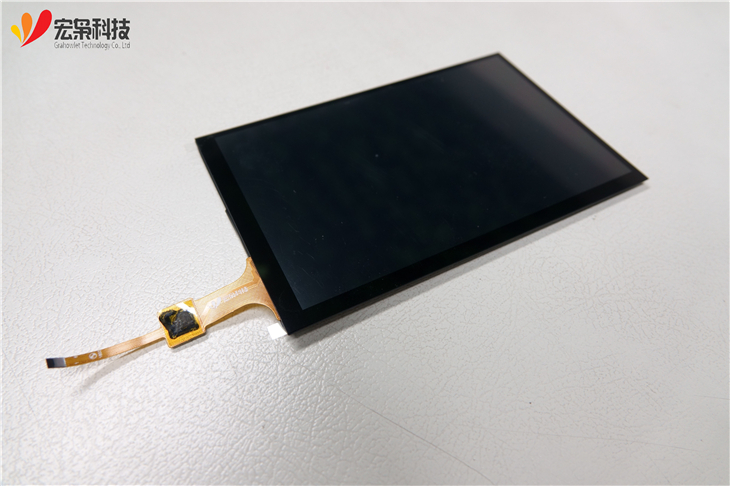

G+F+F pcap 7 inch touch screen panel with IIC/USB interface

Short Description:

  • Min.Order Quantity: 1 Piece/Pieces ( just for sample order )
  • Supply chain: at least 3~5 years
  • Payments: VISA,Pay Latre,L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal/cash payments etc.
  • Shipping: Support Express/Sea freight/Land freight/Air freight
  • Customization: Customized Shape/logo/packaging, etc
  • Product Detail

    Product Tags

         The G+F+F pcap 7 inch touch screen panel with IIC/USB interface,mostly used in consumer electronics, G+F+F structure, The main applications are in intelligent security, medical electronics, financial POS, portable mobile terminals and other fields. structural parts and special treatment of the surface can be customized. resolution, brightness and other parameters can be done according to the actual situation;

         The product uses Focaltech IC design solution.We can provide the driver board to use USB interface. It realizes the drive-free function, plug and play. At present, it is mainly used in medical electronics, face recognition and other field.

    Product Description

    Customize CTP/CTP+ LCD DISPLAY 1.3-65 inch

    Full range of standard product in stock (no need customization)

    PCAP(projected capacitive)

    Model Number:HX0701711
    Size:7.0 inch
    Operating Temperature:-20℃ ~ 70℃,≤85% RH
    Outline Dimension:104.50(W)x162.00(H)x1.13(D) mm
    Viewing Area:95.20(W)x151.52(H) mm
    Support Systems:Windows/Android/Linux etc.
    Warranty:1 year

    Light Transmittance:≥85%
    Surface Hardness:≥6H
    Interface Type:IIC/USB
    Touch Controller IC:FocalTech
    Touch Points:1-10 Points
    Power Supply Voltage:2.8V ~ 3.3V


    Interface Type:MIPI
    Luminance:300 cd/m²
    Viewing Angle:ALL

    Custom Service

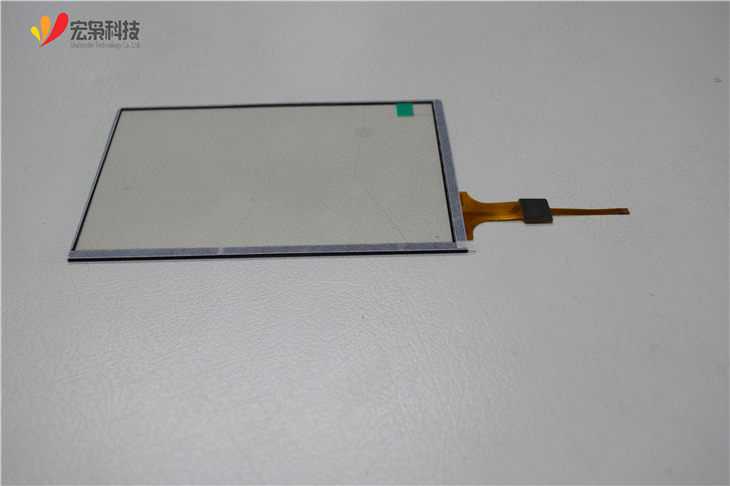

    G+F+F pcap 7 inch touch screen panel with IIC/USB interface - custom service

    If you want USB interface, we can supply IIC to USB Bridgeboard

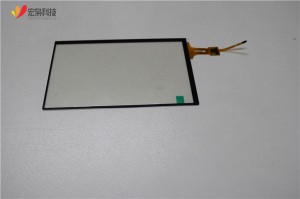

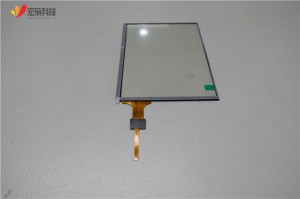

    G+F+F pcap 7 inch touch screen panel with IIC/USB interface -custom

    Q1:Can you provide OEM service?
    A:yes, we can provide both OEM and ODM service,can customize products according to the drawings you supply.
    Q2: Is your company a real manufacturer?
    A:Our company is a comprehensive service provider of capacitive touch screen in developing and manufacturing for many industries, we have our long-term business factories but the solution design & products developing and software debugging are all completed by ourselves. you are warmly welcomed to visit our factory anytime.
    Q3: How is the quality of the product?
    A:Our products have been strictly tested high quality by QC before shipping to customers
    Q4: Does the product only use for industry?
    A:Our products use in medical, internet of things, vehicle-mounted industry, intelligent household, outdoor equipment and many other industries.
    Q5: How can I trust your product quality?
    A:We have more than 10 years experience in touch screen industry.  From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by ROHS.
    by using our products, customers' products(overall equipment) have been approved by CE, CCC, explosion-proof, RHOS, FDA etc.
