Explosion-proof touch screen 3mm cover glass 8 inch capacitive tft lcd touch screen module

Explosion-proof touch screen 3mm cover glass 8 inch capacitive tft lcd touch screen module

Short Description:

The explosion-proof touch screen 3mm cover glass 8 inch capacitive tft lcd touch screen module with Cypress touch controller IC can support operation with gloves, water , and working well with additional 10mm thick tempered glass on the top. Mainly used in industrial, home appliances, medical, outdoor terminals and other fields. Deep customization service supported and a variety of interface converting & drive boards available, which is convenient for customers to use. This explosion-proo...


  • Min.Order Quantity: 1 Piece/Pieces ( just for sample order )
  • Supply chain: at least 3~5 years
  • Payments: VISA,Pay Latre,L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal/cash payments etc.
  • Shipping: Support Express/Sea freight/Land freight/Air freight
  • Customization: Customized Shape/logo/packaging, etc
  • Product Detail

    Product Tags

    The explosion-proof touch screen 3mm cover glass 8 inch capacitive tft lcd touch screen module with Cypress touch controller IC can support operation with gloves, water , and working well with additional 10mm thick tempered glass on the top. Mainly used in industrial, home appliances, medical, outdoor terminals and other fields. Deep customization service supported and a variety of interface converting & drive boards available, which is convenient for customers to use.

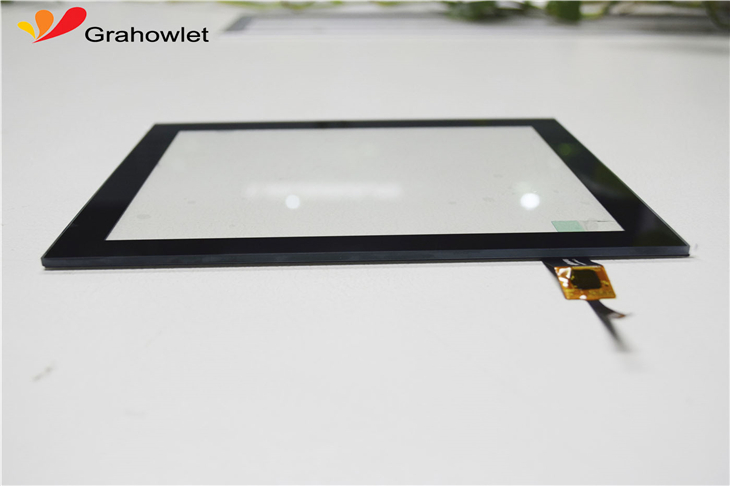

    This explosion-proof  8-inch capacitive touch screen module with a surface of 3mm tempered glass , it can meet the test standards of IK8, it has good impact resistance, display interface is RGB, and independent back light supply, the module adopts the air bonding process, the capacitive touch screen interface is IIC, adopts the Cypress solution, It has excellent anti-interference performance. it is more suitable for some applications with complex application environment, and the application surface is very wide

    2

    MODULE PRODUCT DETAILS

    Model Number:HX0801809
    Size:8.0 inch
    Operating Temperature:-20℃ ~ 70℃
    Storage Temperature:-30℃ ~ 80℃
    Outline Dimension:183.00(W)x141.00(H)x8.55(D) mm
    Viewing Area: 163.00(W)x122.50(H) mm
    Active Area:162.00(W)x121.50(H) mm
    Support Systems:Windows/Android/Linux etc
    Warranty:1 year

    1

    PCAP(projected capacitive)

    Light Transmittance:≥85%
    Surface Hardness:≥6H
    Interface Type:IIC/USB
    Structure:Glass+Glass
    Controller IC:Cypress
    Touch Points:1-10 Points
    Power Supply Voltage:2.8V ~ 3.3V

    TFT(LCD DISPLAY)

    Resolution:800X600
    Interface Type:RGB/HDMI/VGA
    Luminance:900 cd/m²
    Viewing Angle:70/70/50/70

    Our Company

    Hangzhou Grahowlet Technology is a comprehensive service provider of capacitive touch screen module and TFT LCD display for various industries. In order to meet different requirements of worldwide customers, Grahowlet supply all kinds of product structures such as G + G, G + F (G + F + F ),P + G, etc. and various technical support programs such as Cypress , Atmel, EETI,FocalTech, Goodix etc. according to different application environments. We provides solutions that match all customers’ touch screen needs and create products based on multiple technologies. We are committed to supply global customers with first-class products and professional technical services in the touch industries. Our products are of high stability and anti-interference performance and used in various industries with complicated and difficult conditions.

    Technical Q&A
    Q: Under what circumstances will the optical bonding touch screen module solution be considered?
    A: 1. If the customer has higher requirements for the overall beauty of the product, they can consider the optical bonding because the whole black effect of the whole module is very good after the optical bonding;
    2. If the customer's product itself has high requirements such as anti-shock effect and impact resistance in its working environment, the optical bonding solution can be considered;
    3. If the customer's product is used outdoors and have certain requirements on the visual effect of the Sun and the stability of the hot & cold shocks and the overall structure, the optical bonding plan needs to be considered;
    Q: For the product with outdoor application environment , which needs to meet the requirement of sunlight readable , What should be paid attention to when selecting models?
    A: 1. It is necessary to consider the wide temperature working temperature of the capacitive touch screen and the display screen, at least -20 to 70 degrees should be met, the final decision should be made depending on the actual product application environment;
    2. If the power consumption is important and the cost is not so strictly limited, the best choice is semi-transparent display screen. If the cost and size is important, the display screen must meet the requirements of highlighting;
    3. The capacitive touch screen cover glass can be done with AG or AR + AF. As for whether the display and touch should be optical bonded, it is not a “must” but a bonus.
    Q: Many industrial customers used resistive touch screens or untouched ones before, for the upgrade of projects, they may be the first time to deal with capacitive screens and don't have much understanding of the adjustment and functional application of capacitive screens, how did you serve this kind of customers in the early stage?

    A: There are some customers who have just get involved in the capacitive screen products. In view of this situation, we usually cooperate in two situations:First, if the project schedule is rather tense, we usually provide drive-free solutions directly. We can convert the IIC interface of the capacitive screen into the USB interface for direct application, we can also convert the display screen into various interface like VGA or HDMI for direct application, so that customers can save early time in early stage of development;Second, if the project schedule is relatively abundant, we usually provide professional debugging data to the customer technicians, and then the specialized technicians in our company wil assist the customer in technical debugging. We have a professional technical team to do a good job of technical services in this area.
