capacitive multi 24 inch touch screen with USB interface
gtag('config', 'AW-615648100');gtag('config', 'UA-180192430-1');// ]]> The capacitive multi 24 inch touch screen with USB interface,use ILITEK touch controller ic, support operation with thick gloves ,thick tempered glass and thick PC on the top, glass+glass struture,mainly used in industrial, medical, outdoor advertising and other equipment. Deep customization including structural, surface treatment such as AG AR AF and other special effects are supported; All kinds if interface conversion Boards and drive Boards are provided to meet requirements from various customers.
The capacitive multi 24 inch touch screen can match the applications of all 24-inch brands display with 1920*1080 resolution . We have TN and IPS material display screens to choose from. Both general brightness and high-brightness schemes are available.
| Model Number | HX2401702 |
| Brand | Grahowlet |
| Size | 24.0 inch |
| Interface Type | USB |
| Structure | G+G |
| Controller IC | ILITEK |
| Touch Points | 10 points |
| Transparency | ≥85% |
| Surface Hardness | ≥6H |
| Operating Environment | -20℃ ～ 70℃,≤85% RH |
| Storage Environment | -30℃ ～ 80℃,≤85% RH |
| Power Supply Voltage | 5V |

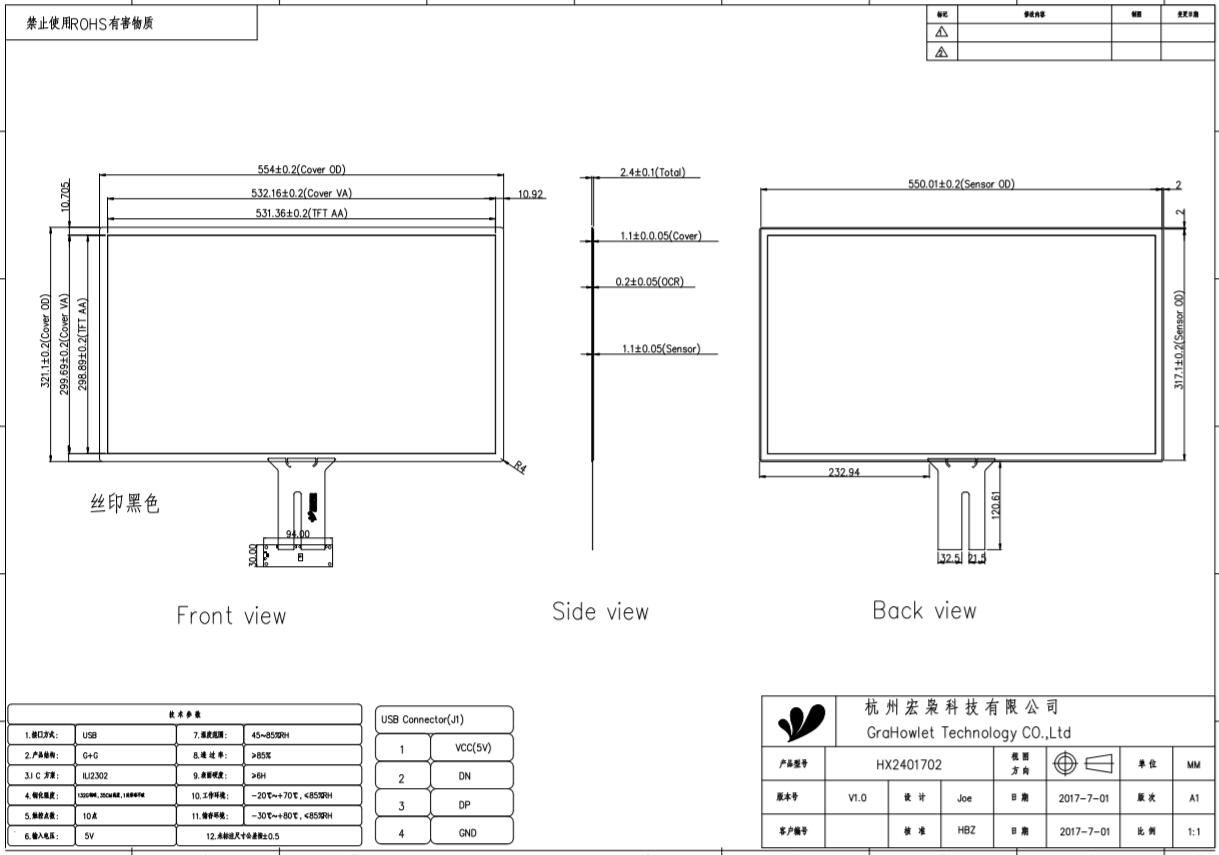

| Outline Dimension | 554.00(W)x321.10(H)x2.40(D) mm |
| Viewing Area | 532.16(W)x299.69(H) mm |
| Support Systems | Windows/Android/Linux etc. |
| Warranty | 1 year |
