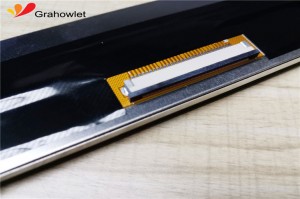

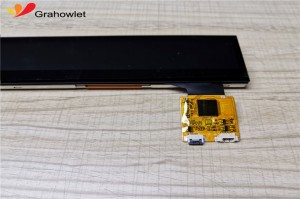

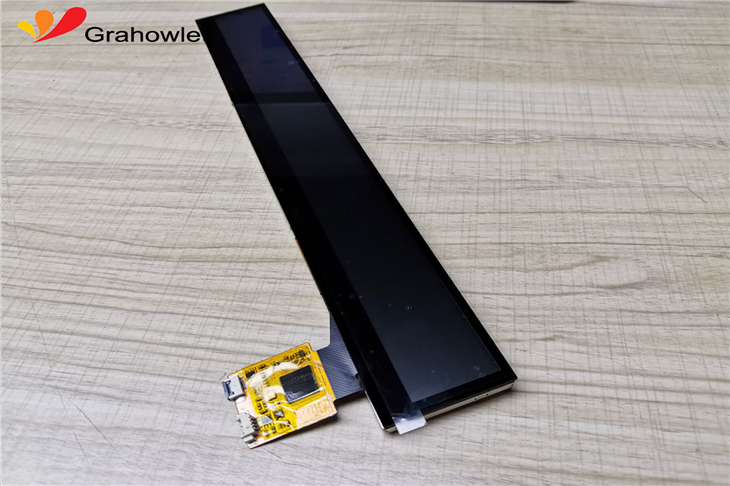

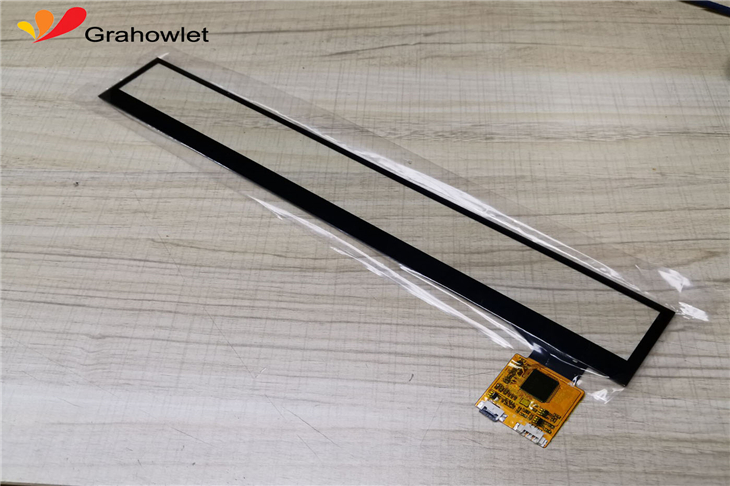

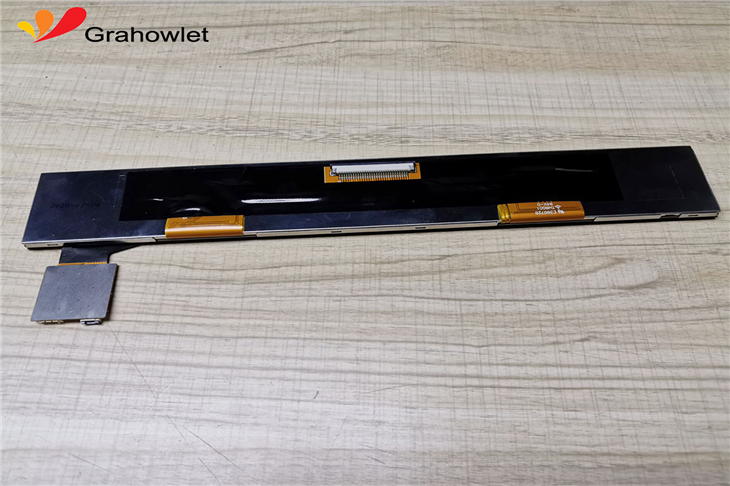

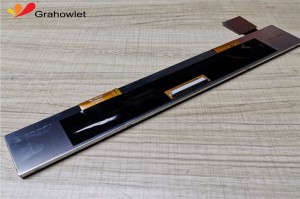

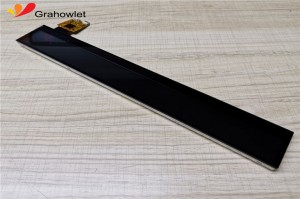

bar display 11 inch 1280×120 capacitive tft lcd touch screen module

Short Description:

  • Min.Order Quantity: 1 Piece/Pieces ( just for sample order )
  • Supply chain: at least 3~5 years
  • Payments: VISA,Pay Latre,L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal/cash payments etc.
  • Shipping: Support Express/Sea freight/Land freight/Air freight
  • Customization: Customized Shape/logo/packaging, etc
  • Product Detail

    Product Tags

    The bar display 11 inch 1280×120 capacitive tft lcd touch screen module uses G+G+TFT structure, with ILITEK touch controller ic, support operation with gloves, water , and working well with additional 10mm thick tempered glass on the top.Mainly used in medical electronics, number calling machines,, intelligent security, smart buses, supermarkets and other fields, support customization of structure and surface treatment. interface iic/usb/rs232 optional;

    This bar display 11 inch 1280×120 capacitive tft lcd touch screen module is exported directly from USB and IIC interface, RGB interface, which can be compatible with various common Operation systems, it can be equipped with drive board and cable.


    Model Number:HX1101802
    Size:11.0 inch
    Operating Temperature:-10℃ ~ 60℃
    Storage Temperature:-20℃ ~ 70℃
    Outline Dimension:288.92(W)x41.20(H)x9.9(D) mm
    Viewing Area: 281.32(W)x28.00(H) mm
    Active Area:280.32(W)x27.00(H) mm
    Support Systems:Windows/Android/Linux etc

    PCAP(projected capacitive touch)

    Light Transmittance:≥85%
    Surface Hardness:≥6H
    Interface Type:IIC&USB
    Controller IC:ILITEK
    Touch Points:1-10 Points
    Power Supply Voltage:3.3V(IIC) / 5.0V(USB)


    Interface Type:RGB
    Luminance:900 cd/m²
    Viewing Angle:70/70/70/50
    Warranty:1 year

    Technical Q&A

    Q: Under what circumstances will the optical bonding touch screen module solution be considered?
    A: 1. If the customer has higher requirements for the overall beauty of the product, they can consider the optical bonding because the whole black effect of the whole module is very good after the optical bonding;
    2. If the customer's product itself has high requirements such as anti-shock effect and impact resistance in its working environment, the optical bonding solution can be considered;
    3. If the customer's product is used outdoors and have certain requirements on the visual effect of the Sun and the stability of the hot & cold shocks and the overall structure, the optical bonding plan needs to be considered;
    Q: For the product with outdoor application environment , which needs to meet the requirement of sunlight readable , What should be paid attention to when selecting models?
    A: 1. It is necessary to consider the wide temperature working temperature of the capacitive touch screen and the display screen, at least -20 to 70 degrees should be met, the final decision should be made depending on the actual product application environment;
    2. If the power consumption is important and the cost is not so strictly limited, the best choice is semi-transparent display screen. If the cost and size is important, the display screen must meet the requirements of highlighting;
    3. The capacitive touch screen cover glass can be done with AG or AR + AF. As for whether the display and touch should be optical bonded, it is not a “must” but a bonus.
