7 capacitive touch screen
The 7 capacitive touch screen with CYTMA568 touch controller IC，Partial industrial application, strong anti-interference performance, support touch with gloves, water and thickening tempered glass or thick PC onside. mainly used in industrial, outdoor portable terminal, smart home appliances, medical electronics, automotive and other fields, surface special treatment and structure can be customized.

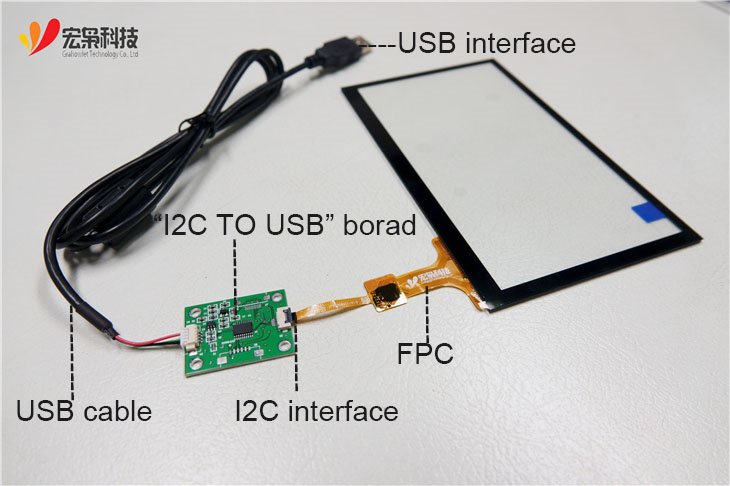

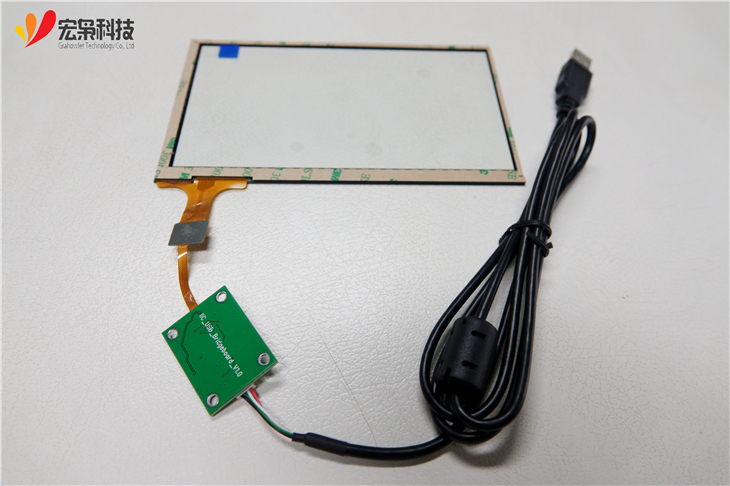

The 7 capacitive touch screen product is a standard product launched by our company for customers in the industrial field. It can support some special functions and has excellent anti-interference performance. It has black screen printing around and the interface is IIC. It can also directly export the USB interface through the IIC----USB board to achieve free drive, saving the early development cycle
| Model Number | HX0701601 |
| Brand | Grahowlet |
| Size | 7.0 inch |
| Interface Type | IIC/USB |
| Structure | G+G |
| Controller IC | Cypress |
| Touch Points | 10 points |
| Transparency | ≥85% |
| Surface Hardness | ≥6H |
| Operating Environment | -20℃ ～ 70℃,≤85% RH |
| Storage Environment | -30℃ ～ 80℃,≤85% RH |
| Power Supply Voltage | 2.8V ～ 3.3V |

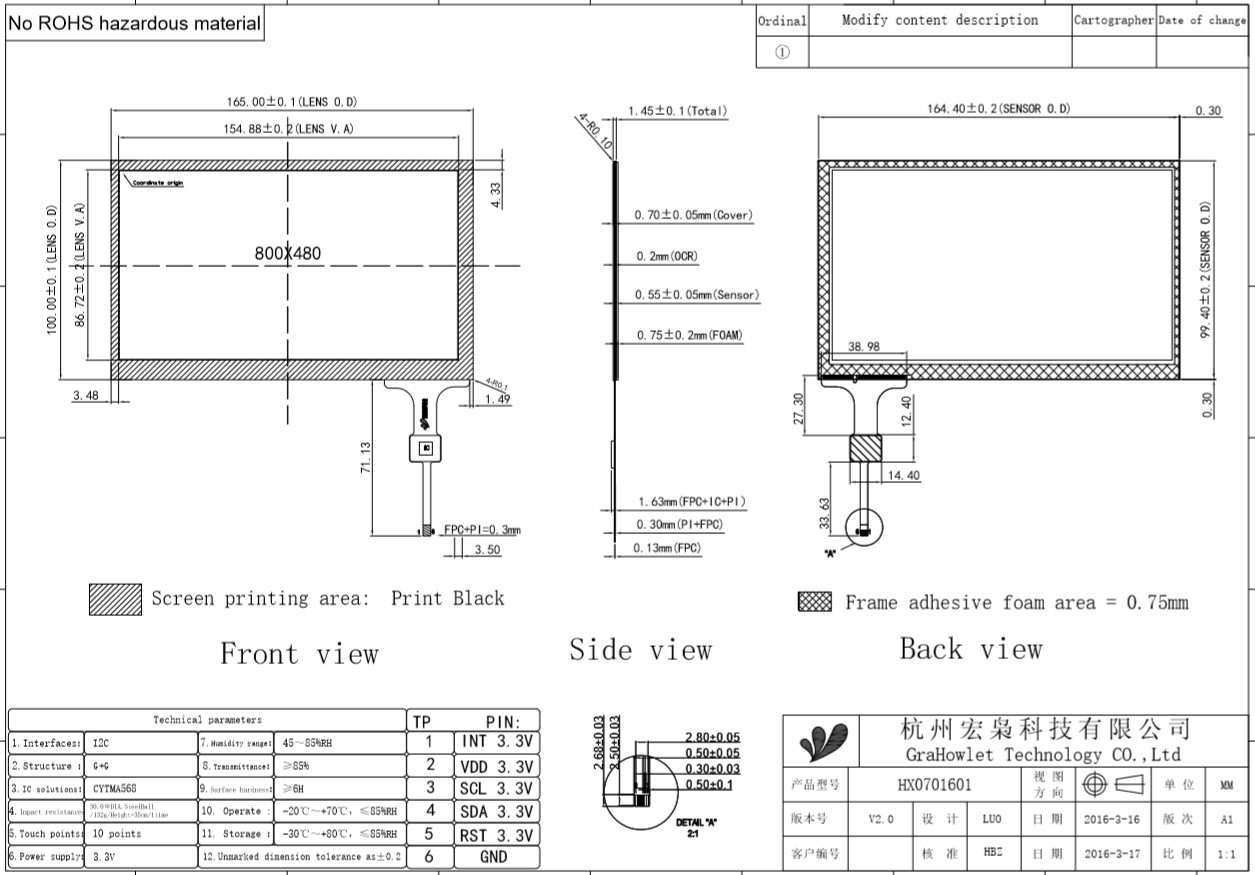

| Outline Dimension | 165.00(W)x100.00(H)x1.45(D) mm |
| Viewing Area | 154.88(W)x86.72(H) mm |
| Support Systems | Windows/Android/Linux etc. |
| Warranty | 1 year |
