5 inch oled touch screen module

Short Description:

  • Min.Order Quantity: 1 Piece/Pieces ( just for sample order )
  • Supply chain: at least 3~5 years
  • Payments: VISA,Pay Latre,L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal/cash payments etc.
  • Shipping: Support Express/Sea freight/Land freight/Air freight
  • Customization: Customized Shape/logo/packaging, etc
  • Product Detail

    Product Tags

         The touch panel of  5 inch oled touch screen module  is projected capacitive touch panel,it uses GT5688 controller IC ,G+F+F stureture,This touch screen surface is AF processed.The display of 5 inch oled touch screen module is AUO oled display,with 720*1280 resolution,MIPI interface.We can provide "MIPI TO HDMI" dridge board . Optical bonding is used between the capacitive touch screen and the OLED display.



    Model NumberHX0501802
    Size5.0 inch
    Operating Temperature-20℃ ~ 70℃
    Storage Temperature-30℃ ~ 70℃
    Outline Dimension72.20(W)X133.30(H)X2.18(D)mm
    Viewing Area62.72(W)X110.88(H)mm
    Active Area61.92(W)X110.08(H) mm
    Support SystemsWindows/Android/Linux etc.
    Warranty1 year


    Interface TypeIIC/USB
    Controller ICGT5688
    Touch Points10 points
    Surface Hardness≥6H
    Power Supply Voltage2.8V ~ 3.3V


    Interface TypeMIPI
    Luminance275 cd/m²
    Viewing AngleALL

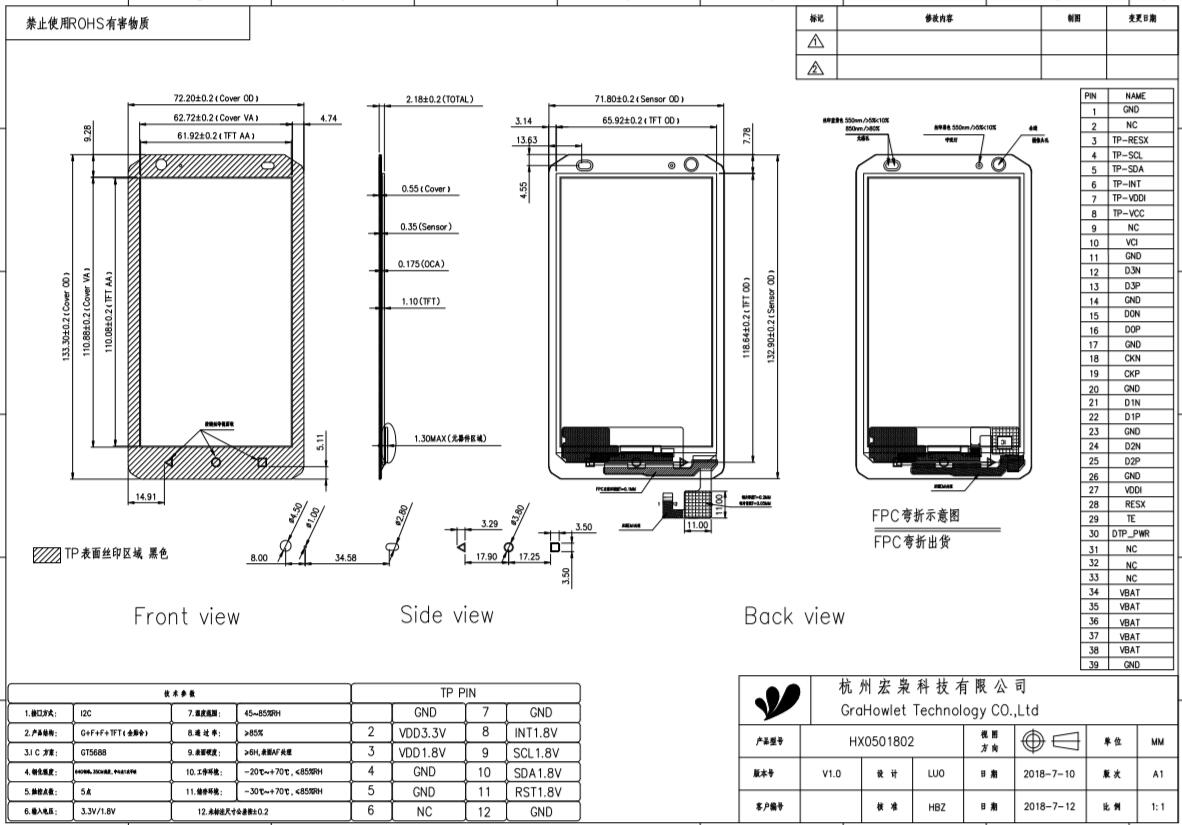

    5 inch oled touch screen module - drawing

    Custom Service

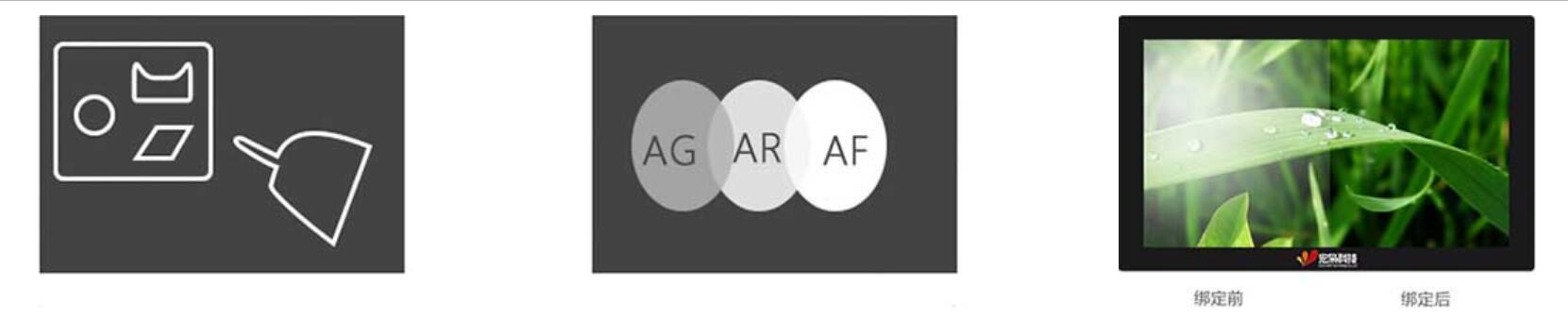

    Effect feature

    Cover Shape

    Support contour cutting including round,curve, polygons or other irregularshape----meet customers’ different requirements.

    Optical effect

    Cover glass can be treated with AG, AR, AF and other special optical process to meet application environment of outdoor use & sunlight readable.


    Optical bonding and air bonding optional. Optical bonding will Greatly improve the impact resistance, waterproof, dustproof and so on.

    Q1:Can you provide OEM service?
    A:yes, we can provide both OEM and ODM service,can customize products according to the drawings you supply.
    Q2: Is your company a real manufacturer?
    A:Our company is a comprehensive service provider of capacitive touch screen in developing and manufacturing for many industries, we have our long-term business factories but the solution design & products developing and software debugging are all completed by ourselves. you are warmly welcomed to visit our factory anytime.
    Q3: How is the quality of the product?
    A:Our products have been strictly tested high quality by QC before shipping to customers
    Q4: What kind of delivery method you always choose?
    A:DHL/FedEx/UPS/EMS/TNT is accepted, and it is better if you have your own freight agency. For mass order, we will choose ship by sea.
    Q5:What is the lead time of the products?
    A:3-5 working days for Samples in stock after receiving payment. 4-6 weeks for bulk orders.
