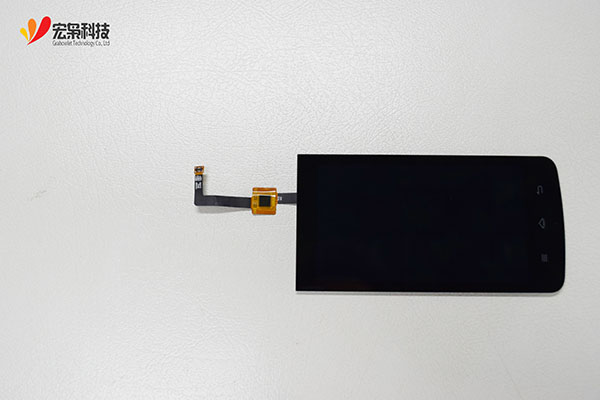

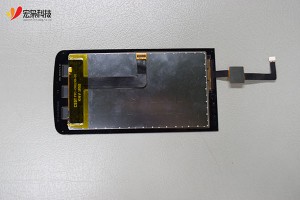

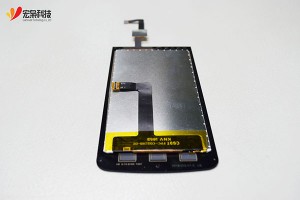

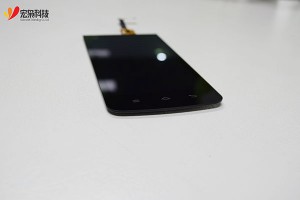

5 inch capacitive touch screen lcd module

Short Description:


  • Min.Order Quantity: 1 Piece/Pieces ( just for sample order )
  • Supply chain: at least 3~5 years
  • Payments: VISA,Pay Latre,L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal/cash payments etc.
  • Shipping: Support Express/Sea freight/Land freight/Air freight
  • Customization: Customized Shape/logo/packaging, etc
  • Product Detail

    Product Tags

    gtag('config', 'AW-615648100');gtag('config', 'UA-180192430-1');// ]]>     The 5 inch capacitive touch screen lcd moduleStrong anti-interference performance, support touch with water on the surface, support touch with gloves of different materials and thickness. mainly used in industrial, medical electronics, smart home appliances and other fields, supporting deep customization of structures. most common operation systems are supported. touch screen IIC/USB interface optional, brightness can be customized, display can match the different interface conversion board according to the requirement.



    TPM

    Model NumberHX0501706
    BrandGrahowlet
    Size5.0inch
    Operating Temperature0℃ ~ 50℃
    Storage Temperature-20℃ ~ 60℃
    Outline Dimension133.70(W)X71.92(H)X3.21(D)mm
    Viewing Area110.68(W)X62.52 (H)mm
    Active Area110.08 (W)X61.92 (H) mm
    Support SystemsWindows/Android/Linux etc.
    Warranty1 year

    CTP

    Interface TypeIIC/USB
    Material/StructureG+G
    Controller ICCypress
    Touch Points10 points
    Transparency≥85%
    Surface Hardness≥6H
    Power Supply Voltage2.8V~3V

    TFT

    Resolution720X1280
    Interface TypeMIPI
    Luminance275 cd/m²
    Viewing AngleALL

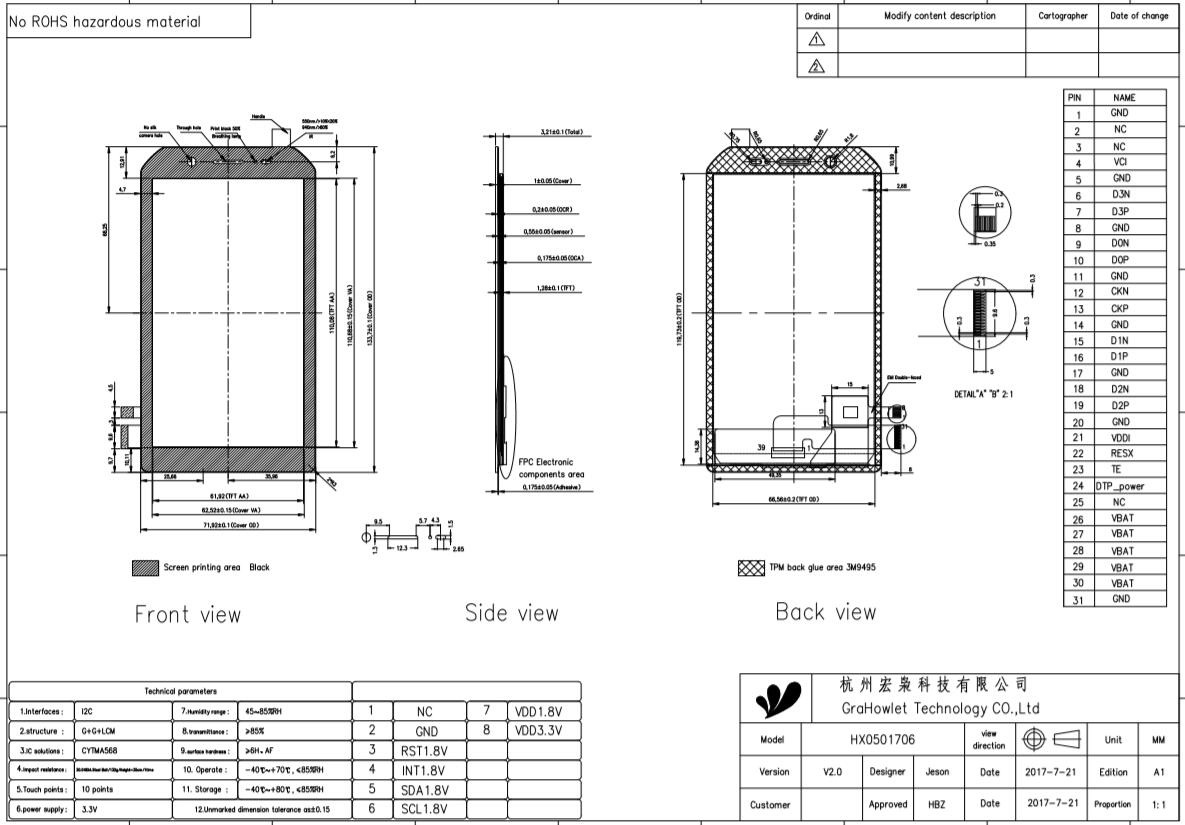

    5 inch capacitive touch screen lcd module - drawing
