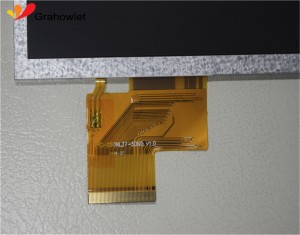

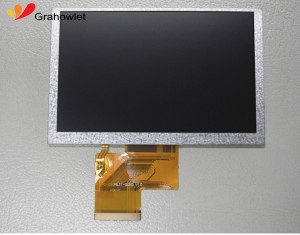

5 inch 800×480 tft lcd display with 50PINS RGB

Short Description:

  • Min.Order Quantity: 1 Piece/Pieces ( just for sample order )
  • Supply chain: at least 3~5 years
  • Payments: VISA,Pay Latre,L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal/cash payments etc.
  • Shipping: Support Express/Sea freight/Land freight/Air freight
  • Customization: Customized Shape/logo/packaging, etc
  • Product Detail

    Product Tags

    Product Description


    Model NumberHX050NL37-50ND-12A
    Size5.0 inch
    Operating Temperature-20℃ ~ 70℃
    Storage Temperature-30℃ ~ 80℃
    Outline Dimension120.70(W) × 76.30(H) × 2.80(D) mm
    Active Area108.00(W) × 64.80(H) mm
    Dot pitch(mm)0.045(W) ×0.135(H) mm
    Surface treatment Anti-Glare
    Display ModeNormally White, Transmissive IPS
    Color Depth16.7M
    Contrast Ratio800:1 (Typ)
    Response Time (ms)25ms (OFF+ON TYP)
    Interface TypeRGB(50PINS)/HDMI/VGA
    Luminance500 cd/m²
    Viewing AngleALL
    Support SystemsWindows/Android/Linux etc.
    Warranty1 year


    Our Service

    programe evsluation1 to 2 morking days
    Drawings2 to 3 working days
    Customized products3 to 4 weeks(after drawings confirmed)
    Mass Production delivery4.3 to 5 weeks
    Software debugging
    Capacity100K per month(10.1 inches as a reference)

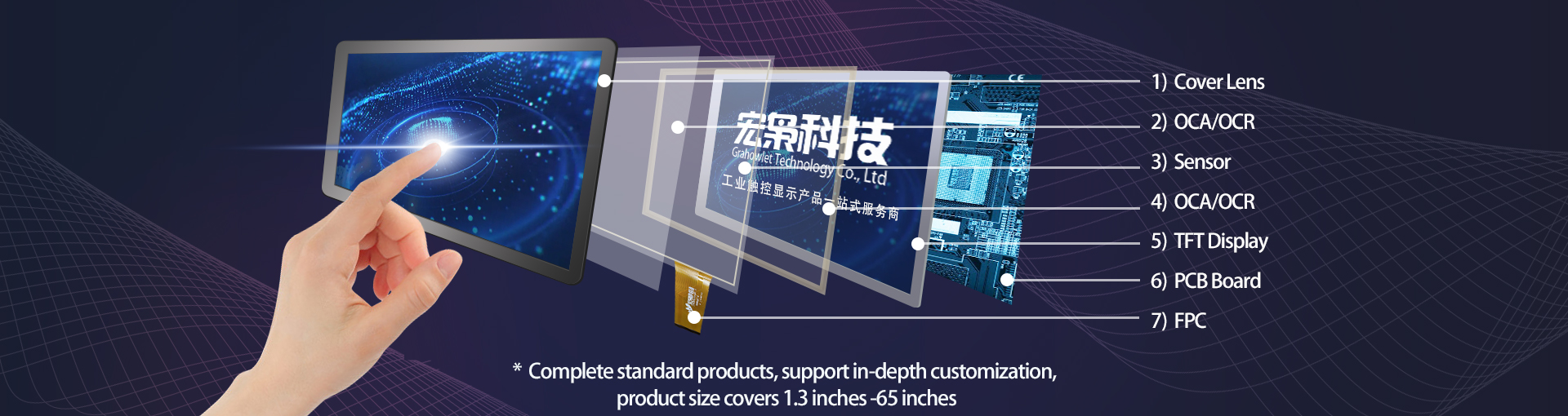

    Process capabilityG+G, G+F+F, shielding process, overall module joint process(Optical Bonding)(maximum 65 ") Cover glass surface treatment AR, AG, AF
    Technical supportEngineers to provide door-to-door or remote access service within 24 hours
    Stable supply chain for at least 3 years guarantee≥6H
    One year warranty time for all of our products
