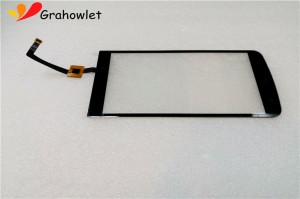

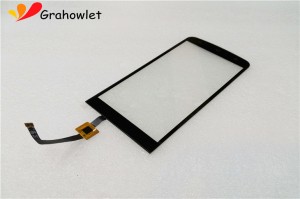

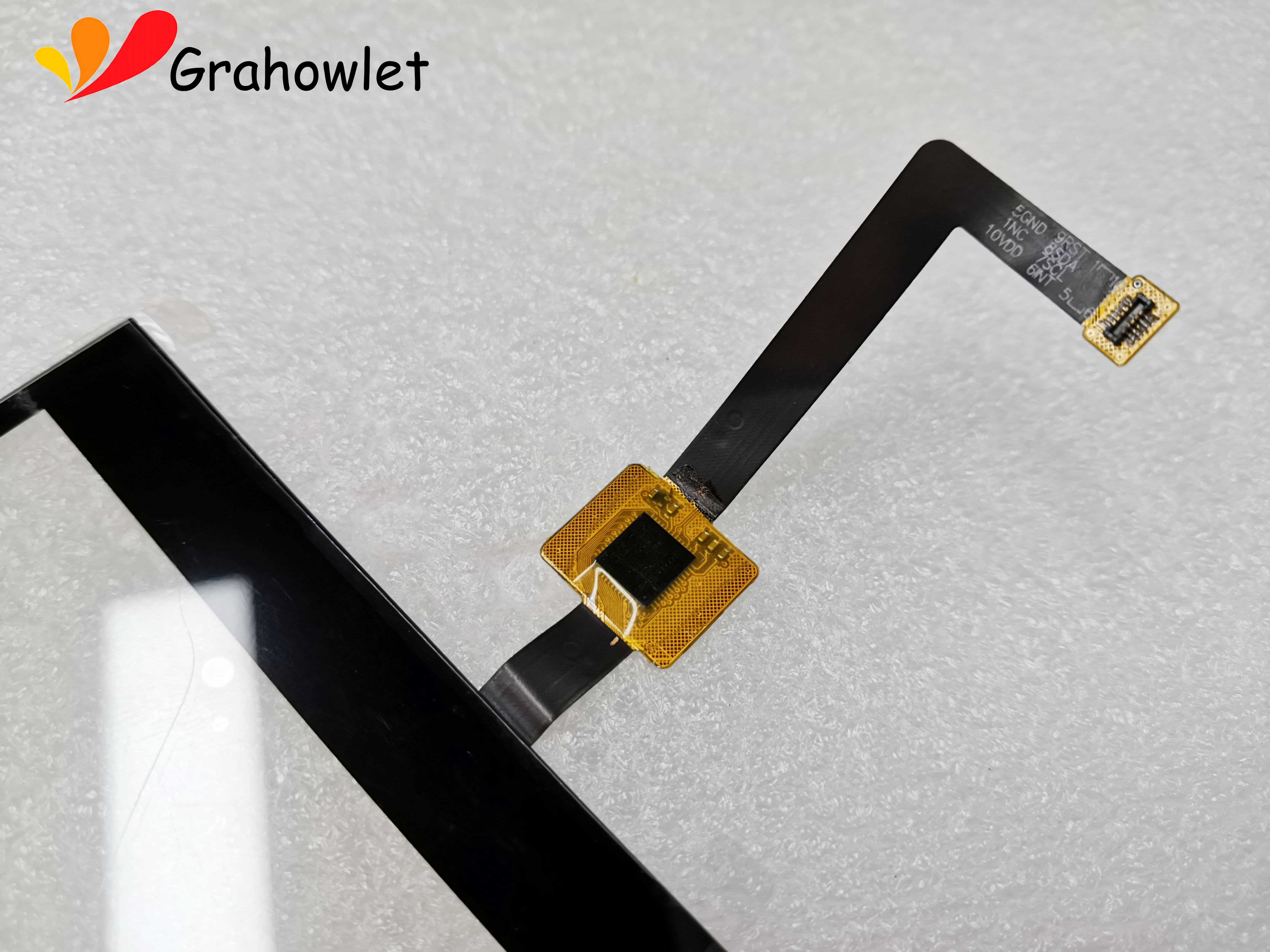

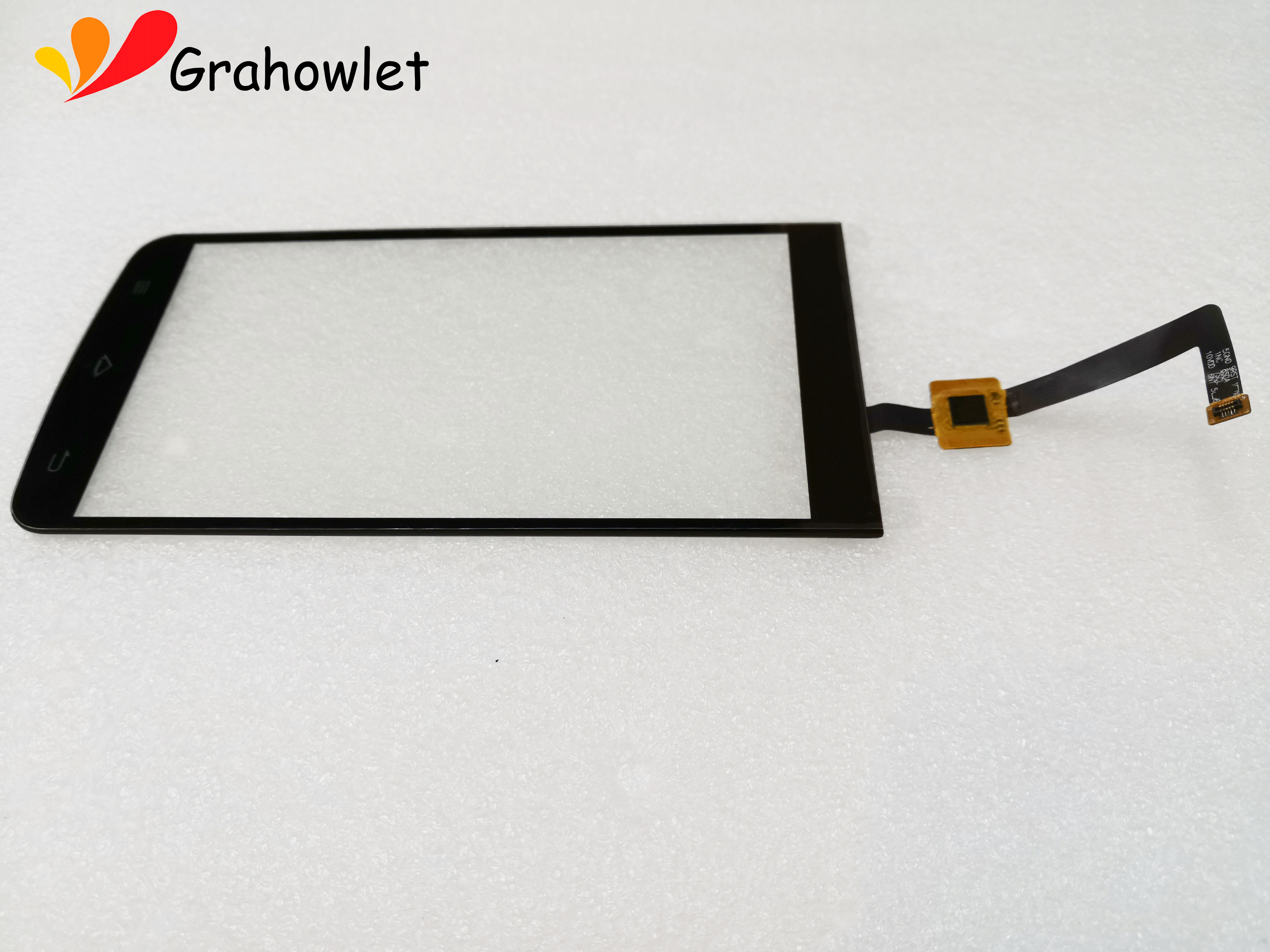

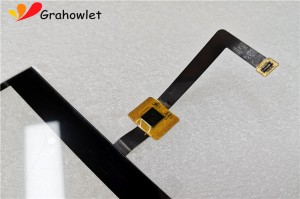

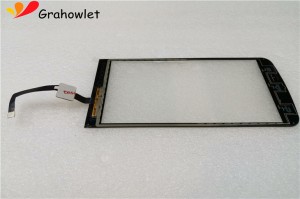

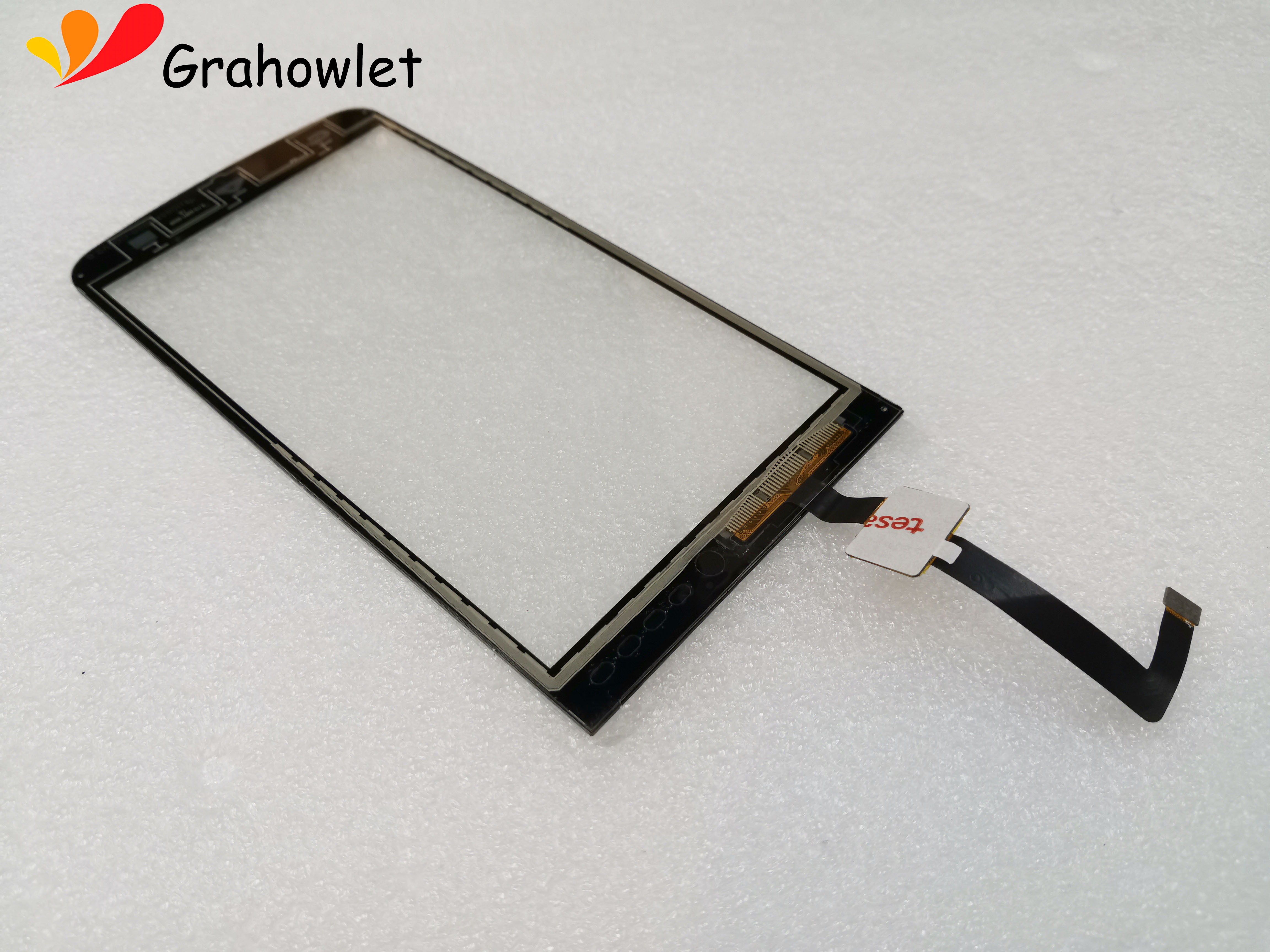

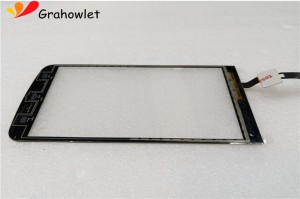

5.5 inch projected capacitive touch screen panel with IIC/USB
The 5.5 inch projected capacitive touch screen panel with IIC/USB is mostly applied in consumer electronics, Mainly used in portable handheld terminals, medical electronics, intelligent security, home appliances and other fields. Customization supported.
| Model Number | HX0551601 |
| Brand | Grahowlet |
| Size | 5.5 inch |
| Interface Type | IIC/USB |
| Structure | G+F+F |
| Controller IC | GT5688 |
| Touch Points | 1-10 points |
| Transparency | ≥85% |
| Surface Hardness | ≥6H |
| Operating Environment | -20℃ ～ 60℃,≤85% RH |
| Storage Environment | -30℃ ～ 70℃,≤85% RH |
| Power Supply Voltage | 2.8V ～ 3.3V |
| Outline Dimension | 75.12(W)x146.19(H)x1.525(D) mm |
| Viewing Area | 68.64(W)x121.56(H) mm |
| Support Systems | Windows/Android/Linux etc. |
| Warranty | 1 year |
FAQ
Q: What can Grahowlet technology do? Can you briefly introduce it?
A: The capacitive screen solution includes: Cypress , Goodix, Focal tech, ATMEL, EETI, ILI, etc. The cover lens, sensor and FPC of the touch can be customized in depth according to the actual needs of customers;
The display solution includes: the current mainstream display glass panel, and we can customize the brightness of the display screen, FPC shape, interface definition, driver IC solution according to the actual needs of customers, etc.
Q: Can you tell us about your company's main products, process and size range?
A: Our main products include: special glass cover, capacitive touch screen, LCD screen, capacitive touch screen module, supporting driving board;
Technical process: G+G structure, P+G structure and GFF structure, including flexible touch screen,
Bonding process: Air bonding & Optical bonding.
Size range from 1.3 inch to 65 inch, and there are no projects in batch production with size above 65 inch at the moment.
Q: What are the precautions for the application of capacitive touch screen made of PMMA cover?
A: As for the cover of capacitive touch screen made by PMMA material, we must consider the material of sensor, the impact of high and low temperature shock and warpage. As for the specific details, we have some mature application cases. Customers can contact with our technicians for the detailed solution and parameters according to the actual needs of specific products.
