49 inch multi capacitive touch panel
gtag('config', 'AW-615648100');gtag('config', 'UA-180192430-1');// ]]>
The 49 inch multi capacitive touch panel with ILI2315 touch controller IC , support operation with thick gloves ,thick tempered glass and thick PC on the top Mainly for industrial use, 3mm cover glass,G+G structure. Mainly used in outdoor advertising equipment, industrial equipment, commercial human-computer interaction terminals, etc. Customization of structures, surface treatment like AG AR AF and other special processing are supported. interface iic/usb/rs232 optional;

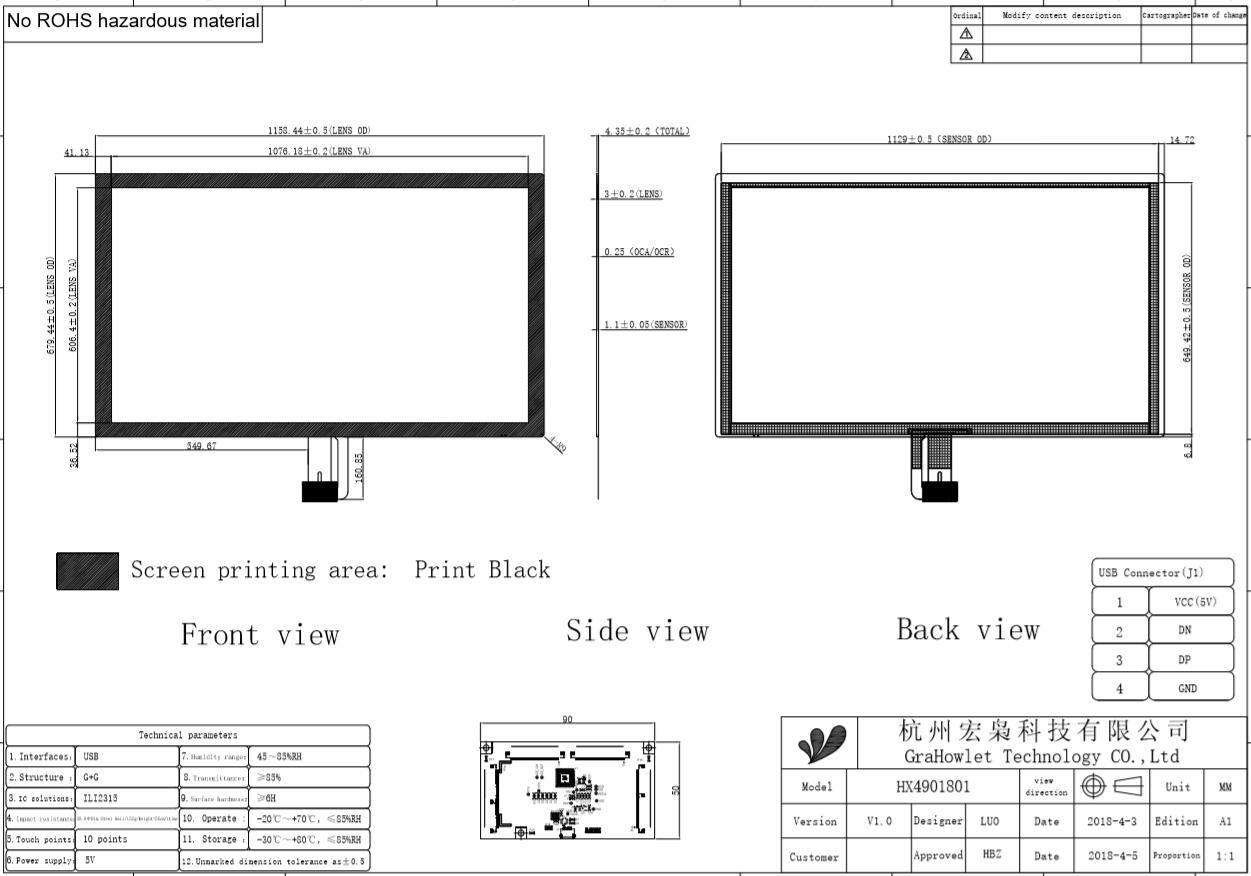

| Model Number | HX4901801 V1.0 |
| Brand | Grahowlet |
| Size | 49.0 inch |
| Interface Type | USB |
| Structure | G+G |
| Controller IC | ILI2315 |
| Touch Points | 10 points |
| Transparency | ≥85% |
| Surface Hardness | ≥6H |
| Operating Environment | -20℃ ～ 70℃,≤85% RH |
| Storage Environment | -30℃ ～ 80℃,≤85% RH |
| Power Supply Voltage | 5V |
| Outline Dimension | 1158.44(W)x679.44(H)x4.35(D) mm |
| Viewing Area | 1076.18(W)x606.40(H) mm |
| Support Systems | Windows/Android/Linux etc. |
| Warranty | 1 year |
Product Features
Capacitive touch screen has been increasingly used in various fields with rapid technology development. In order to meet different requirements of worldwide customers, Grahowlet supply all kinds of product structures such as G + G, G + F (G + F + F ),P + G, etc. and various technical support programs such as Cypress , Atmel, EETI, FocalTech, Goodix etc. according to different application environments.

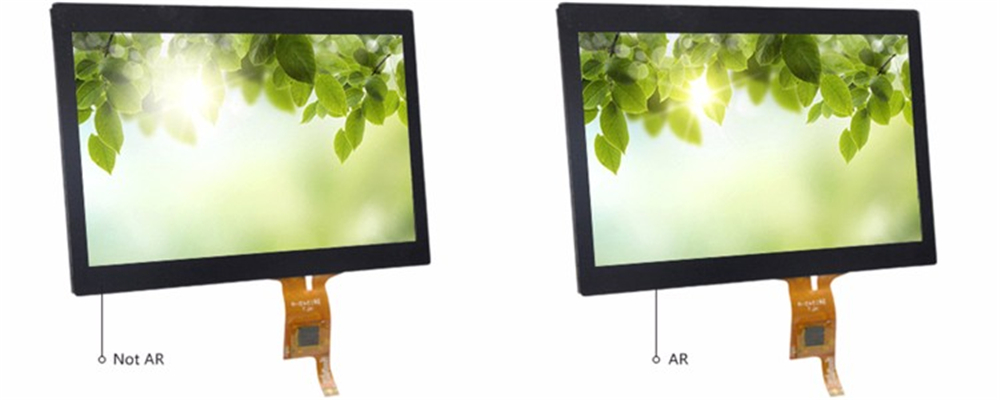

AR processing means adding a type of coating that could reduce reflected light on the cover glass,which dereases screen reflection and increases visual effects significantly in the sun.

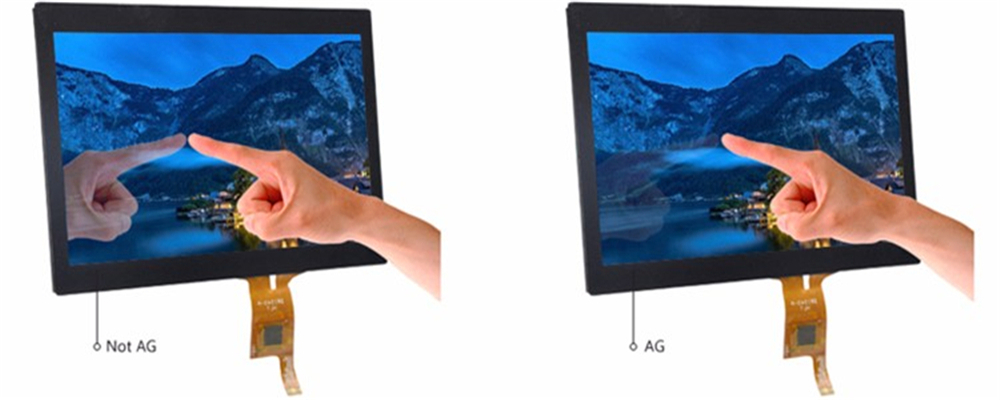

Anti Glare (AG) processing could eliminate screen surface mirror problem through converting direct light to diffuse light on the touch screen.

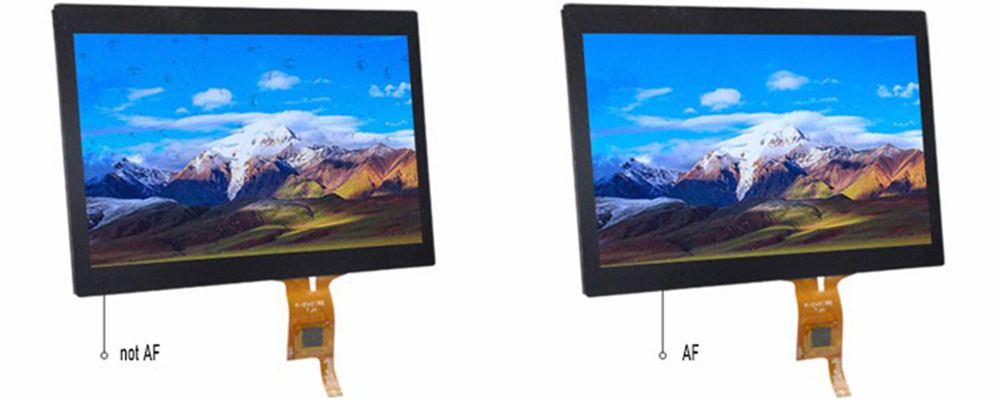

AF processing is adding on the cover glass a king of coating that could increases surface smoothness, reduces surface sliding resistance , residual water and fingerprints on the surface significantly and improves feeling and clarity.
Certifications
FAQ
Q1:Can you provide OEM service?
A:yes, we can provide both OEM and ODM service，can customize products according to the drawings you supply.
Q2: Is your company a real manufacturer?
A:Our company is a comprehensive service provider of capacitive touch screen in developing and manufacturing for many industries, we have our long-term business factories but the solution design & products developing and software debugging are all completed by ourselves. you are warmly welcomed to visit our factory anytime.
Q3: Does the product only use for industry?
A:Our products use in medical, internet of things, vehicle-mounted industry, intelligent household, outdoor equipment and many other industries.
Q4: How can I trust your product quality?
A:We have more than 10 years experience in touch screen industry. From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by ROHS.
by using our products, customers' products(overall equipment) have been approved by CE, CCC, explosion-proof, RHOS, FDA etc
