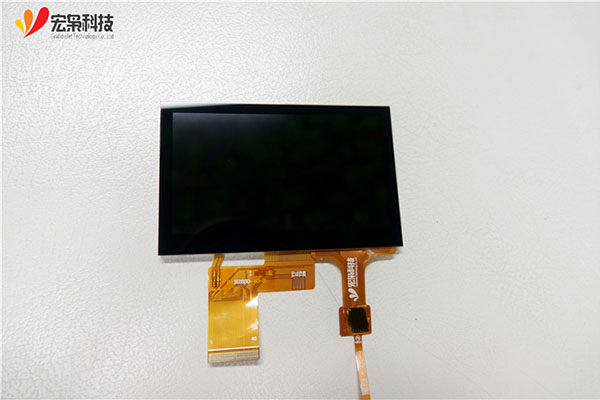

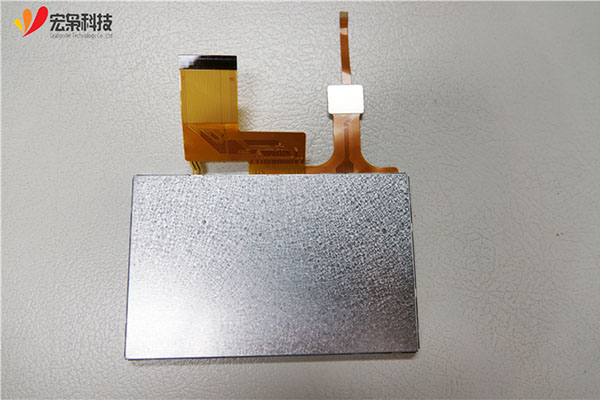

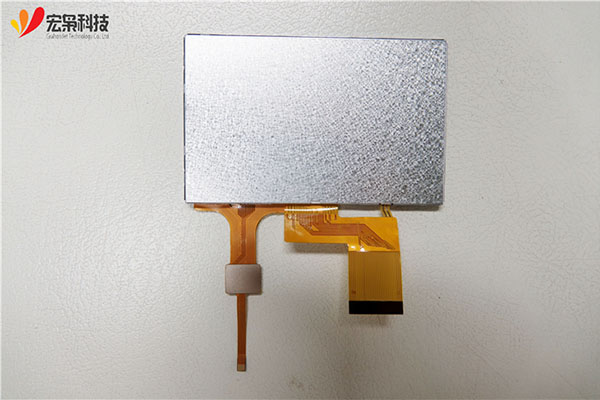

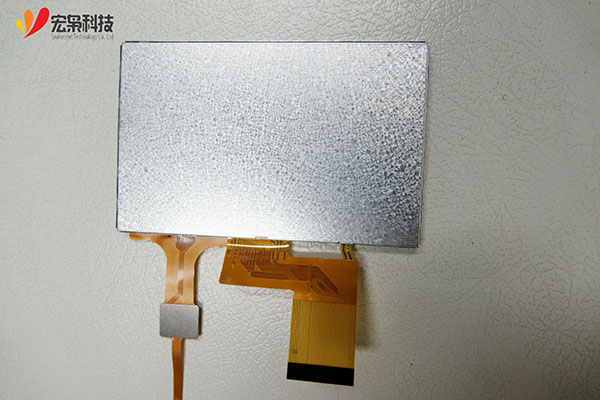

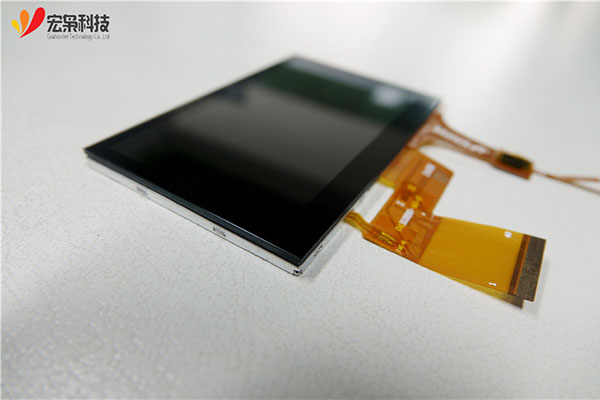

4.3 inch tft lcd screen module with capacitive touch panel

Short Description:

  • Min.Order Quantity: 1 Piece/Pieces ( just for sample order )
  • Supply chain: at least 3~5 years
  • Payments: VISA,Pay Latre,L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal/cash payments etc.
  • Shipping: Support Express/Sea freight/Land freight/Air freight
  • Customization: Customized Shape/logo/packaging, etc
  • Product Detail

    Product Tags

         The 4.3 inch tft lcd screen module with capacitive touch panel, mostly for industrial application, the touch panel with cytma568 touch controller IC,support operation with gloves, water and thickening tempered glass or PC on the top of surface. mainly used in medical, industrial, security, smart home appliances and other fields; support depth customization, including structure and surface treatment--AG AR AF.
         This 4.3-inch capacitive touch screen product is our standard product for the medical field. It has passed various certification tests of medical treatment. It has strong anti-jamming performance. It can match the applications of all 4.3-inch brands display with 480*272 resolution . We have TN and IPS material display screens to choose from. Both general brightness and high-brightness schemes are available. Air-bonding and optical-bonding process can be selected according to the actual needs of customer projects.

    Model Number HX0431603
    Size 4.3 inch
    Operating Temperature -20℃ ~ 70℃
    Storage Temperature -30℃ ~ 80℃
    Outline Dimension 105.50x67.20x5.48 mm
    Viewing Area 96.04(W)x54.86(H) mm
    Active Area 95.04(W)x53.86(H) mm
    Support Systems Windows/Android/Linux etc
    Light Transmittance ≥85%
    Surface Hardness ≥6H
    Interface Type IIC/USB
    Material/Structure Cypress
    Touch Points 10 points
    Power Supply Voltage 3.3V
    Resolution 480*272
    Interface Type RGB
    Luminance 300 cd/m²
    Viewing Angle ALL
    Warranty 1 year

    4.3 inch touch panel TFT display module with capacitive touch panel - drawing

    Our Company

    Hangzhou Grahowlet Technology is a comprehensive service provider of capacitive touch screen module and TFT LCD display for various industries. In order to meet different requirements of worldwide customers, Grahowlet supply all kinds of product structures such as G + G, G + F (G + F + F ),P + G, etc. and various technical support programs such as Cypress , Atmel, EETI,FocalTech, Goodix etc. according to different application environments. We provides solutions that match all customers’ touch screen needs and create products based on multiple technologies. We are committed to supply global customers with first-class products and professional technical services in the touch industries. Our products are of high stability and anti-interference performance and used in various industries with complicated and difficult conditions.
