24 inch touch panel display

Short Description:

  • Min.Order Quantity: 1 Piece/Pieces ( just for sample order )
  • Supply chain: at least 3~5 years
  • Payments: VISA,Pay Latre,L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal/cash payments etc.
  • Shipping: Support Express/Sea freight/Land freight/Air freight
  • Customization: Customized Shape/logo/packaging, etc
  • Product Detail

    Product Tags

         The 24 inch touch panel display, air bonding and optical bonding optional, mainly used in industrial, medical electronics, intelligent security, advertising terminals, financial terminals and other fields, accept customization of structures, surface treatment AG AR AF and other special effects processing, resolution optional, brightness can be customized, Capacitive touch screen iic/usb/rs232 interface optional, The display can match different interface conversion Board according to customer's requirement.




    Model Number HX2401802 V1.0
    Brand Grahowlet
    Size 24.0  inch
    Operating Temperature -20℃ ~ 70℃
    Storage Temperature -30℃ ~ 80℃
    Outline Dimension 556.0(W)x323.2(H)x19.7(D) mm
    Viewing Area 531.36(W)x299.29(H) mm
    Active Area 531.36(W)x298.89(H) mm
    Support Systems Windows/Android/Linux etc.
    Warranty 1 year


    Interface Type USB/IIC
    Material/Structure G+G
    Controller IC ILITEK
    Touch Points 10 points
    Transparency ≥85%
    Surface Hardness ≥6H
    Power Supply Voltage 5V


    Resolution 1920x1080
    Interface Type LVDS
    Luminance 300 cd/m²
    Viewing Angle ALL

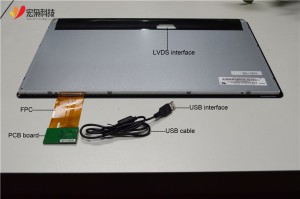

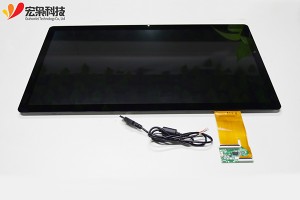

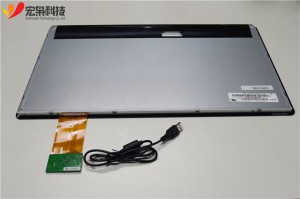

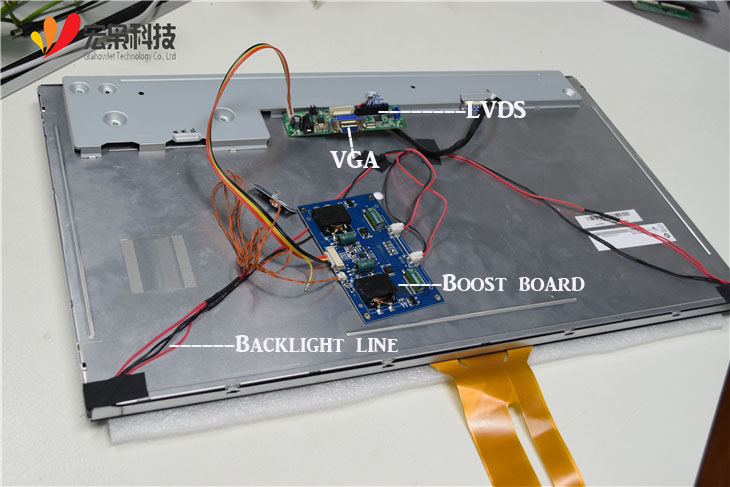

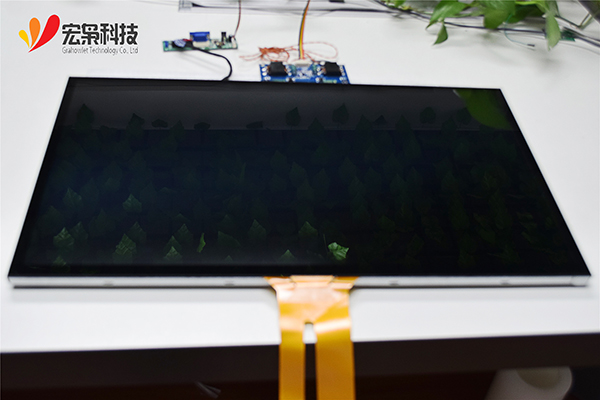

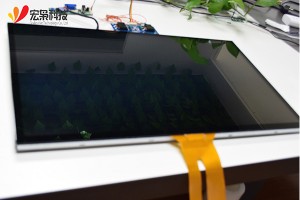

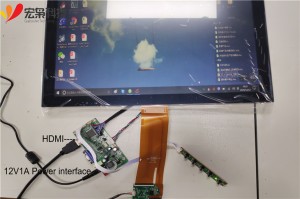

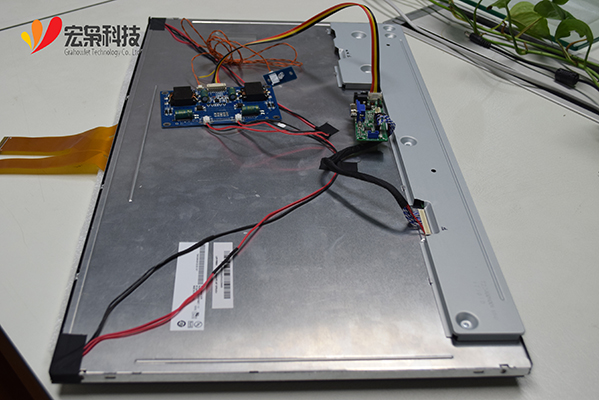

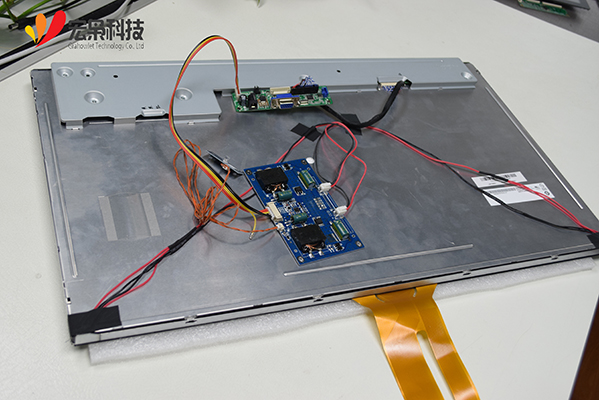

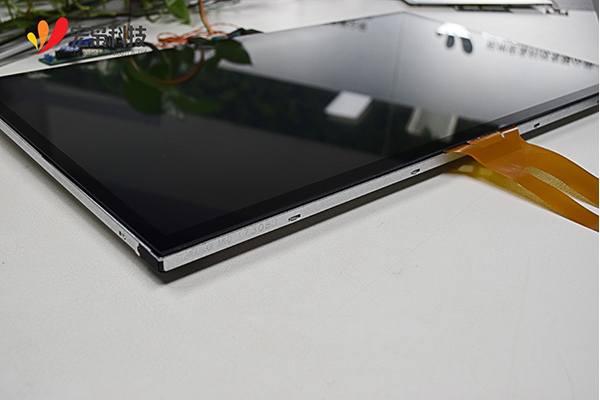

    24 inch touch panel display24 inch touch panel display


    Q1: Have you ever exported to foreign countries?

    A: We have exported to France, Norway, UK, Poland, USA, Austria, Denmark, Greece, Netherlands, Canada, Brazil, Korea, and many other countries.

    Q2: What certifications does you products complied to?

    A:ROHS, ISO9001, ISO14001, QC080000

    Q3. What is the MOQ?

    A:It depends on different products. Please keep in touch with sales to confirm the MOQ.

    Q4:Can you produce custom-made projected capacitive touch screen panel overlays?

    A:Yes, welcome to customize the projected capacitive touch screen panel products according to your requirements.

    Q5.What is the products application?

    A:Widely used in instrument, handheld devices, industrial control, medical, automotive, smart home and other fields
