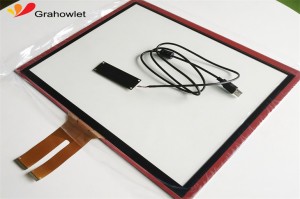

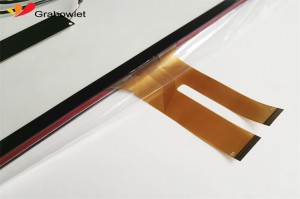

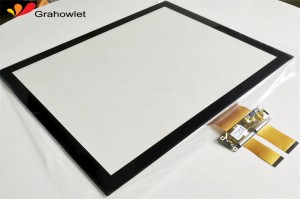

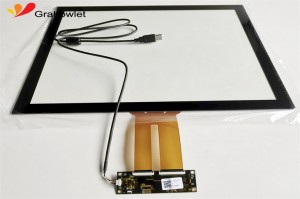

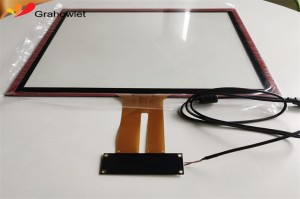

19 inch touch screen panel with usb controller board
The 19 inch touch screen panel with usb controller board is mainly used industrial application, G+G structure,ILITEK touch controoler ic,can support operation with thick gloves ,thick tempered glass and thick PC on the top, mainly used in industrial, medical, outdoor advertising and other equipment. Deep customization including structural, surface treatment such as AG AR AF and other special effects are supported; All kinds if interface conversion Boards and drive Boards are provided to meet requirements from various customers.
This 19 inch usb touch screen panel product is our standard product. It has strong anti-jamming performance. It can match lcd display with 1280x1024 resolution . We have TN and IPS material display screens to choose from. Both general brightness and high-brightness schemes are available. Air-bonding and optical-bonding process can be selected according to the actual needs of customer projects.
| Model Number | HX1901805 |
| Brand | Grahowlet |
| Size | 19.0 inch |
| Interface Type | IIC/USB/RS232 |
| Structure | G+G |
| Controller IC | ILITEK |
| Touch Points | 10 points |
| Transparency | ≥85% |
| Surface Hardness | ≥6H |
| Operating Environment | -20℃ ～ 70℃,≤85% RH |
| Storage Environment | -30℃ ～ 80℃,≤85% RH |
| Power Supply Voltage | 5.0V |

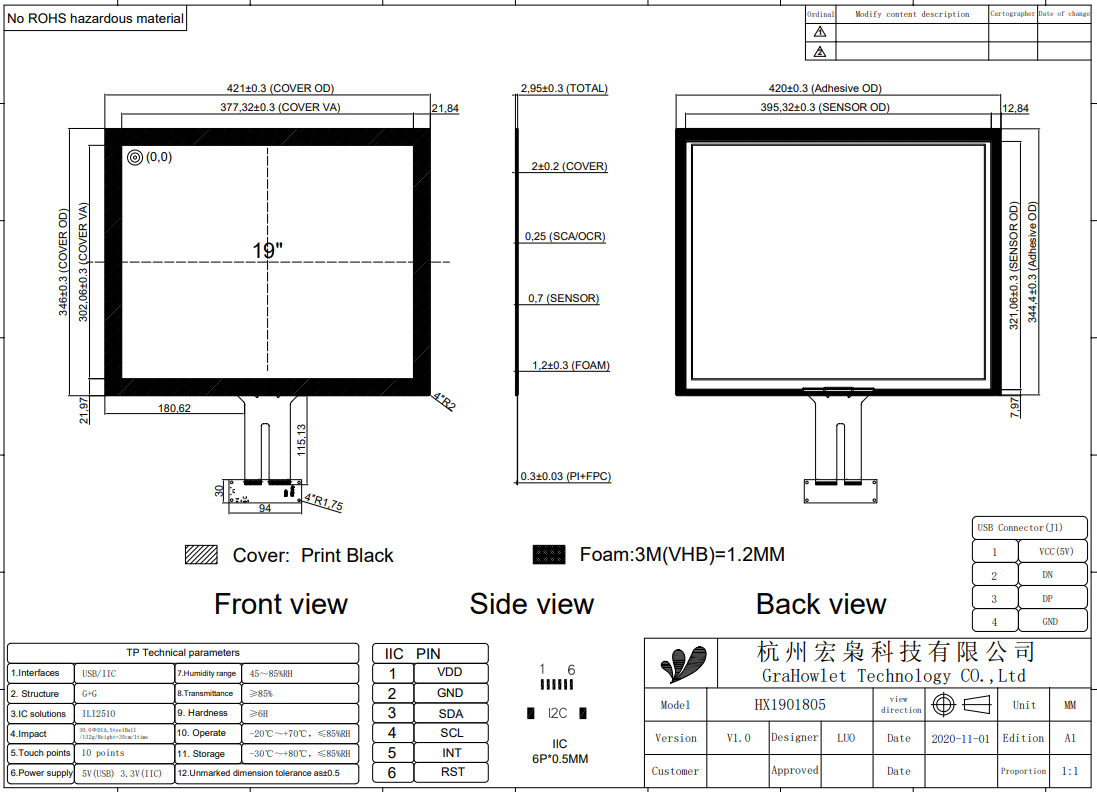

| Outline Dimension | 421.00(W)x346.00(H)x2.95(D) mm |
| Viewing Area | 377.32(W)x302.06(H) mm |
| Support Systems | Windows/Android/Linux etc. |
| Warranty | 1 year |
Technical Q&A
Q: What is the principle of capacitive touch screen to achieve multi-touch?
A: When the finger touches the capacitive screen, it affects the coupling between the two electrodes near the touch point, thus changing the capacitance between the two electrodes. When detecting the mutual capacitance, the lateral electrodes sequentially emit excitation pulse signals, and all the longitudinal electrodes receive signals at the same time, so that the capacitance values of all the intersections of the lateral and longitudinal electrodes can be obtained, that is, the capacitance of the two-dimensional plane of the entire touch screen. According to the two-dimensional capacitance change data of the touch screen, the coordinates of each touch point can be calculated. That is, the real multi-point coordinates can be calculated to realize multi-touch;
