15 inch touch screen lcd display
The 15 inch touch screen lcd display，Industrial applications, G+G structure, strong impact resistance, support operation with gloves of different kinds of materials, mainly used in industry, car, smart home appliances, intelligent security and other fields; support customization of structures, surface treatment AG AR AF and other special effects processing; brightness can be customized, capacitive touch screen iic/usb/ RS232 interface optional, and display can match different interface conversion boards according to customer requirements.
TPM | Model Number | HX1501803 V1.0 |
| Brand | Grahowlet | |
| Size | 15 inch | |
| Operating Temperature | -20℃ ~ 70℃ | |
| Storage Temperature | -30℃ ~ 80℃ | |

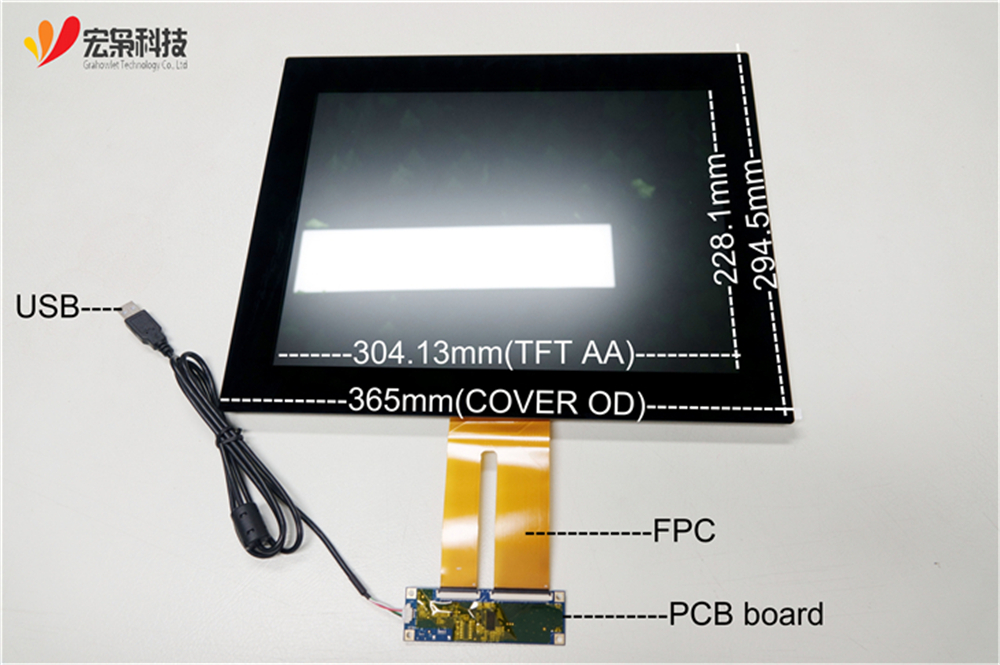

| Outline Dimension | 365.00x294.50x15.20 mm | |
| Viewing Area | 306.40x230.40 mm | |
| Active Area | 304.13(W)x228.10(H) mm | |
| Support Systems | Windows/Android/Linux etc. | |
| Warranty | 1 year | |
CTP | Interface Type | USB/IIC |
| Material/Structure | G+G | |
| Controller IC | ILITEK | |
| Touch Points | 10 points | |
| Transparency | ≥85% | |
| Surface Hardness | ≥6H | |
| Power Supply Voltage | 5V | |
TFT | Resolution | 1024x768 |

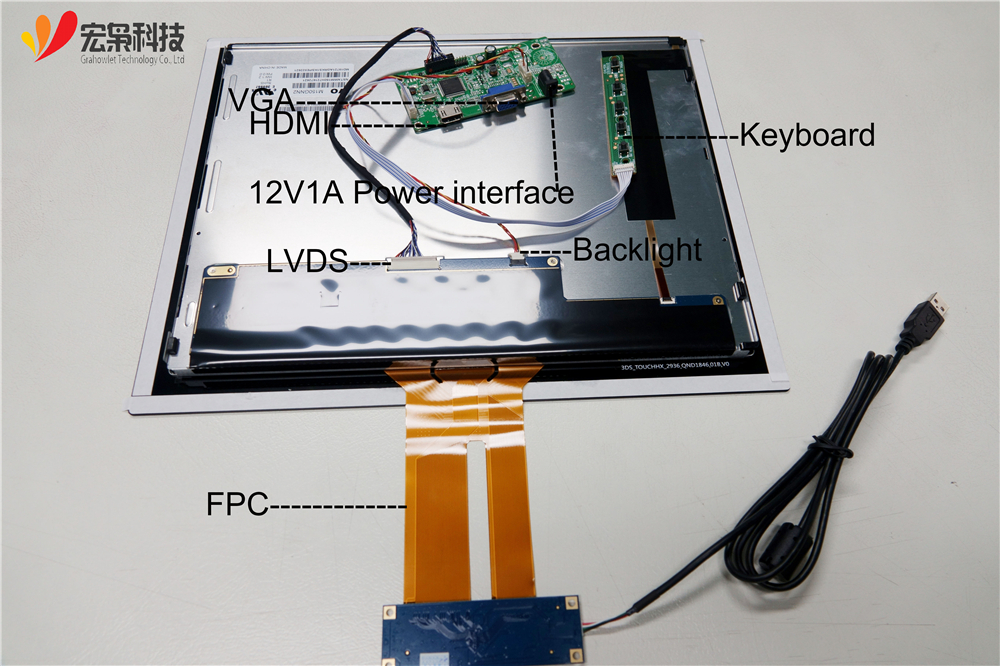

| Interface Type | LVDS/HDMI/VGA | |
| Luminance | 420cd/m² | |
| Viewing Angle | 80/80/80/80 |
