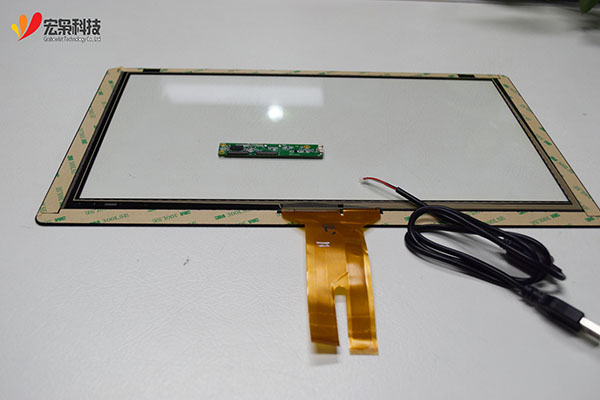

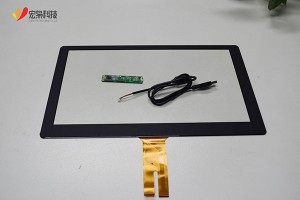

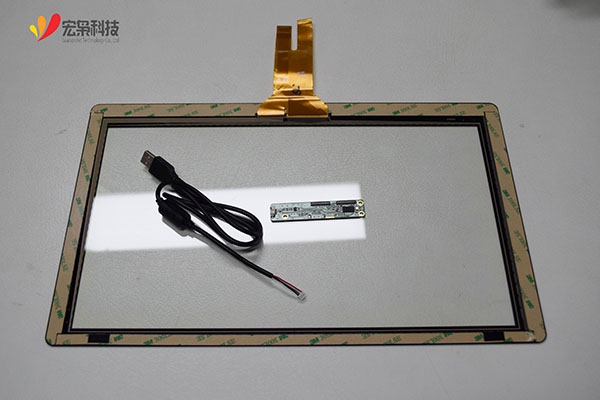

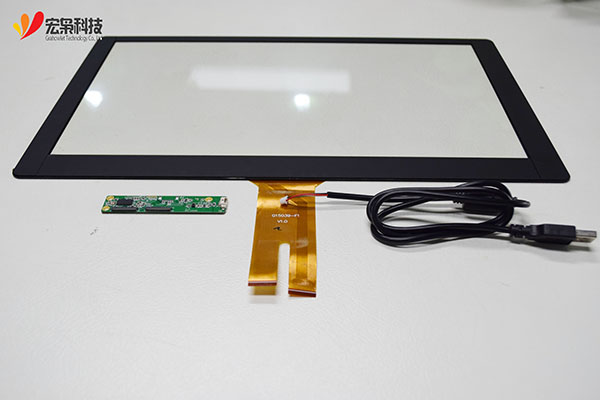

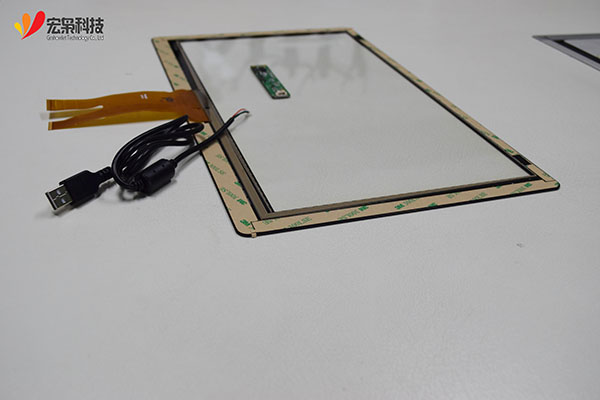

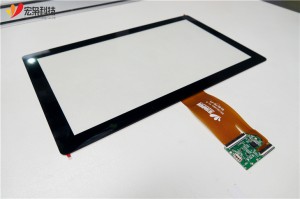

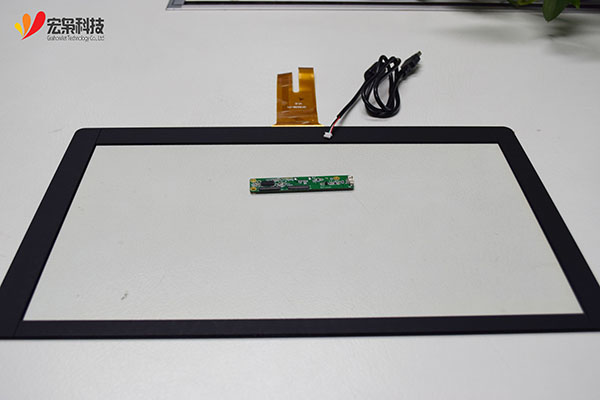

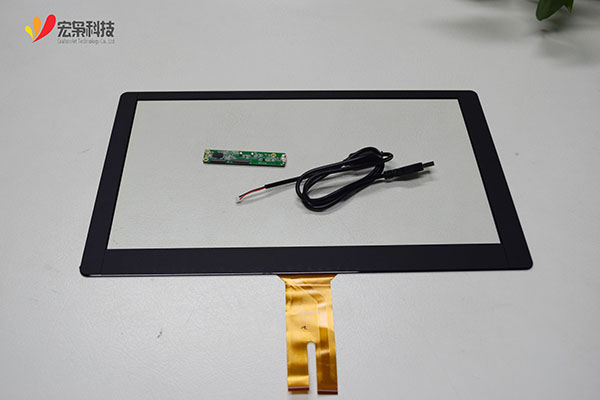

15.6 inch transparent touch screen

Short Description:

  • Min.Order Quantity: 1 Piece/Pieces ( just for sample order )
  • Supply chain: at least 3~5 years
  • Payments: VISA,Pay Latre,L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal/cash payments etc.
  • Shipping: Support Express/Sea freight/Land freight/Air freight
  • Customization: Customized Shape/logo/packaging, etc
  • Product Detail

    Product Tags

         The 15.6 inch transparent touch screen with ilitek touch controller ic, support operation with gloves, water , and working well with additional 10mm thick tempered glass on the top.Consumer electronics applications, G+G structure, mainly used in intelligent security, advertising terminals, financial portable terminals and other fields, support customization of different structures and surface treatment AG AR AF and other special effects processing, interface iic/usb/rs232 optional;

         This 15.6 inch transparent touch screen belongs to the standard module launched by our company,It has strong anti-jamming performance. It can match the applications of all 15.6-inch brands display with 1920x1080 resolution . We have TN and IPS material display screens to choose from. Both general brightness and high-brightness schemes are available. Air-bonding and optical-bonding process can be selected according to the actual needs of customer projects.

    Model Number HX1561704 V2.0
    Brand Grahowlet
    Size 15.6 inch
    Interface Type USB/IIC
    Structure G+G
    Controller IC ILITEK
    Touch Points 10 points
    Transparency ≥85%
    Surface Hardness ≥6H
    Operating Environment -20℃ ~ 70℃,≤85% RH
    Storage Environment -30℃ ~ 80℃,≤85% RH
    Power Supply Voltage 5V
    Outline Dimension 389.00(W)x237.05(H)x2.00(D) mm
    Viewing Area 345.43(W)x194.74(H) mm
    Support Systems Windows/Android/Linux etc.
    Warranty 1 year

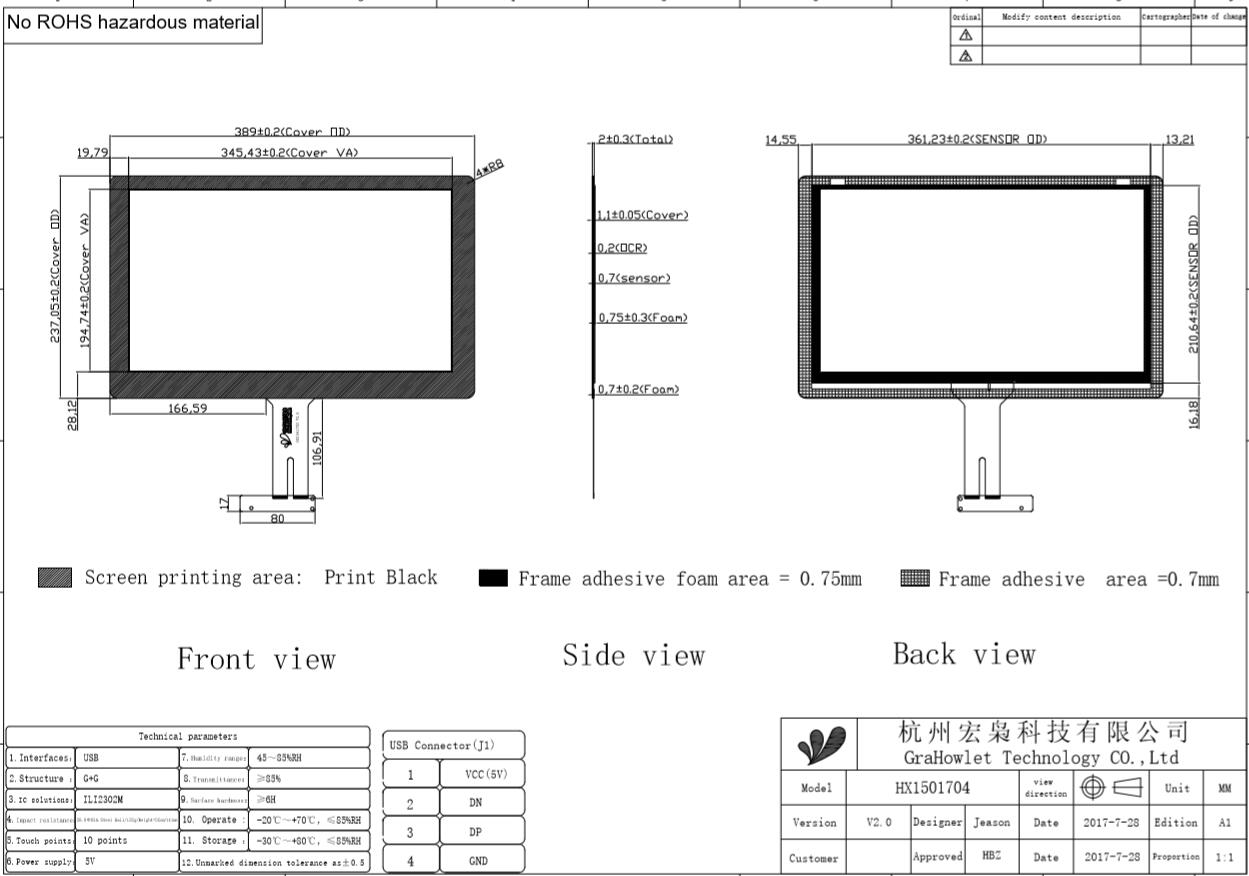

    15.6 inch transparent touch screen - drawing
