15.6 inch tft lcd touch screen module

Short Description:


  • Min.Order Quantity: 1 Piece/Pieces ( just for sample order )
  • Supply chain: at least 3~5 years
  • Payments: VISA,Pay Latre,L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal/cash payments etc.
  • Shipping: Support Express/Sea freight/Land freight/Air freight
  • Customization: Customized Shape/logo/packaging, etc
  • Product Detail

    Product Tags

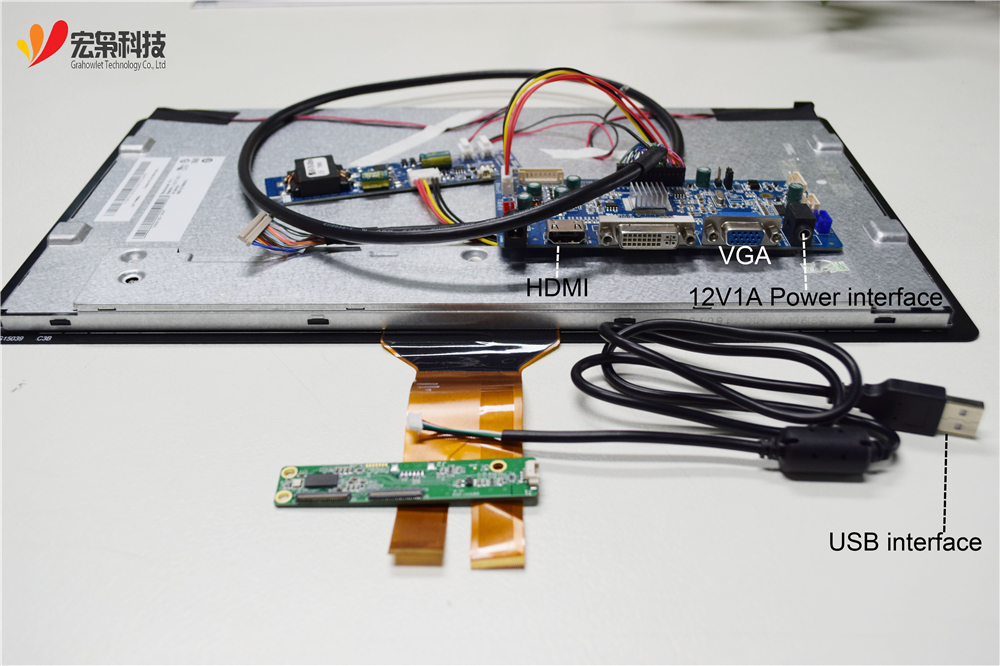

         The 15.6 inch tft lcd touch screen moduleair bonding and optical bonding optional, mainly used in medical electronics, intelligent security, advertising terminals, financial terminals and other fields, support customization of structures, surface treatment AG AR AF and other special effects ;Capacitive touch screen iic/usb/rs232 interface optional, display can be based on customer needs and match different interface conversion board

    TPM          Model Number HX1561707
    Brand Grahowlet
    Size 15.6  inch
    Operating Temperature -10℃ ~ 70℃
    Storage Temperature -20℃ ~ 70℃

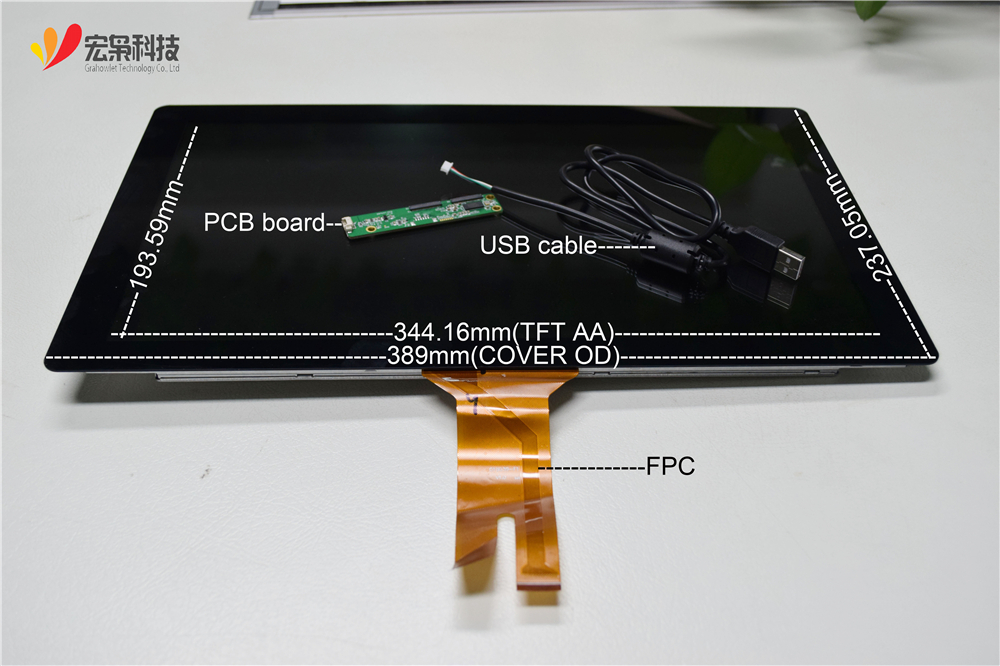

    Outline Dimension 389.00(W)x237.05(H)x14.75(D) mm
    Viewing Area 345.43(W)x194.74(H) mm
    Active Area 344.16(W)x193.59(H) mm
    Support Systems Windows/Android/Linux etc.
    Warranty 1 year
    CTP       Interface Type USB
    Material/Structure G+G
    Controller IC ILITEK
    Touch Points 10 points
    Transparency ≥85%
    Surface Hardness ≥6H
    Power Supply Voltage 5V
    TFT    Resolution 1920x1080
    Interface Type LVDS/HDMI/RGB
    Luminance 400 cd/m²
    Viewing Angle 80/80/70/70

    15.6 inch tft lcd touch screen module 15.6 inch tft lcd touch screen module
