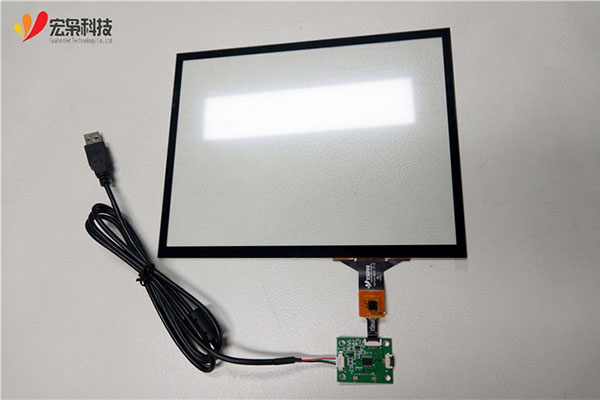

10.4 inch PCAP touch panel

Short Description:

  • Min.Order Quantity: 1 Piece/Pieces ( just for sample order )
  • Supply chain: at least 3~5 years
  • Payments: VISA,Pay Latre,L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal/cash payments etc.
  • Shipping: Support Express/Sea freight/Land freight/Air freight
  • Customization: Customized Shape/logo/packaging, etc
  • Product Detail

    Product Tags

         The 10.4 inch PCAP touch panelIndustrial applications, strong impact resistance, touch with USB interface, GG structure mainly used in industry, smart home appliances, advertising terminals, intelligent security and other fields, touch screen structure and surface special effects can be customized according to customer needs.

    Model Number HX1041803
    Brand Grahowlet
    Size 10.4 inch
    Operating Temperature -20℃ ~ 70℃
    Storage Temperature -30℃ ~ 80℃

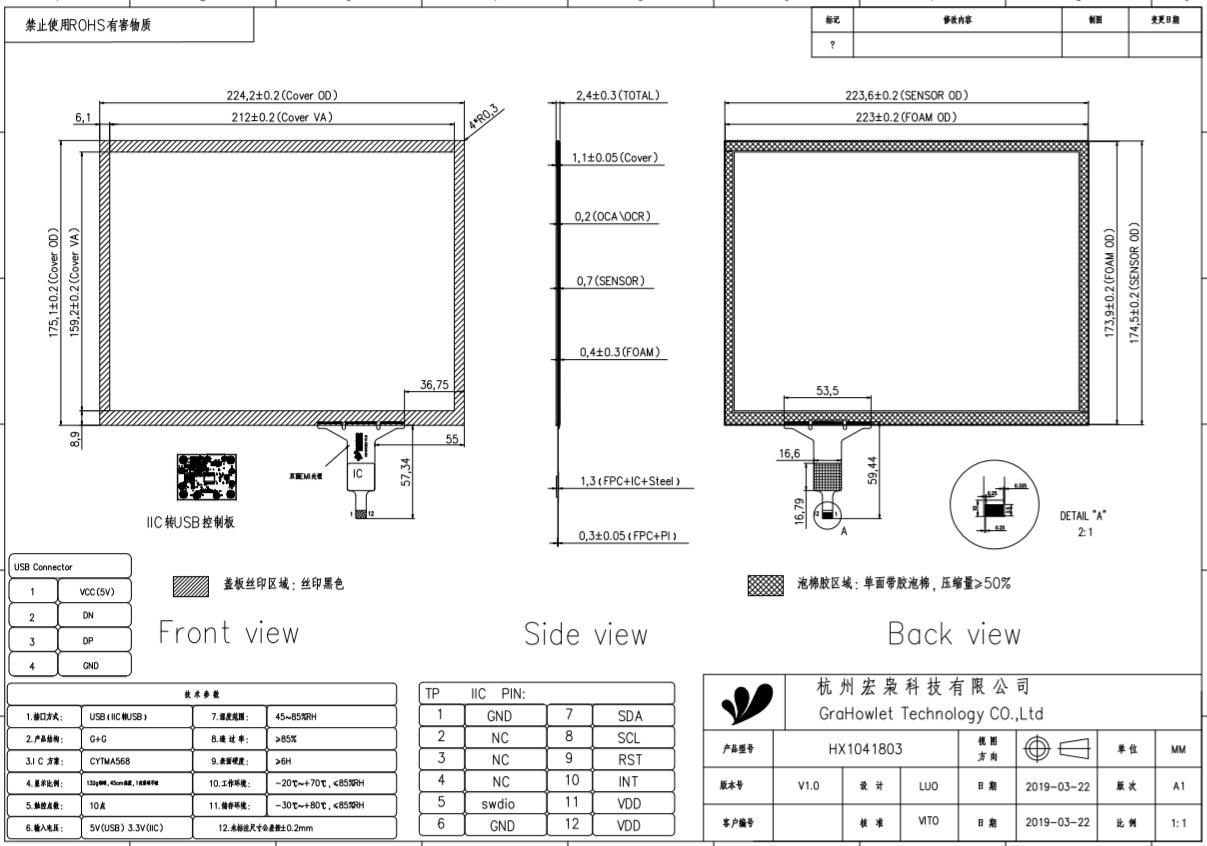

    Outline Dimension 224.20x175.10x2.4 mm
    Viewing Area 212.20x159.20 mm
     Support Systems Windows/Android/Linux etc.
    Light Transmittance ≥85%
    Surface Hardness ≥6H
    Interface Type IIC/USB
    Structure G+G
    Controller IC CYPRESS
    Touch Points 1-10 Points
    Power Supply Voltage  3.3V/5.0V

    10.4 inch pcap touch panel
